24
4
USING DIFFERENT OPERATING MODES
BLANK
1
4
CH
VFOA
ANT
AGCAMP
P.
SWR
ALC
Po
S
1
20 50
3
3211.5
579 20 40 60
100%
NAR
1
1
F
CW
001
SND
M1M2M3M4 -1
F2
UR5NN001B001
SND
M1M2M3M4 -1
F1 F3 F4 F5
CQTESTCQ001
SND
M1M2M3M4 -1
[
]
CQTESTCQ001
SND
M1M2M3M4 -1
F1
Sending contents of F1(M1) to F4(M4)
M2 send indication
M1 send indication
Repeat send indication
repeat indicators
Count up
trigger indicator
Count down indicator
UR5NN001B001
SND
M1M2M3M4 -1
F2
M1M2M3M4 -1
CFMTU002
SND
F3
M1M2M3M4 -1
QRZ?002
SND
F4
M3 send indication
M2 send indication
M4 send indication

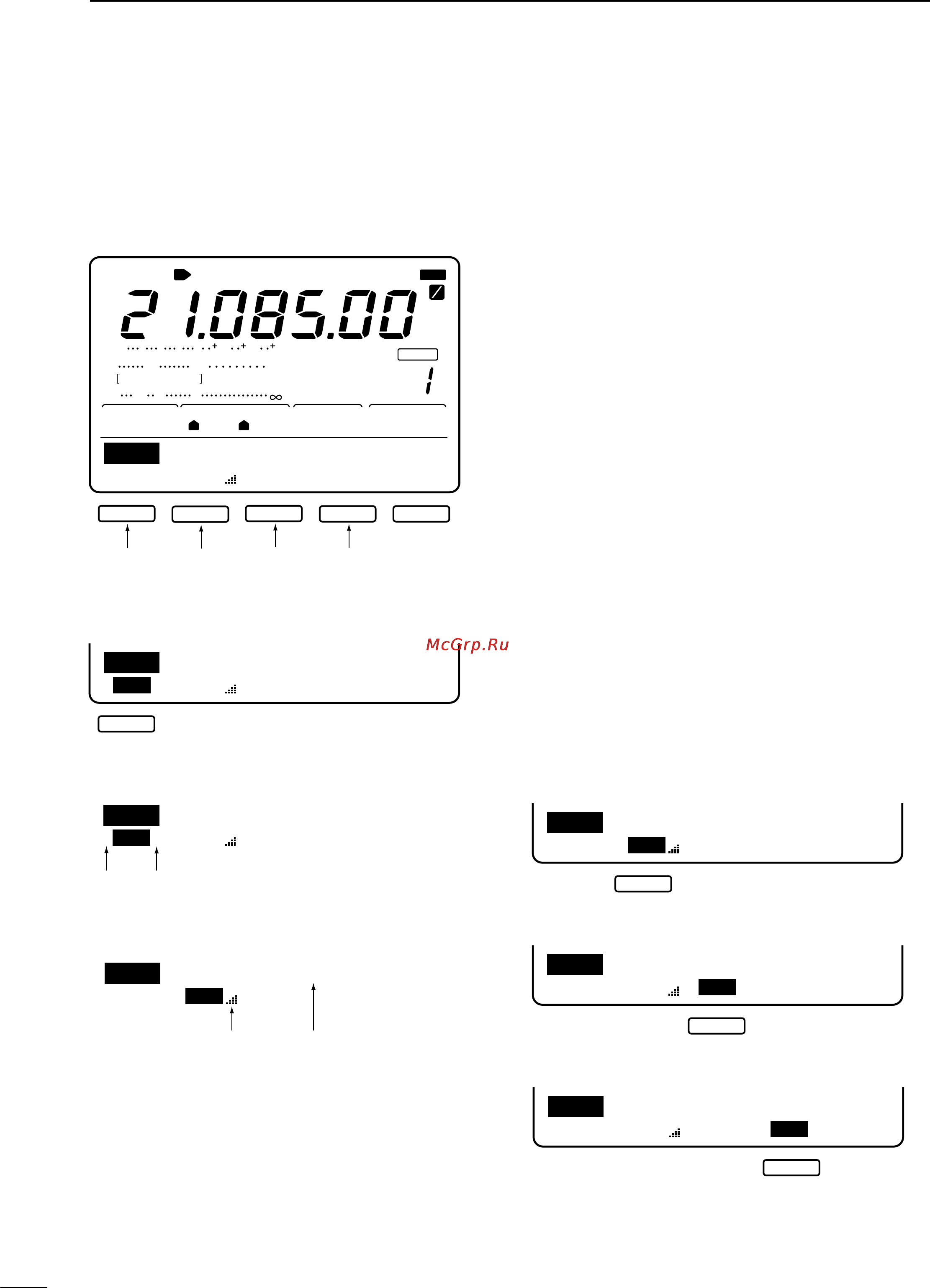

(2) Memory keyer send menu
Pre-set characters can be sent using the memory
keyer send menu. Contents of the memory keyer are
set using the edit menu.
➀ Push [TRANSMIT] to set the transceiver to transmit,
or set the break-in function ON (p. 44).
• When the transceiver is in receive, step ➁ monitors the
memory keyer contents, but does not transmit them.
➁ Push one of the function keys ([F1] to [F4]) to send
the contents of the memory keyer.
• The currently active memory keyer contents is indicated
by a triangle beside it.
• Pushing a function key for 2 sec. repeatedly sends the
contents; push any function key to cancel the transmis-
sion.
• The contest number counter, above [F5], is incremented
each time the contents are sent.
• The contest number trigger can be set in the contest
number menu.
• Push [F5] to manually increment the contest number.
➂ Push [MENU] 2 times to return to M1.
