BATTERY PACKS

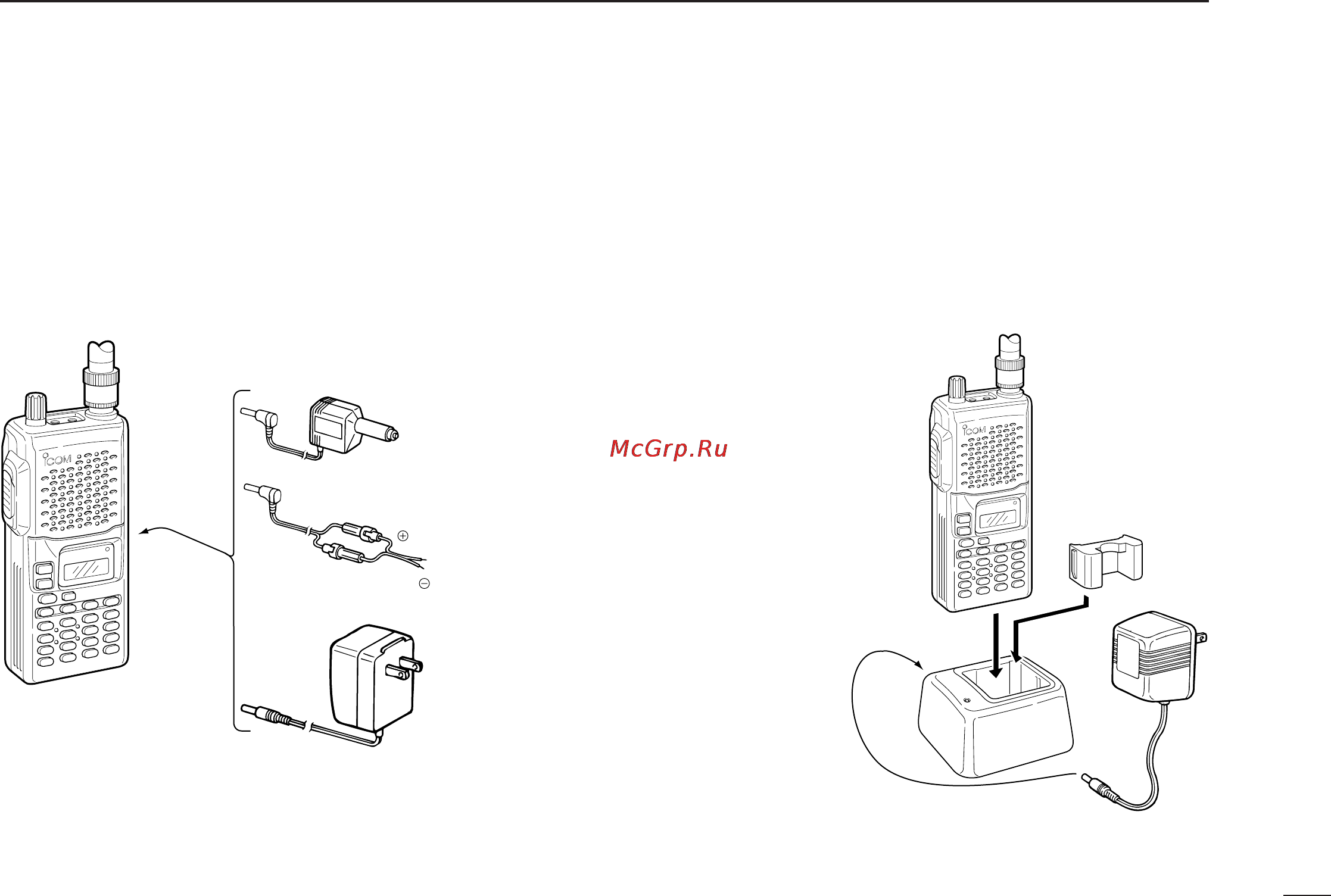

■ Charging connections
D Regular charging
When charging a battery case (pack) attached to the trans-
ceiver the power must be OFF.
D Rapid charging with the BC-119
The optional BC-119 provides rapid charging of optional
Ni-Cd battery packs (power to the transceiver must be OFF
during charging). The following are additionally required:
• AD-81
• An AC adapter (may be supplied
with the BC-119 depending
on version).
Transceiver with
attached
battery case
(pack)
BC-110A/D/V*
CP-12L
(optional)
OPC-254L
(optional)
To a 13.5
to 16 V DC
power source
To
[CHARGE]
white
black
Charging periods:
15 hours (w/BP-195)
20 hours (w/BP-196)
Charging periods:
1 hour (w/BP-195)
1.5 hours (w/BP-196)
*Not supplied with some versions.
