BASIC OPERATION

■ Dial select function

Use the dial select function to adjust the tuning behaviour or

the [

Y]/[Z] keys—use 1 MHz tuning when you want to

change the frequency in large increments; use the selected

tuning step when you want to change the frequency in smaller

increments.

➀ Push [t] one or more times to

select the desired [

Y]/[Z] key

tuning increment.

• 1 MHz tuning, 100 kHz tuning or

regular tuning steps can be selected

(see diagram at right).

➁ Release [t] to return to normal operation.

■ Receive and transmit

➀ Rotate [PWR/VOL] clockwise to turn power ON.

➁ Adjust volume to the desired level.

• While pushing [ ], rotate [VOL].

➂ Set a frequency.

When a signal is received:

➥ Squelch opens and audio is emitted from the speaker.

➥ “BUSY” appears and the S/RF indicator shows the relative sig-

nal strength.

➃ Push [H/L] to toggle output power between high and low.

•“LOW” appears when low output power is selected.

➄ Push and hold [PTT] to transmit; then speak into the mi-

crophone.

• Do not hold the microphone too close to your mouth or speak

too loudly. This may distort the signal.

• The TX indicator lights red.

• The S/RF indicator shows the output power selection.

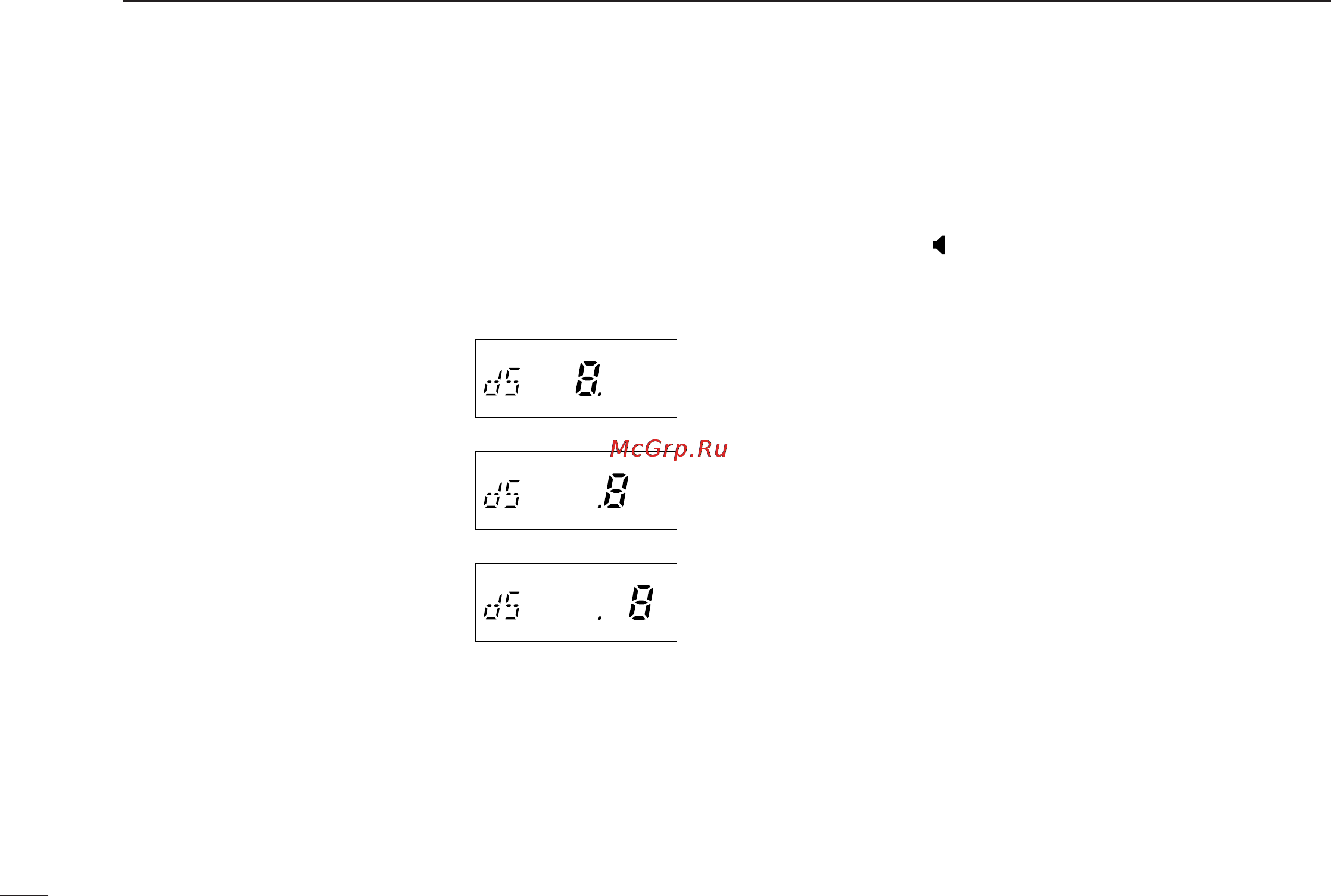

1 MHz tuning selected

100 kHz tuning selected

Regular tuning selected
