ACCESSORY ATTACHMENT
D Antenna

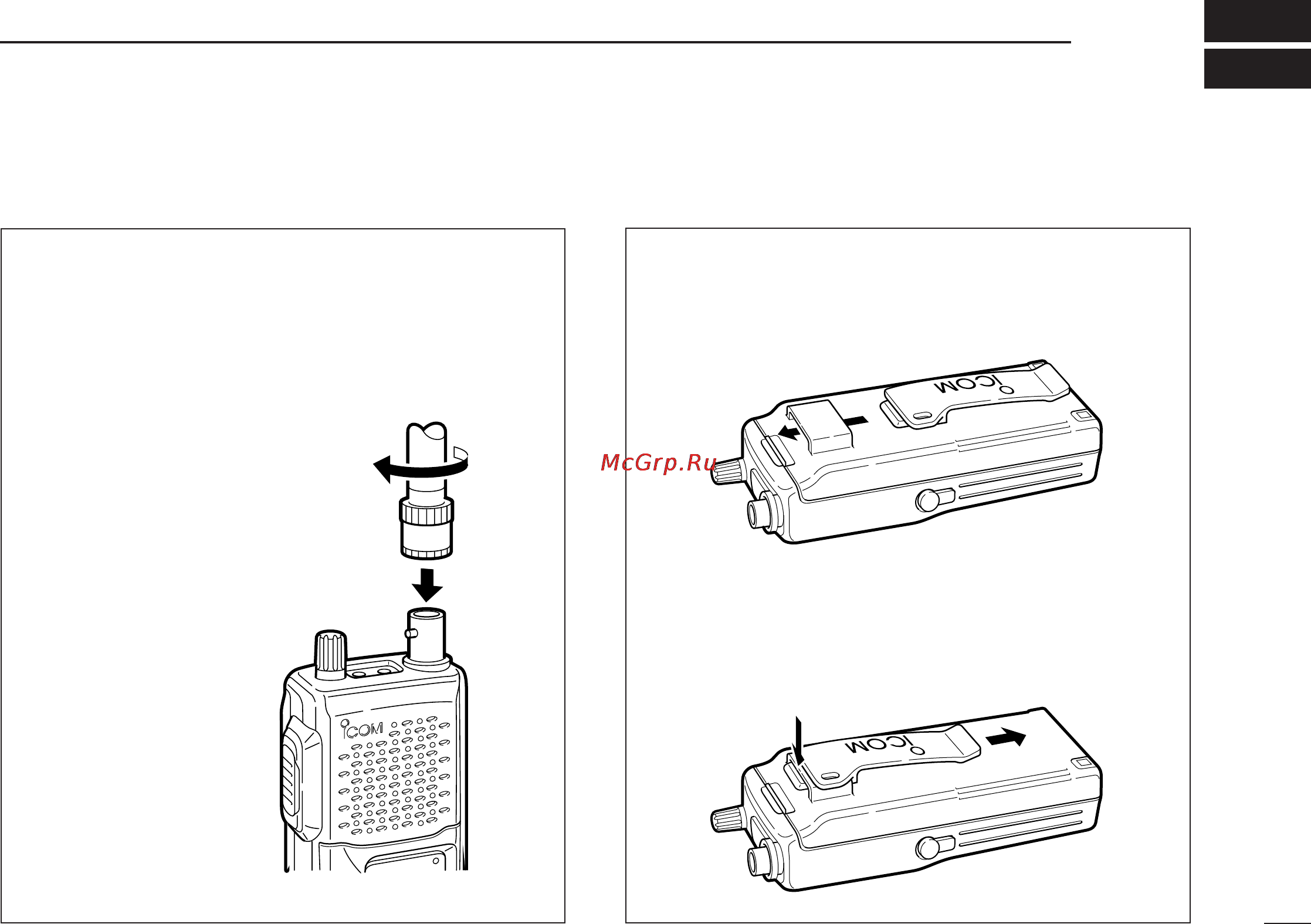

Connect the supplied flexible antenna to the antenna con-
nector and rotate the antenna clockwise.
u CAUTION: Transmitting without an antenna may
damage the transceiver.
D Belt clip
To attach:
Slide the belt clip into the plastic loop on the back of the
battery case/pack.
To remove:
Push the top of the belt clip towards the transceiver and at
the same time, push it downwards and free of the plastic
loop.
