Icom IC-T2H [15/50] Basic operation
![Icom IC-T2H [15/50] Basic operation](/views2/1074440/page15/bgf.png)
11
4
BASIC OPERATION

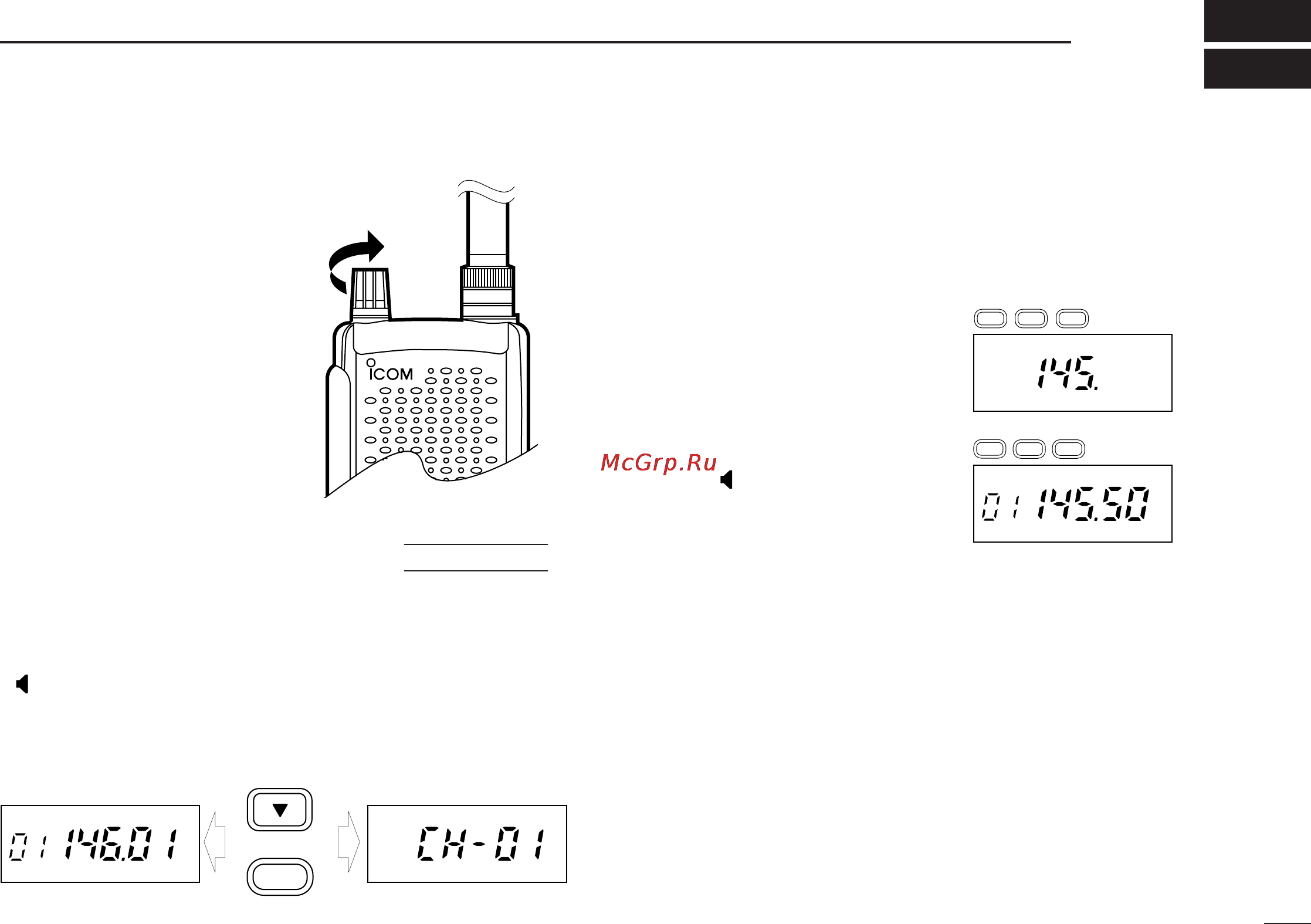

■ Setting a frequency
D Via the keypad
➀ Push [A V] to select VFO mode, if
necessary.
➁ Push 6 digit keys, starting from
the 100 MHz digit, to input a fre-
quency.
• Push the [M] key first to start input
from the 100 kHz digit, if desired.
• When a digit is mistakenly input,
push [ ] and input from the begin-
ning.
•“2” and “7” are acceptable for the 1
kHz digits (depending on the 10 kHz digit).
D Using the [Y]/[Z] keys
Each push increments/decrements the frequency according
to the selected tuning step (see right), except when the 100
kHz or 1 MHz dial select step is selected (see following
page). When a dial select step is selected, each push incre-
ments/decrements the frequency either 100 kHz or 1 MHz.
■ Power ON
Rotate [PWR/VOL] clockwise
to turn power ON.
D Toggling frequency/channel
indication mode
Channel indication mode is used to simplify operation. In this
mode only pre-programmed memory channel numbers are
displayed and functions are limited ([PWR/VOL], [
D L], [PTT],
[ ], [H/L] and [SC] are functional).
To toggle between the indication modes:
While pushing [Z] + [0], rotate [PWR/VOL] to turn power ON.
Frequency indication Channel indication
at power ON
0
AT
POWER ON
MR
MR
0 0
5
54
1
IC-T2H Manual 01.12.5 4:31 PM Page 11 (1,1)
