BASIC OPERATION
■ Notes for “Set mode”
The following items can be set from VFO mode.
Set mode items:
Tuning steps (p. 14)
Duplex setting (p. 15)
Repeater tones (p. 16)
Offset frequency (p. 16)
Subaudible tones (p. 16)
Call channel (p. 20)
CTCSS tones (p. 26)
When setting items from memory mode, input data will dis-
appear when changing memories or turning power OFF.
Please select VFO mode before entering set mode, and read
the instructions for each set mode item carefully.
To turn set mode ON and OFF:
➀ Push [A V] or [
f
(CALL)]* for 1 sec. to enter set mode.
➁ Push [t] one or more times to select the item.
➂ Push the [Y/Z] keys to select the desired value.
➃ Push [A V] or [
f
(CALL)]* to exit set mode.
■ Setting tuning
steps
The transceiver has 8 tuning steps as follows:
5 kHz 10 kHz 12.5 kHz 15 kHz
20 kHz 25 kHz 30 kHz 50 kHz
➀ Push [A V] or [
f
(CALL)]* for 1 sec. to enter set mode.
➁ Push [t] one or more times to select the tuning step item.
➂ Push the [Y/Z] keys to select the desired tuning step.
➃ Push the same key used in step ➀ above to enter the tun-
ing step and exit set mode.
For convenience, select a tuning step that matches the fre-
quency intervals of repeaters in your area.
*☞NOTE:
Selecting a tuning step is possible using one of the pro-
grammable key/switches when this function is assigned
using key customize mode (p. 31). In this case, pushing
[
f
(tS)] enters tuning step mode.
When pushing [ ] to exit set mode, any changes made
while in set mode are cancelled.
USING
SET MODE

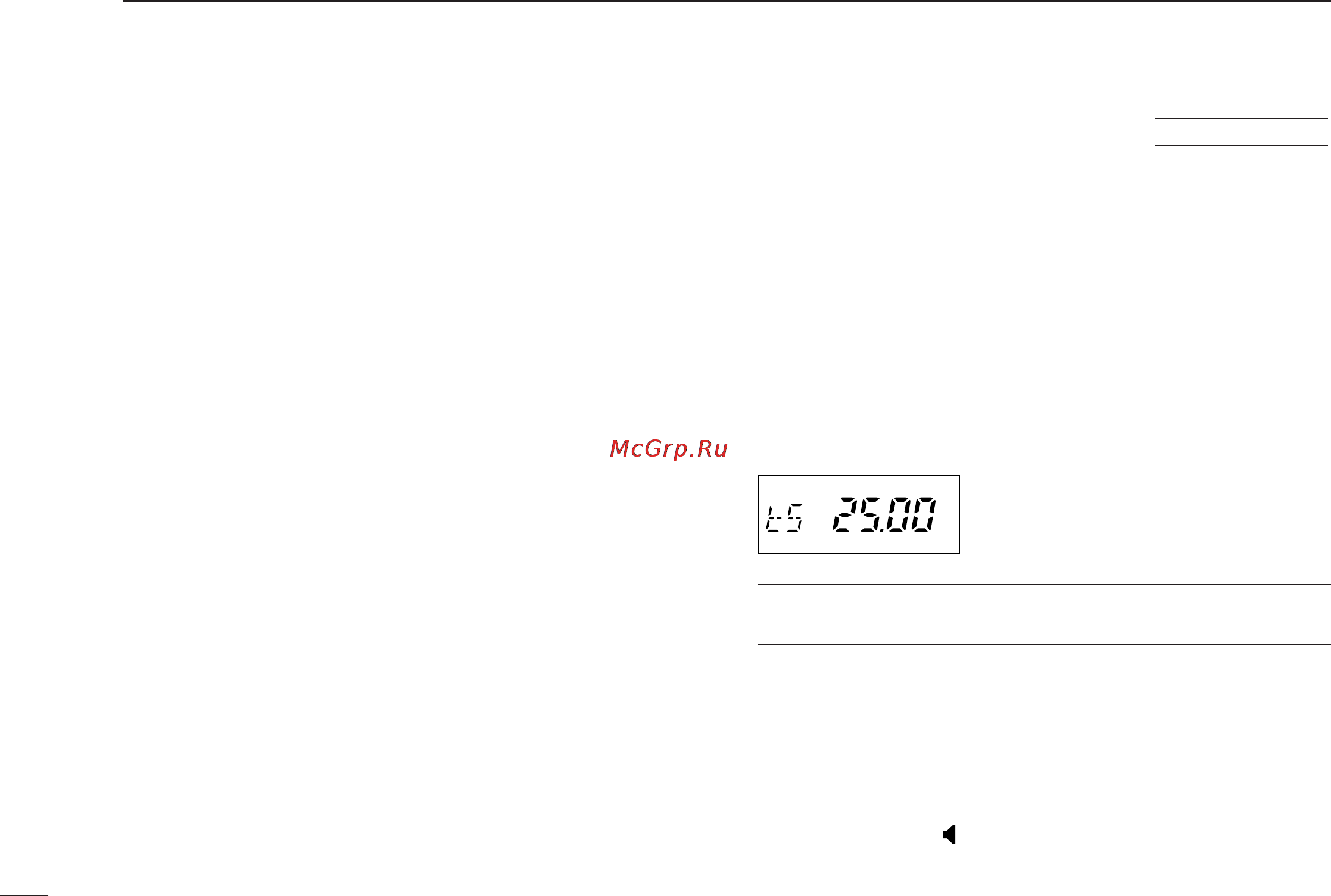

This display shows that a tuning step of 25
kHz is selected.
