REPEATER OPERATION
■ Subaudible tones
Some repeaters require subaudible tones to be accessed.
Subaudible tones are superimposed over your normal signal
and must be set in advance.
➀ Push [A V] for 1 sec. to enter set mode.
➁ Push [t] one or more times until
“RP” appears.
➂ Push [Y]/[Z] to select the desired
subaudible tone.
➃ Push [A V] to enter the selected
tone and exit set mode.
When set mode is selected from memory mode:
➄ Push [B M].
➅ Push [A V].
➆ Push [B M] for 1 sec.
Available subaudible tone frequencies (unit: Hz)
67.0 79.7 94.8 110.9 131.8 156.7 171.3 186.2 203.5 229.1
69.3 82.5 97.4 114.8 136.5 159.8 173.8 189.9 206.5 233.6
71.9 85.4 100.0 118.8 141.3 162.2 177.3 192.8 210.7 241.8
74.4 88.5 103.5 123.0 146.2 165.5 179.9 196.6 218.1 250.3
77.0 91.5 107.2 127.3 151.4 167.9 183.5 199.5 225.7 254.1
USING
SET MODE
T

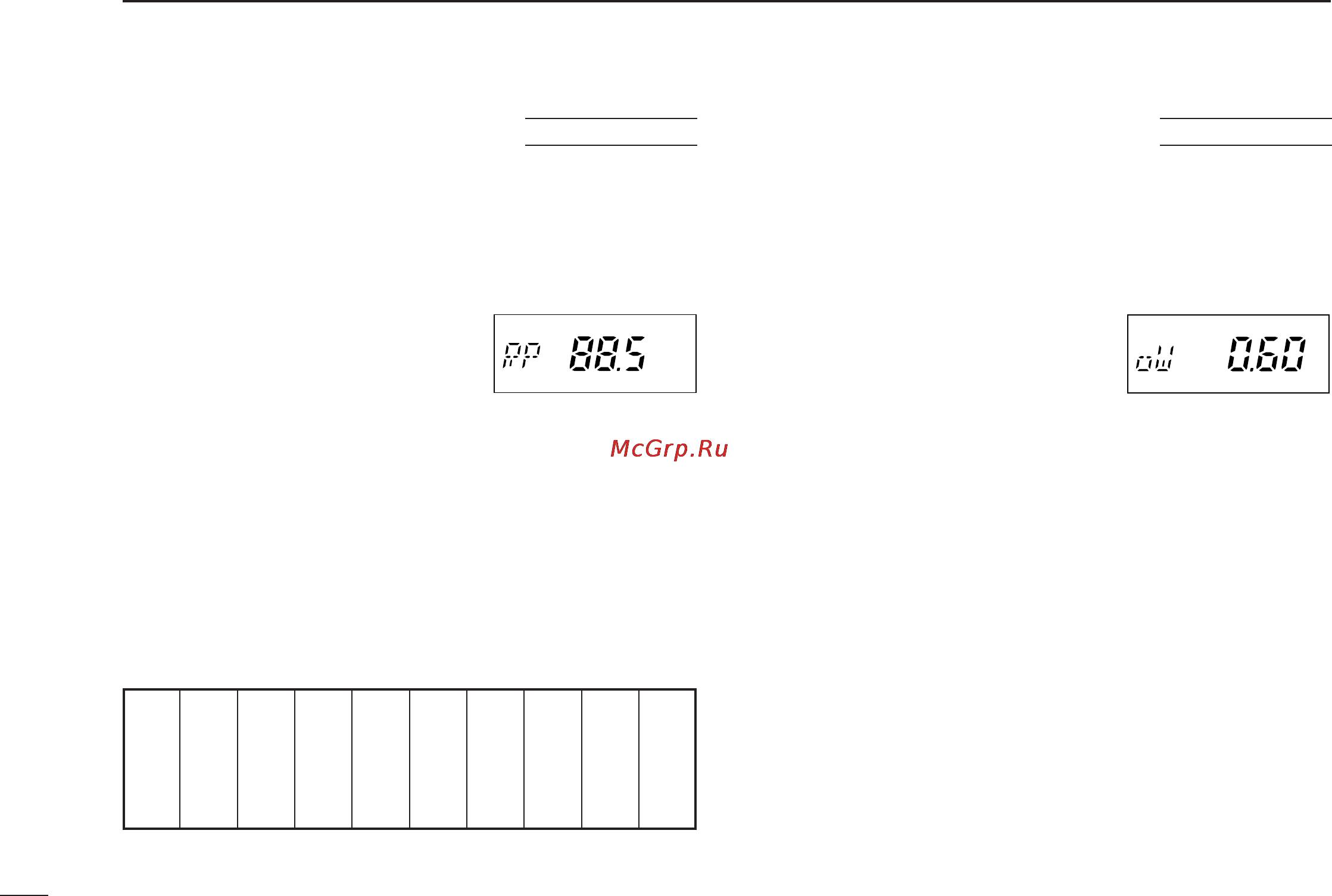

Subaudible tone of
88.5 Hz is selected.
■ Offset frequency
When communicating through a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
➀ Push [A V] for 1 sec. to enter set mode.
➁ Push [t] one or more times until
“oW” appears.
➂ Push [Y]/[Z] to select the desired
offset frequency.
• Selectable steps are the same as the
pre-set tuning steps.
➃ Push [A V] to enter the selected offset frequency and exit
set mode.
When set mode is selected from memory mode:
➄ Push [B M].
➅ Push [A V].
➆ Push [B M] for 1 sec.
USING
SET MODE
Offset frequency of
0.60 MHz is selected.
DUP
