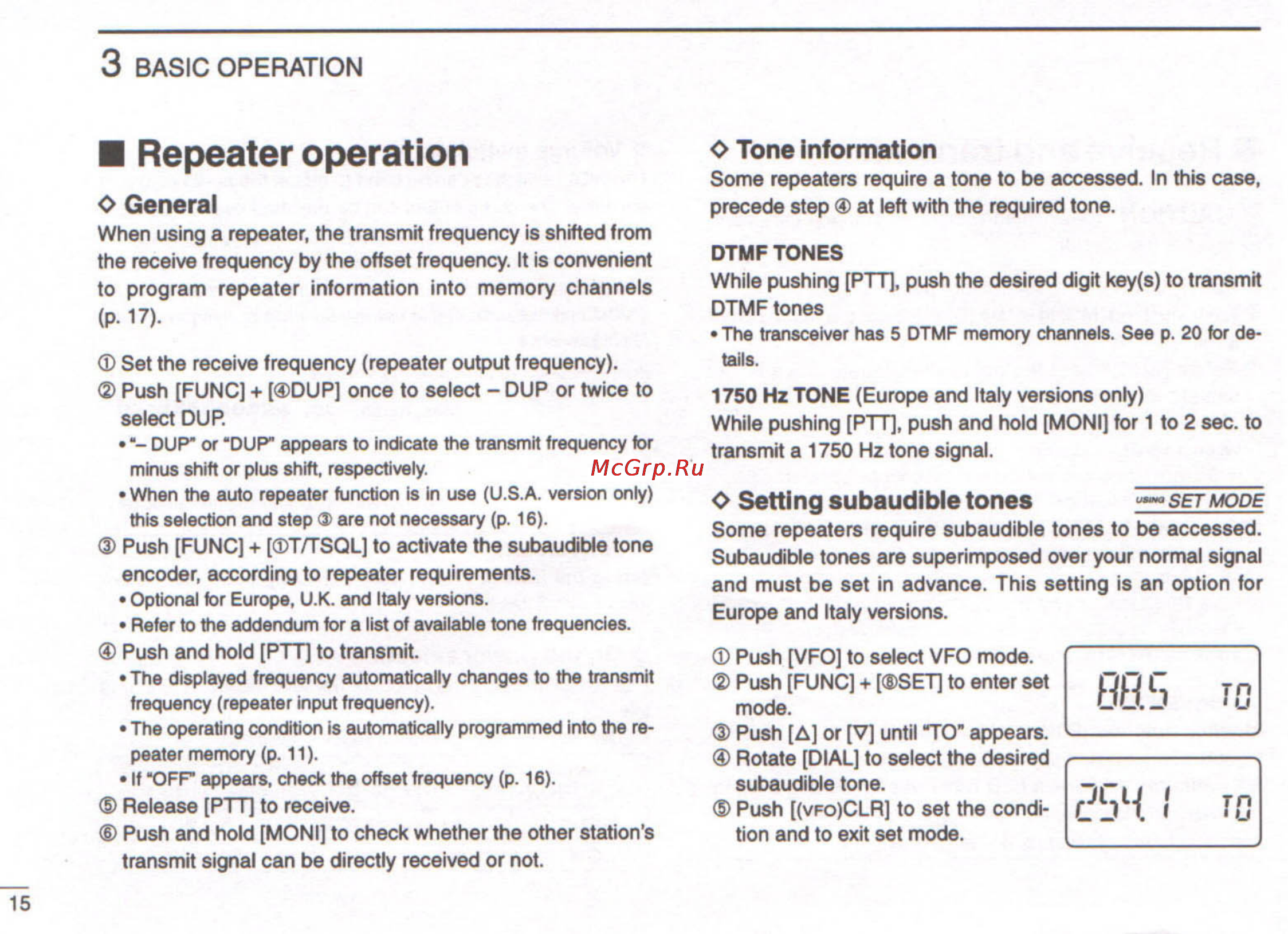

3 BASIC OPERATION Repeater operation O Tone information Some repeaters require a tone to be accessed In this case O General precede step at left with the required tone When using a repeater the transmit frequency is shifted from the receive frequency by the offset frequency It is convenient DTMF TONES to While pushing PTT push the desired digit key s to transm program repeater information into memory channels p 17 Set the receive frequency repeater output frequency 2 Push FUNC DUP once to select DUP or twice to select DUP DUP or DUP appears to indicate the transmit frequency for minus shift or plus shift respectively When the auto repeater function is in use U S A version only this selection and step are not necessary p 16 Push FUNC TTSQL to activate the subaudible tone encoder according to repeater requirements Optional for Europe U K and Italy versions Refer to the addendum for a list of available tone frequencies Push and hold PTT to transmit The displayed frequency automatically changes to the transmit frequency repeater input frequency The operating condition is automatically programmed into the re peater memory p 11 If OFF appears check the offset frequency p 16 Release PTT to receive Push and hold MONI to check whether the other station s transmit signal can be directly received or not 15 DTMF tones The transceiver has 5 DTMF memory channels See p 20 for de tails 1750 Hz TONE Europe and Italy versions only While pushing PTT push and hold MONI for 1 to 2 sec t transmit a 1750 Hz tone signal O Setting subaudible tones Some repeaters Subaudible tones require are subaudible superimposed SET MODE tones over to your be accessed normal signa and must be set in advance This setting is an option fo Europe and Italy versions Push VFO to select VFO mode Push FUNC SET to enter set mode Push or V until TO appears Rotate DIAL to select the desired subaudible tone Push VFO CLR to set the condi tion and to exit set mode 005 TO 054 I TO
