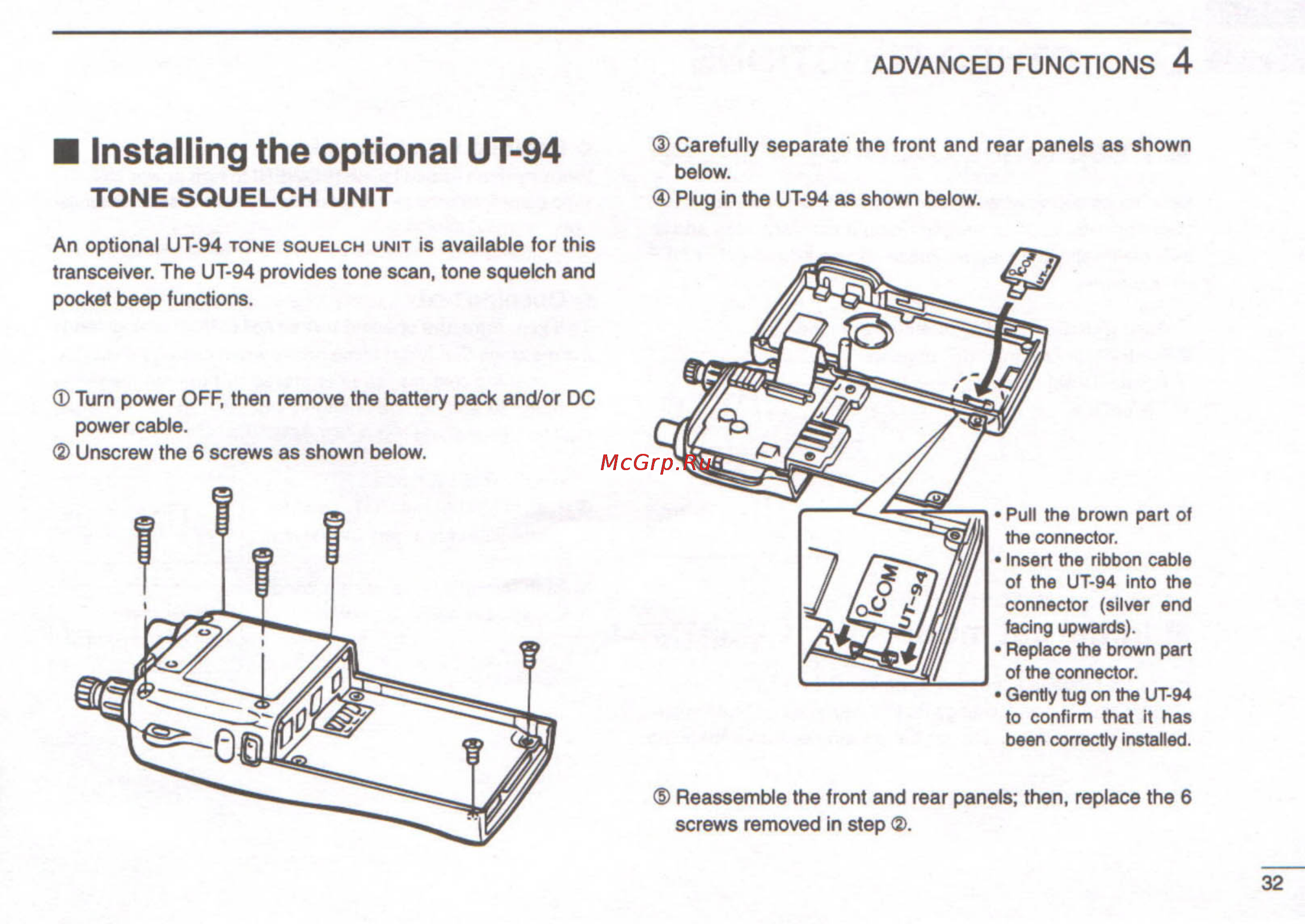

ADVANCED FUNCTIONS 4 Installing the optional UT 94 TONE SQUELCH UNIT An optional UT 94 TONE SQUELCH UNIT Carefully separate the front and rear panels as shown below Plug in the UT 94 as shown below is available for this transceiver The UT 94 provides tone scan tone squelch and pocket beep functions Turn power OFF then remove the battery pack and or DC power cable Unscrew the 6 screws as shown below Pull the brown part of the connector Insert the ribbon cable of the UT 94 into the connector silver end facing upwards Replace the brown part of the connector Gently tug on the UT 94 to confirm that it has been correctly installed Reassemble the front and rear panels then replace the 6 screws removed in step 2 32
