3
FREQUENCY AND CHANNEL SETTING
15
■ Using the tuning dial
D Frequency
q Assign the main band to the desired display with [MAIN].
w Select VFO mode with [VFO].
e Rotate the main band’s [DIAL] to change the frequency.
•The frequency changes according to the preset tuning steps.
See the next page for setting tuning steps.
•Push [(VFO)MHz] for 2 sec. then rotate [DIAL] to change the fre-
quency in 1 MHz steps. Push [VFO] again to return to regular
tuning steps.
D Memory channels
q Assign the main band to the desired display with [MAIN].
w Select memory mode with [MR].
e Rotate the main band’s [DIAL] to change the indicated
memory channel.
•Only programmed memory channels can be selected.
MAIN
75
50
25
MAIN

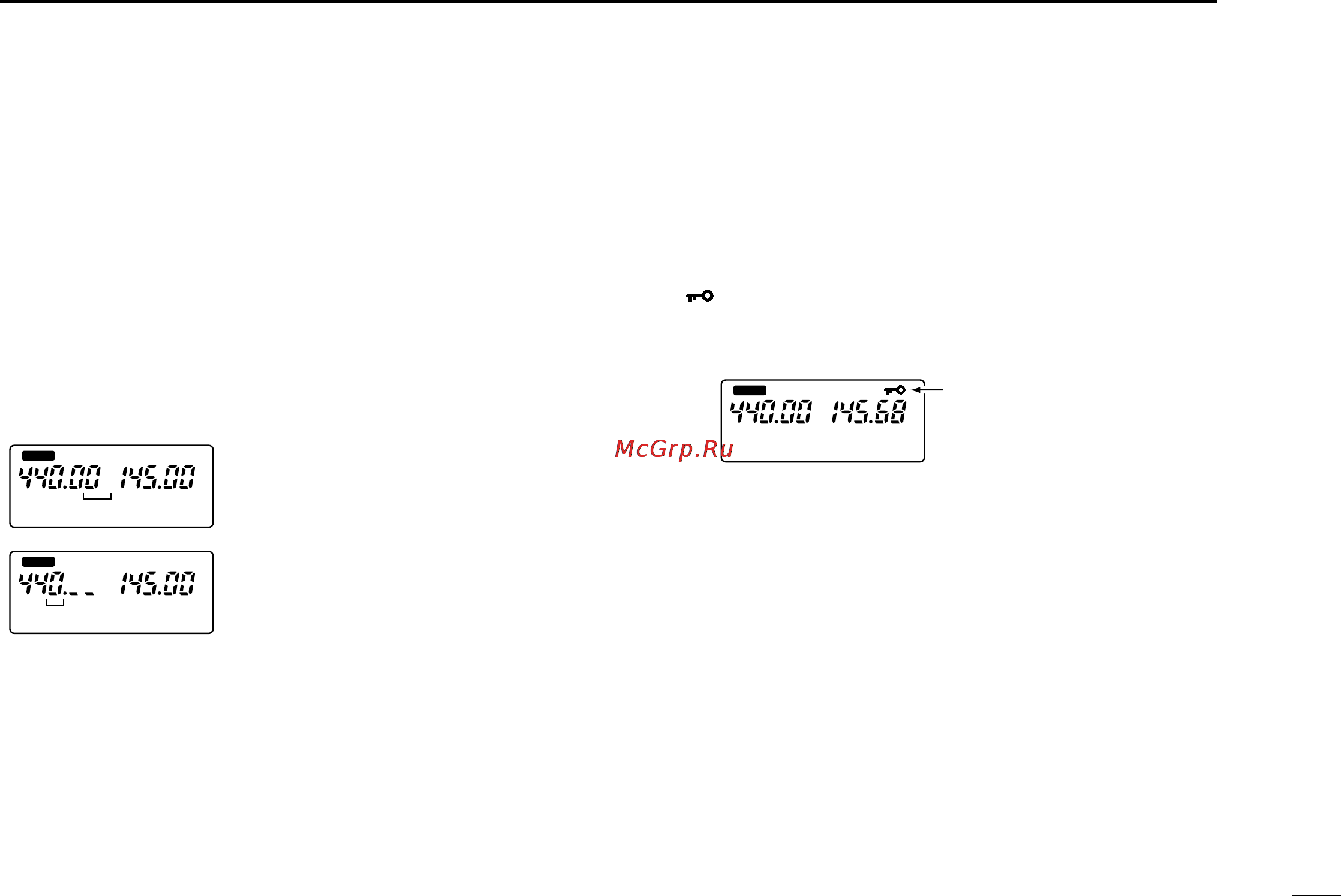

[DIAL] changes the frequency
according to the selected tuning step.
After pushing [
(VFO)MHz] for 2 sec.,
[DIAL] changes the frequency in 1 MHz
steps.
■ Lock function
The lock function prevents accidental frequency changes and
accidental function access.
➥Push [
(CALL)LOCK] for 2 sec. to toggle the lock function ON
and OFF.
•“ ” appears while the lock function is activated.
•[POWER], [VOL], [SQL], [PTT], [L/G] and [H/L] can still be ac-
cessed while the lock function is ON.
MAIN
Appears when the
lock function is in use.
