■ Subaudible tones
Some repeaters require subaudible tones to be accessed.
Subaudible tones are superimposed over your normal signal
and must be set in advance.
5
REPEATER OPERATION
20
■ Offset frequency
When communicating through a repeater, the transmit fre-
quency is shifted from the receive frequency by an amount
determined by the offset frequency.
q Push [
(H/L)SET] for 2 sec. to enter set mode.
w Push [
(H/L)(SET)J] or [(TONE)K] several times until “RT”
appears as shown above.
e Rotate [DIAL] to select the desired subaudible tone.
•Each operating band for each display and each memory chan-
nel have independent settings.
r Push [(
VFO
)CLR] to set the condition and to exit set
mode.
USING
SET MODE

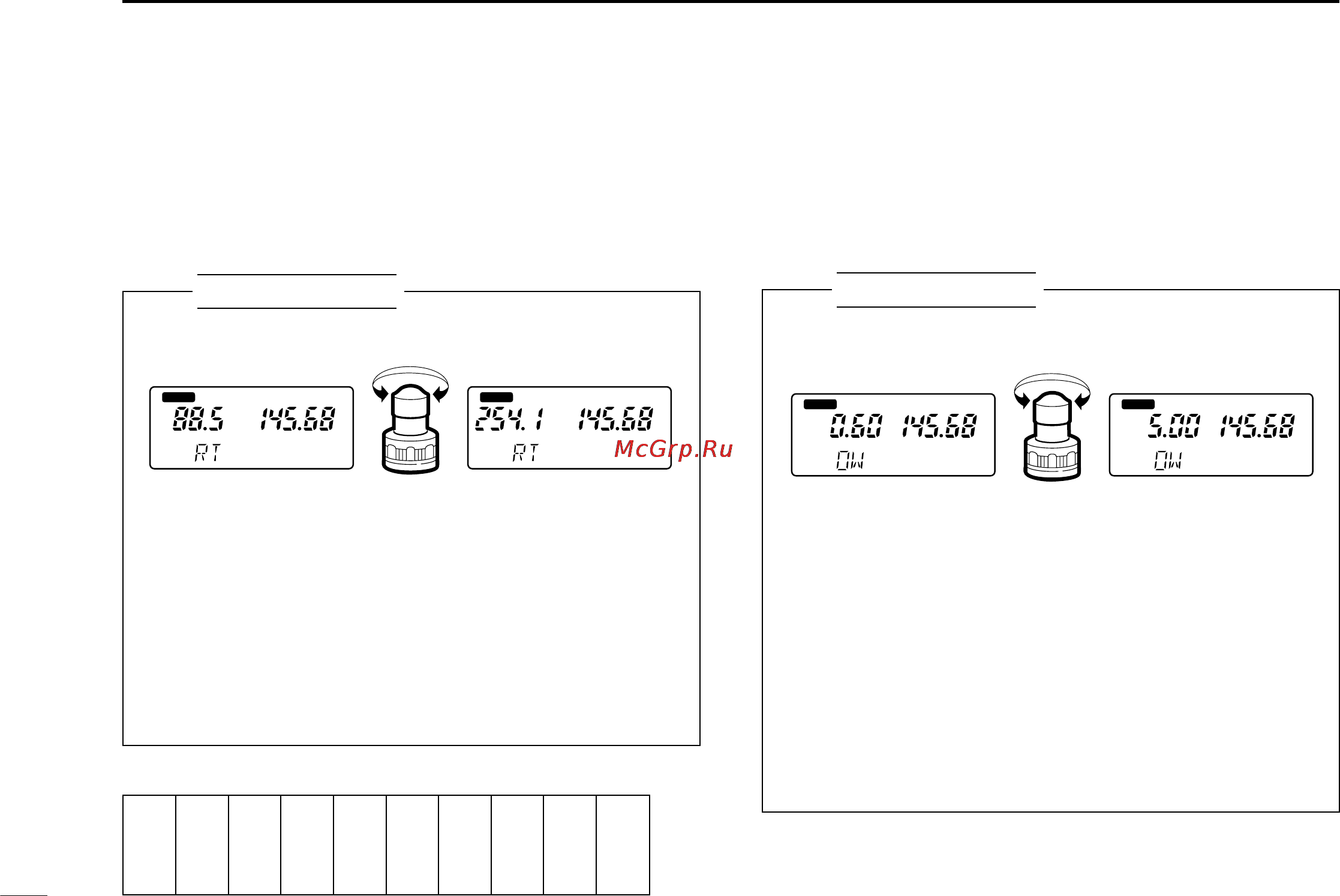

88.5 Hz tone 254.1 Hz tone
MAIN
T
MAIN
T
SETTING AN OFFSET FREQUENCY
q Push [VFO] to select VFO mode.
w Push [
(H/L)SET] for 2 sec. to enter set mode.
e Push [
(H/L)(SET)J] or [(TONE)K] several times until “OW”
appears as shown above.
r Rotate [DIAL] to select the desired offset (separately se-
lectable for each band).
•Pushing [(VFO)MHz] for 2 sec. selects MHz steps.
t Push [(
VFO
)CLR] to set the condition and to exit set
mode.
USING
SET MODE
0.6 MHz (600 kHz) offset 5.0 MHz offset
MAIN MAIN
67.0
69.3
71.9
74.4
77.0
79.7
82.5
85.4
88.5
91.5
94.8
97.4
100.0
103.5
107.2
110.9
114.8
118.8
123.0
127.3
131.8
136.5
141.3
146.2
151.4
156.7
159.8
162.2
165.5
167.9
171.3
173.8
177.3
179.9
183.5
186.2
189.9
192.8
196.6
199.5
203.5
206.5
210.7
218.1
225.7
229.1
233.6
241.8
250.3
254.1
•Subaudible tone frequency list (Unit: Hz)
SETTING SUBAUDIBLE TONES
