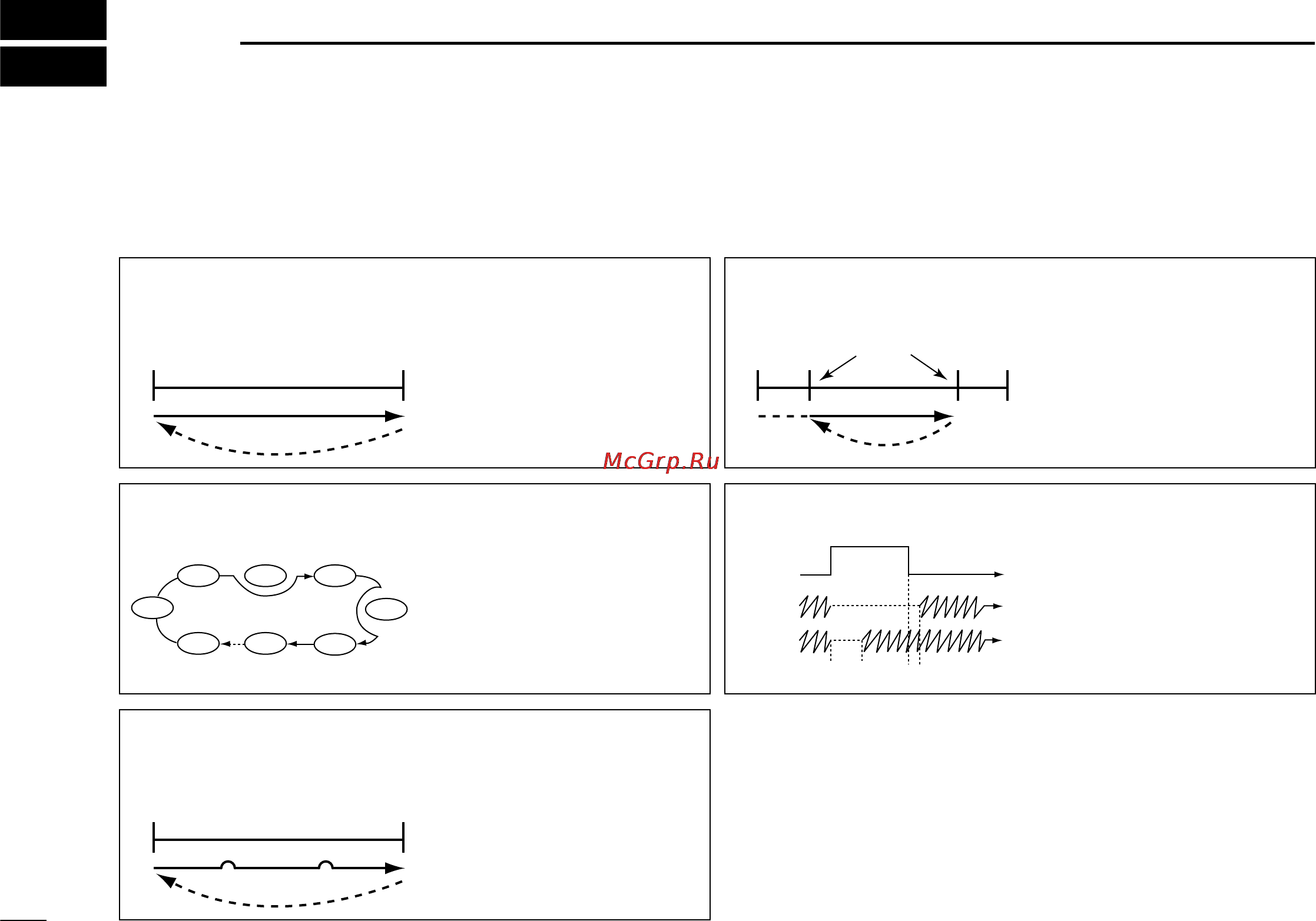

SCAN OPERATION
8
28
FULL SCAN (p. 29)
Repeatedly scans all fre-
quencies over the entire
band.
PROGRAMMED SCAN
(p. 29)
Repeatedly scans between
two user-programmed fre-
quencies. Used for check-
ing for frequencies within a
specified range such as
repeater output frequen-
cies, etc.
SCAN RESUME CONDITION
(p. 30)
4 resume conditions are
available: pause scan and
3 timer scans. When
receiving a signal, pause
scan pauses until the sig-
nal disappears; timer scans
pause for 5, 10 or 15 sec.
Band
edge
Band
edge
Scan
Jump
Band edge or
scan edge
Band edge or
scan edge
FREQUENCY SKIP
FUNCTION (p. 31)
Skips unwanted frequen-
cies that inconveniently
stop scanning. This func-
tion can be turned ON and
OFF in scan set mode.
Band
edge
Band
edge
Scan
Jump
Scan edges
MEMORY SKIP SCAN (p. 29)
Repeatedly scans memory
channels except skip
channels.
Not yet
programmed
SKIP
Mch 0
Mch 1 Mch 2 Mch 3
Mch 4
Mch 5
Mch 6Mch 99
Pause
scan
Receiving
a signal
Timer
scan
Pausing 2 sec.
Jump
Skip Skip
Scan
Each band has 3 scan types with skip functions and 4 resume
conditions providing scanning versatility. Scans on both bands
can be operated separately or simultaneously.
■ Scan types
