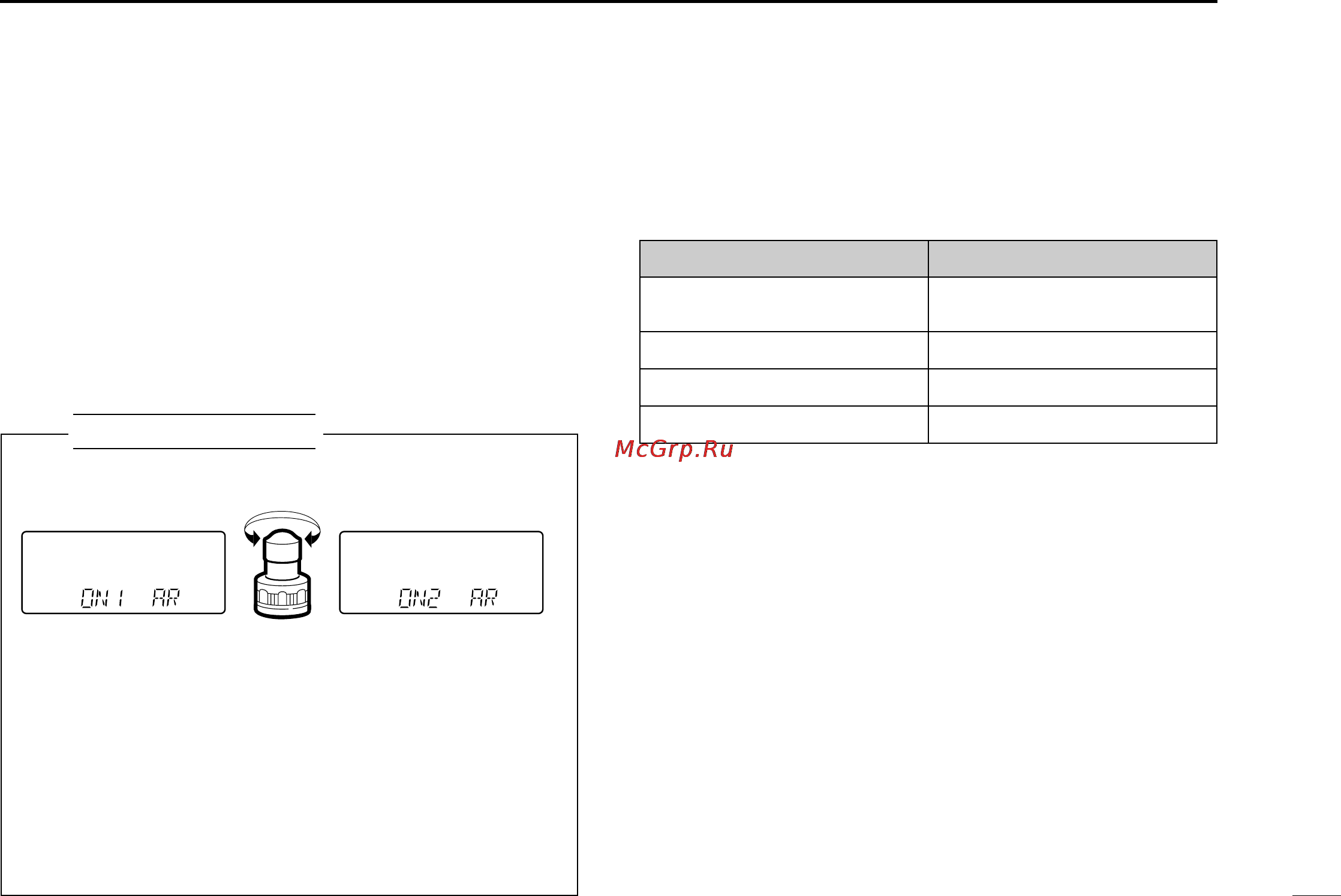

■ Auto repeater function
(U.S.A. version only)
The U.S.A. version automatically activates the repeater set-
tings (duplex ON/OFF, duplex direction, tone encoder
ON/OFF) when the operating frequency falls within or outside
of the general repeater output frequency range. The offset
and repeater tone frequencies are not changed by the auto
repeater function, reset these frequencies, if necessary.
5
REPEATER OPERATION
21
SETTING THE AUTO REPEATER FUNCTION
q Turn power ON while pushing [
(H/L)SET] to enter initial
set mode.
w Push [
(H/L)(SET)J] or [(TONE)K] several times until “AR”
appears as shown above.
e Rotate [DIAL] to turn the auto repeater function ON
(“ON1” and “ON2”) or OFF.
r Turn power OFF to exit initial set mode.
USING
Initial set mode
Activates for duplex only.
Activates for duplex and tone.
•Frequency range and offset direction
FREQUENCY RANGE DUPLEX DIRECTION
145.200–145.495 MHz
146.610–146.995 MHz
“–DUP” appears
147.000–147.395 MHz “DUP” appears–
442.000–444.995 MHz “DUP” appears–
447.000–449.995 MHz “–DUP” appears
