Icom IC-F121S [16/20] I antenna
![Icom IC-F121S [16/20] I antenna](/views2/1074519/page16/bg10.png)
13
3
CONNECTION AND MAINTENANCE
■ Antenna
A key element in the performance of any communication sys-
tem is an antenna. Ask your Dealer about antennas and the
best places to mount them.

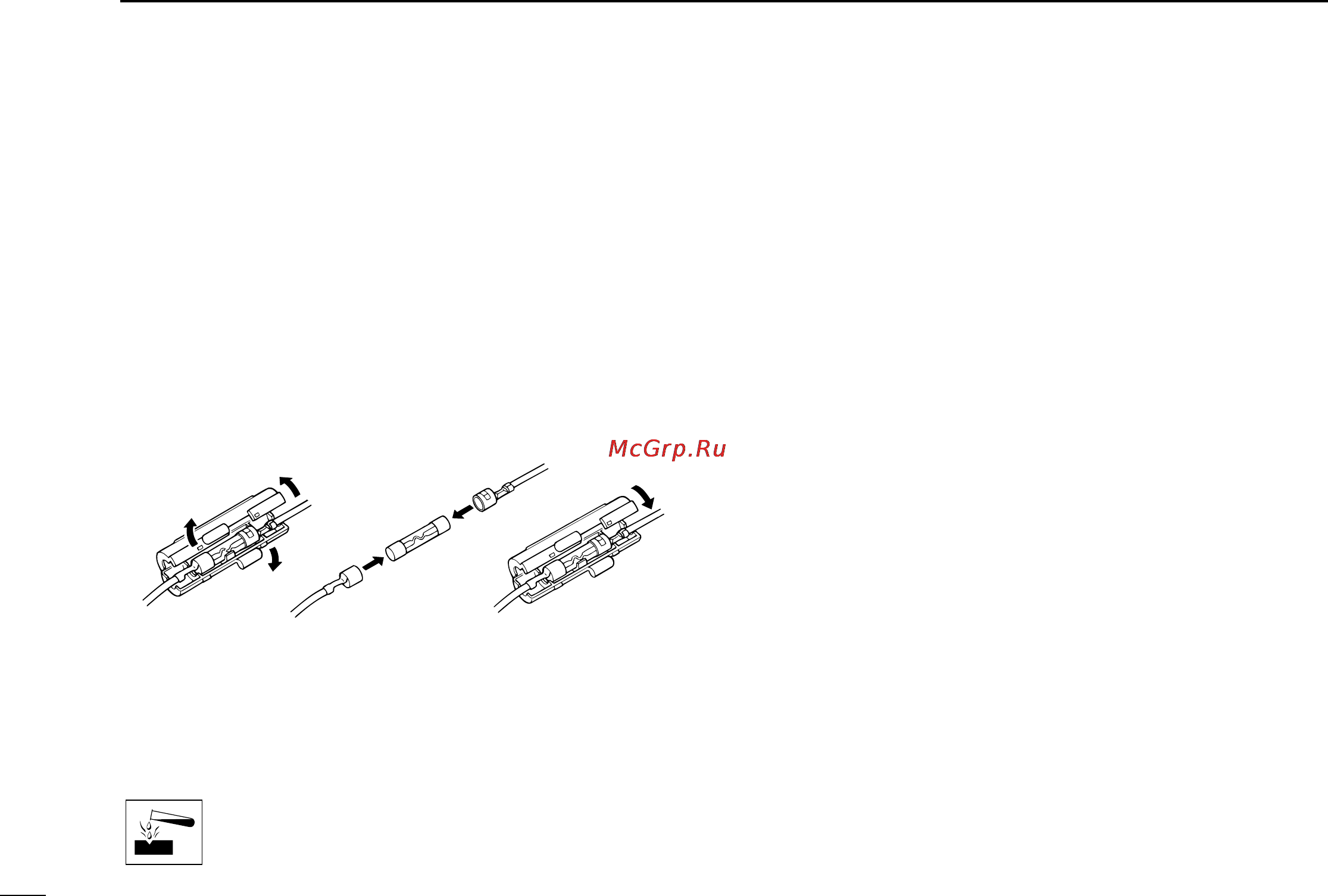

■ Fuse replacement
A fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
source of the problem, if possible, and replace the damaged
fuse with a new rated one.
❑ Fuse rating: 20 A, IC-F520/F620: 20 A
■ Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
AVOID the use of solvents such as benzene or
alcohol, as they may damage the transceiver sur-
faces.
IC-F111S_F121S_F211S_F221S 02.10.3 11:54 AM Page 13 (1,1)
