PANEL DESCRIPTION
TX/RX
1
2
3
4
q
w
e
r
Function LED (p. 2)

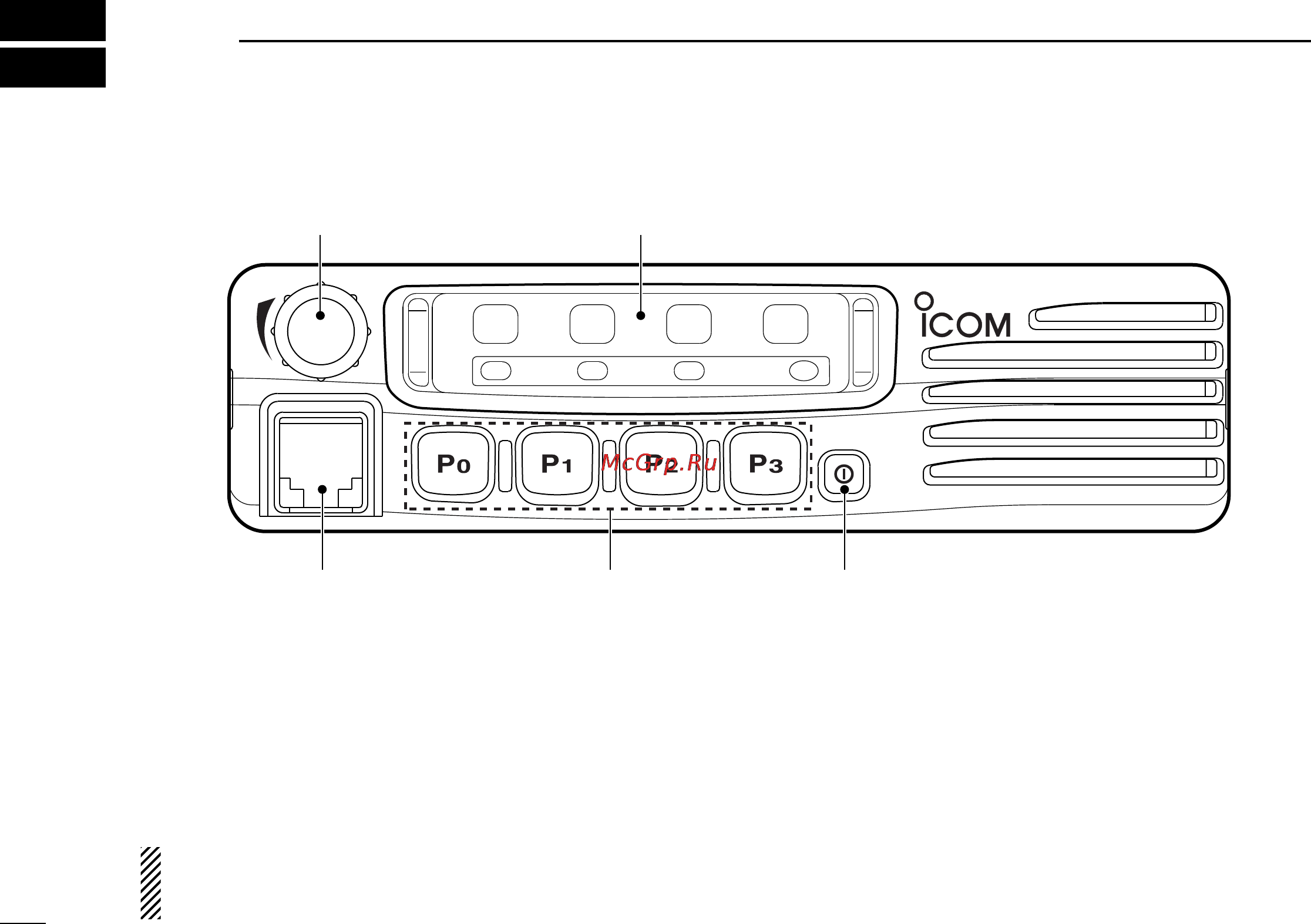

■ Front panel
q AF VOLUME CONTROL KNOB
➥Rotate the knob to adjust the audio output level.
• Minimum audio level is pre-programmed.
w MICROPHONE CONNECTOR
➥Connect the supplied microphone or optional DTMF micro-
phone.
NEVER connect non-specified microphones. The pin
assignments may be different and the transceiver may
be damaged.
e DEALER-PROGRAMMABLE KEYS [P0] to [P3]
➥Desired functions can be programmed independently by
your Dealer.
r POWER SWITCH [POWER]
➥Push to turn the power ON and OFF.
• The following functions are available at power ON as options:
- Automatic scan start
- Password prompt
- Set mode
