20
8
SET MODE
■ Set mode programming
Set mode is used to change the conditions of some of the
transceiver’s functions.
•Available functions may differ depending on dealer set-
ting.
•The optional HM-127 has it’s own settings for the beep
tone and LCD contrast. (p. 34)
q Turn power OFF.
w While pushing and holding [16], turn power ON to enter set
mode.
e After the display appears, release [16].
r Push [16] to select the desired item, if necessary.
t Push [Y]/[Z] to select the desired condition of the item.
y Turn power OFF, then ON again to exit set mode.

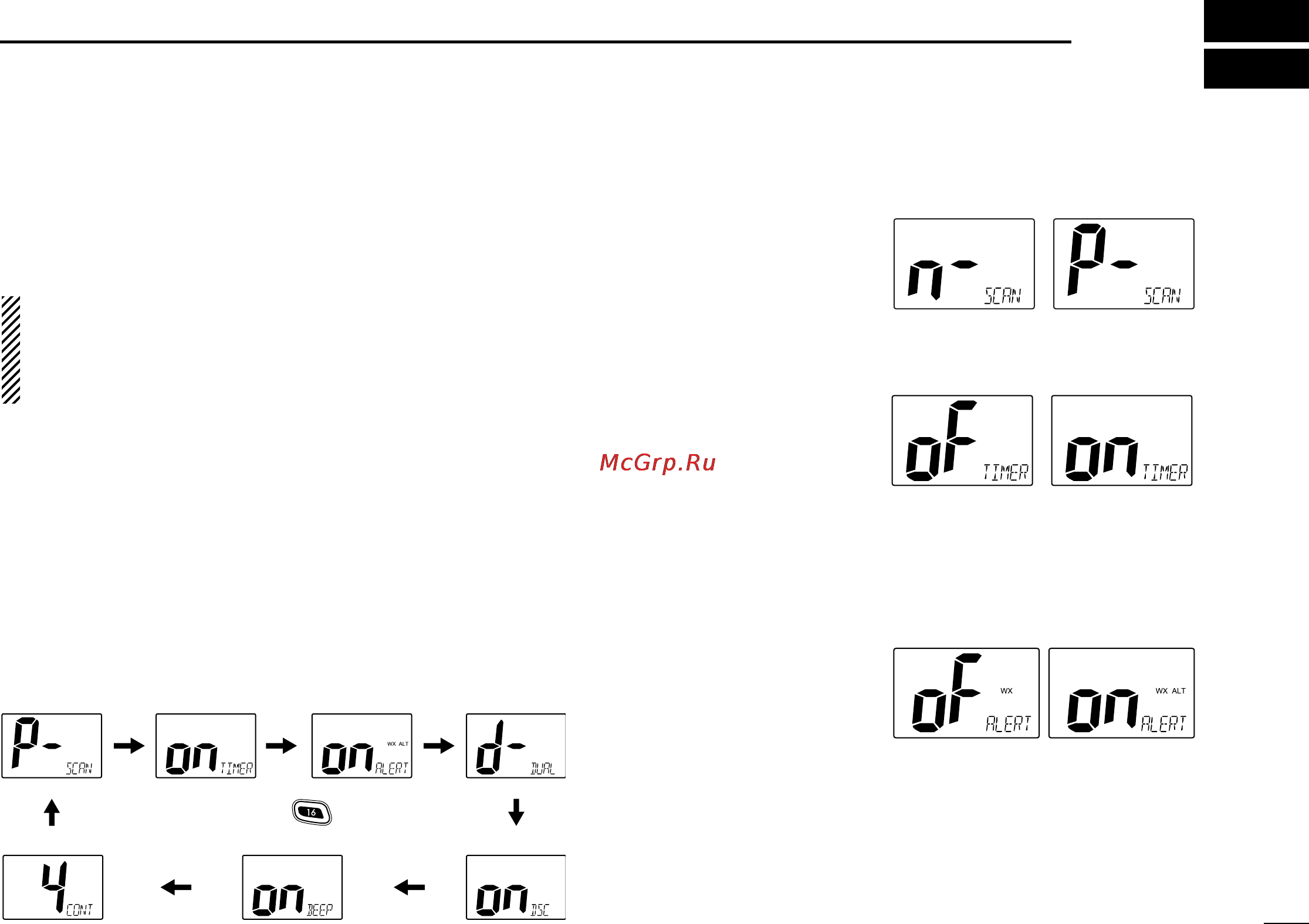

• SET MODE CONSTRUCTION
■ Set mode items
ïï
Scan mode
The scan mode can be se-
lected as a normal scan or
priority scan. (p. 9)
ïï
Scan resume timer
The scan resume timer
can be selected as a
pause (OFF) or timer scan
(ON).When OFF is se-
lected, the scan pauses
until the signal disappears.When ON is selected, the scan
pauses 5 sec. and resumes even if a signal is being received
on channels except for Channel 16.
ïï
Weather alert
An NOAA broadcast sta-
tion transmits a weather
alert tone before important
weather information. When
the weather alert function is turned ON, the transceiver detects
the alert, then flashes the “WX ALT” indicator until the trans-
ceiver is operated. The previously selected (used) weather
channel is checked any time during standby or while scanning.
•“ALT” appears with “WX” indication when the function is set ON.
Scan mode
Weather alert
Scan resume timer Dual/tri watch
DSC watch
LCD contrast
Beep tone
Push
Normal scan (default)
Priority scan
Scan timer OFF (default)
Scan timer ON
Weather alert OFF (default) Weather alert ON
