Icom IC-M402 [28/50] Installation and maintenance
![Icom IC-M402 [28/50] Installation and maintenance](/views2/1074653/page28/bg1c.png)
22
9
INSTALLATION AND MAINTENANCE

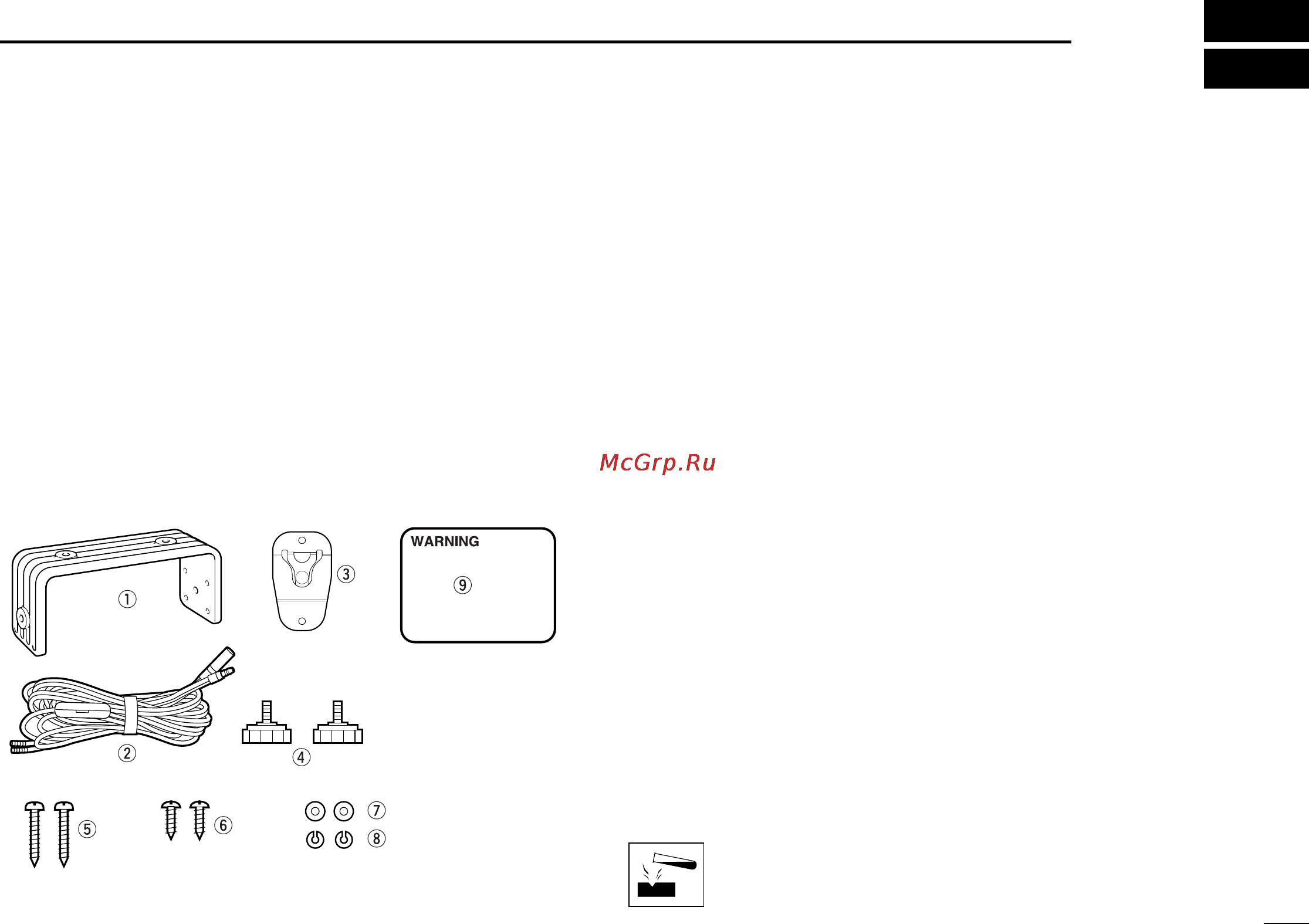

■ Supplied accessories
The following accessories are supplied: Qty.
q Mounting bracket ............................................................ 1
w DC power cable (OPC-891) ........................................... 1
e Microphone hanger ........................................................ 1
r Mounting bracket knobs ................................................. 2
t Mounting screws (5 × 20
mm) ......................................... 2
y Mic hanger screws (3 × 16
mm) ...................................... 2
u Flat washers (M5) ........................................................... 2
i Spring washers (M5) ...................................................... 2
o WARNING STICKER ..................................................... 1
■ Warning sticker attachment
A WARNING STICKER is supplied with the transceiver.
To comply with FCC regulations, this sticker must be affixed in
such a location as to be readily seen from the operating con-
trols of the radio. Make sure the chosen location is clean and
dry before applying the sticker.
■ Antenna
A key element in the performance of any communication sys-
tem is an antenna. Ask your dealer about antennas and the
best places to mount them.
■ Fuse replacement
One fuse is installed in the supplied DC power cable. If a fuse
blows or the transceiver stops functioning, track down the
source of the problem, if possible, and replace the damaged
fuse with a new, rated one.
■ Cleaning
If the transceiver becomes dusty or dirty, wipe it clean with a
soft, dry cloth.
AVOID the use of solvents such as benzene or al-
cohol, as they may damage transceiver surfaces.
00_IC-M402_S.qxd 02.2.21 0:08 PM Page 22 (1,1)
