25
9
INSTALLATION AND MAINTENANCE
■ MB-69 mounting bracket
(option)
An optional MB-69
FLUSH MOUNT
is available for mounting the
transceiver to a flat surface such as an instrument panel.
CAUTION: KEEP the transceiver and microphone at
least 1 meter away from your vessel’s magnetic navigation
compass.

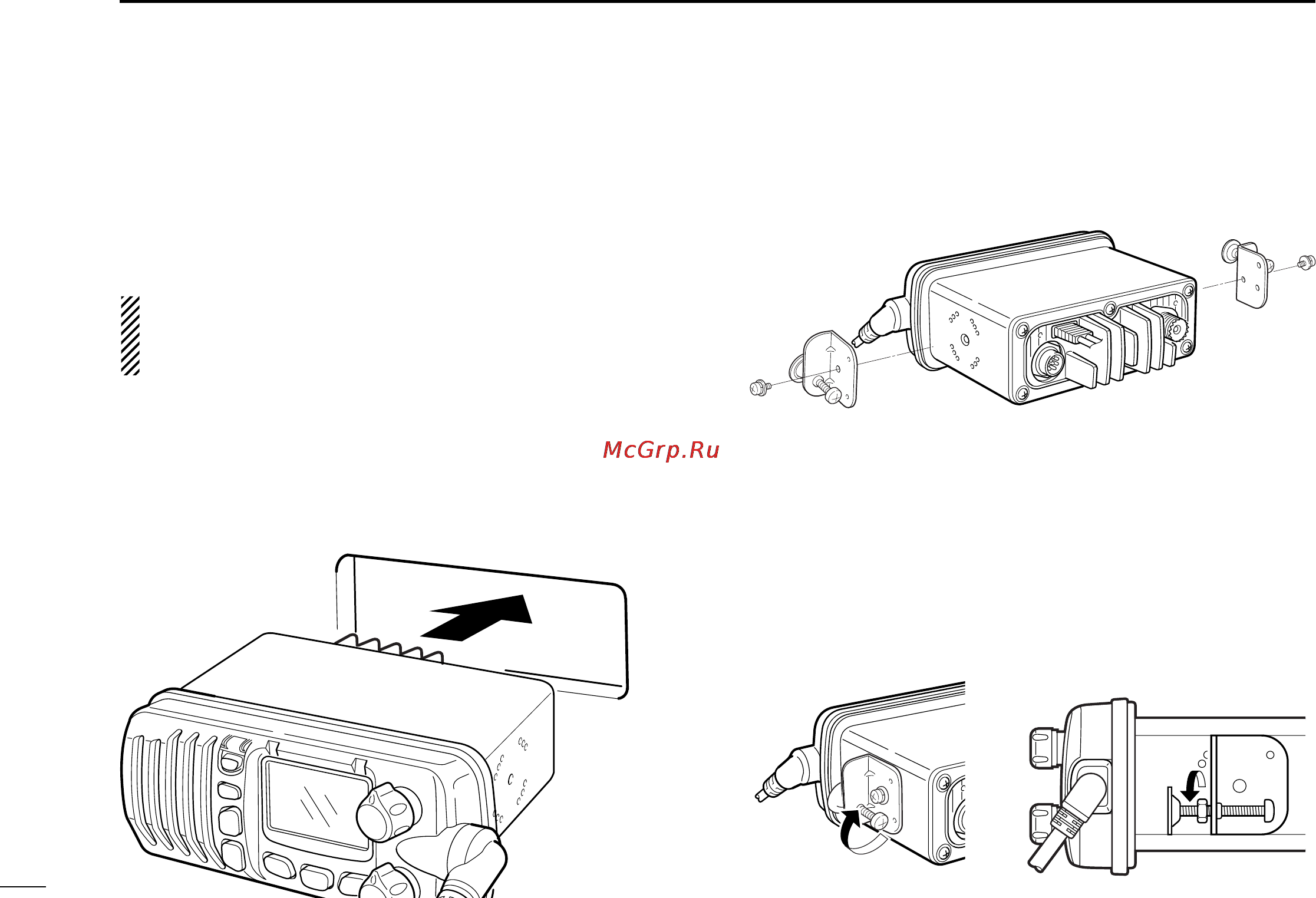

q Using the template on the last page, carefully cut a hole
into the instrument panel (or wherever you plan to mount
the transceiver).
w Slide the transceiver through the hole as shown below.
e Attach the clamps on either side of the transceiver with 2
supplied bolts (5 × 8 mm).
• Make sure that the clamps align parallel to the transceiver body.
r Tighten the end bolts on the clamps (rotate clockwise) so
that the clamps press firmly against the inside of the in-
strument control panel.
t Tighten the locking nuts (rotate counterclockwise) so that
the transceiver is securely mounted in position as below.
y Connect the antenna and control cable, then return the in-
strument control panel to its original place.
IC-M402
00_IC-M402_S.qxd 02.2.21 0:08 PM Page 25 (1,1)
