29
10
HM-127 REMOTE-CONTROL MICROPHONE
!2 WEATHER CHANNEL INDICATOR (pgs. 6, 31)
➥“WX” appears when a weather channel is selected.
➥ “ALT” appears when the weather alert function is in use;
flashes when an alert tone is received.
!3 LOW POWER INDICATOR (pgs. 6, 29)
Appears when low power is selected.
!4 CALL CHANNEL INDICATOR (pgs. 5, 31)
Appears when the call channel is selected.
!5 DUPLEX INDICATOR (p. 5)
Appears when a duplex channel is selected.
!6 TAG CHANNEL INDICATOR (pgs. 10, 33)
Appears when a tag channel is selected.

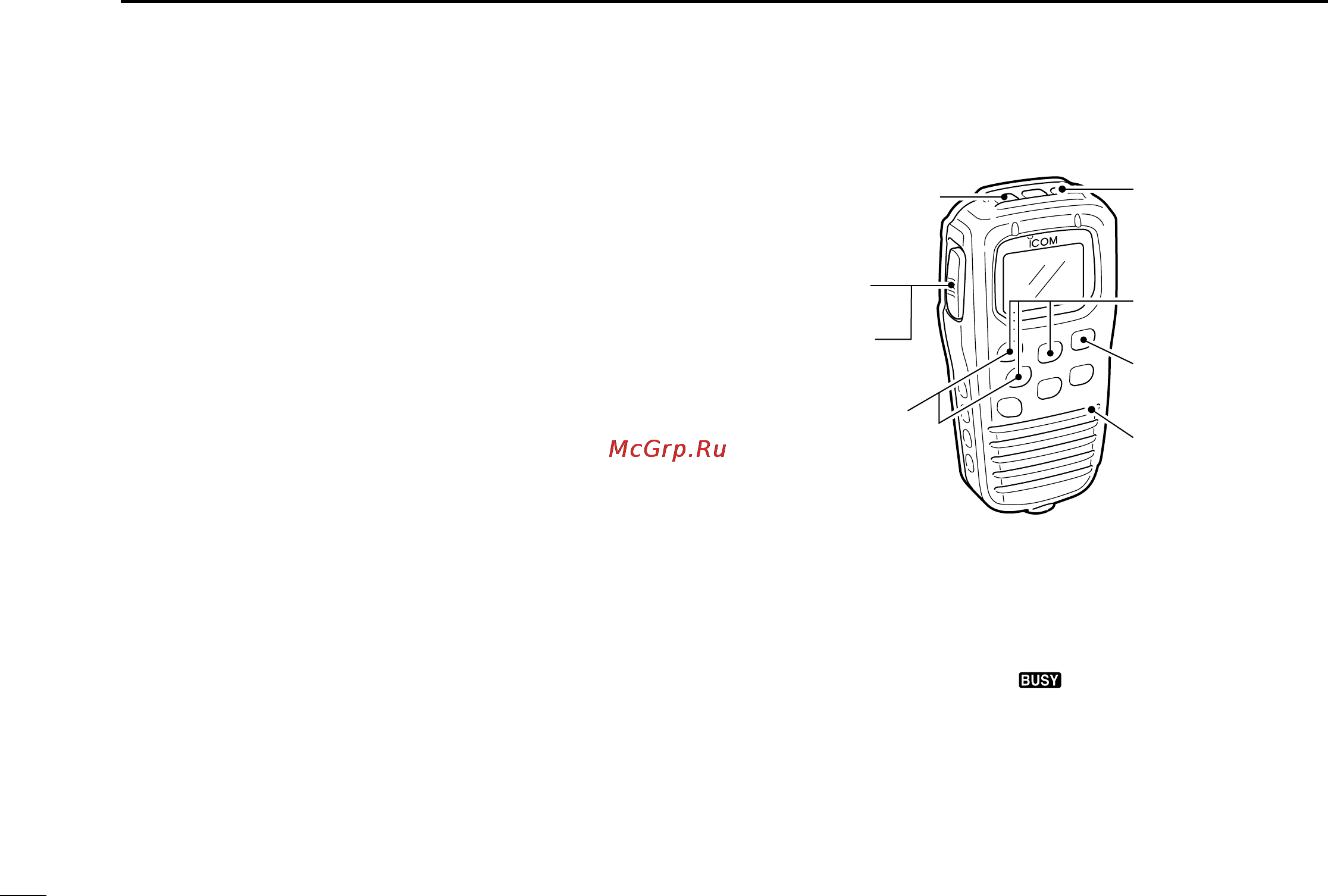

■ Receiving and transmitting
q Push [PWR] to turn power ON.
w Push [VOL], then [Y]/[Z] to adjust audio output level.
• Push [SQL], then [Y]/[Z] to mute any audio noise, if necessary.
e Push [Y]/[Z] to select the desired channel.
•When receiving a signal, “” appears and audio is emitted
from the speaker.
•Further adjustment of audio level may be necessary at this point.
r Push [H/L] to select the output power, if necessary.
•“LOW” appears when low power is selected.
•Choose low power for shorter, high power for longer distance
communications.
• Some channels are low power only.
w Set volume
w Set squelch,
if required
r Set output power
t Speak into
microphone
q Turn power ON
e Set channel
t Push to
transmit
y Release
to receive
00_IC-M402_S.qxd 02.2.21 0:08 PM Page 29 (1,1)
