Icom IC-M402 [8/50] Panel description
![Icom IC-M402 [8/50] Panel description](/views2/1074653/page8/bg8.png)
2
2

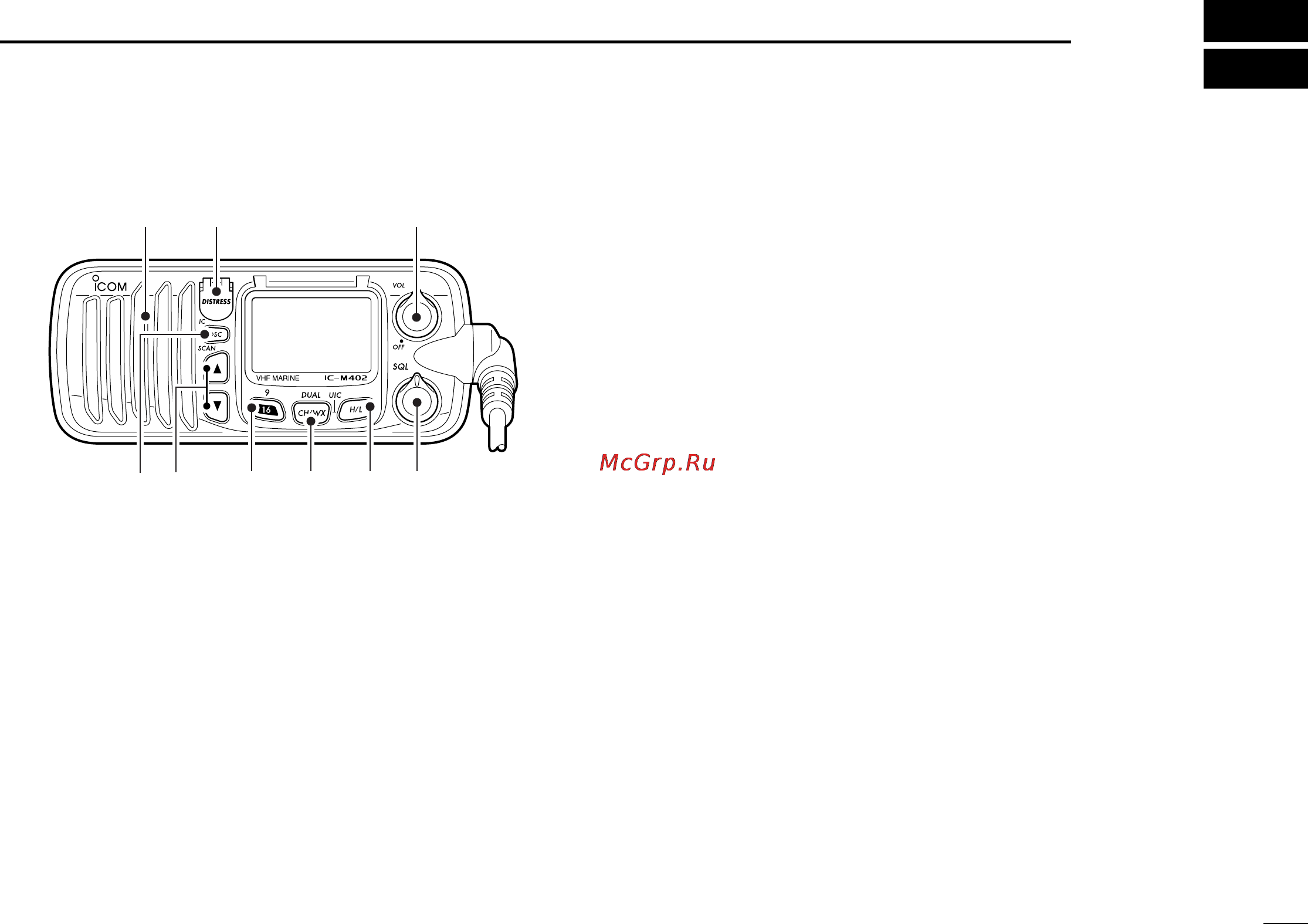

PANEL DESCRIPTION
q DISTRESS SWITCH [DISTRESS]
Transmits distress call when pushed for 5 sec. (p. 12)
w POWER / VOLUME CONTROL [VOL]
Turns power ON and OFF and adjusts the audio level. (p. 6)
e SQUELCH CONTROL [SQL]
Sets the squelch threshold level. (p. 6)
r TRANSMIT POWER SWITCH [H/L]
➥ Toggles high and low power when pushed. (p. 6)
• Some channels are set to low power only.
➥ While pushing this switch, other switches perform sec-
ondary functions.
t CHANNEL SWITCH [CH/WX•DUAL]
➥ Selects and toggles the regular channels and weather
channel when pushed momentarily. (p. 5)
➥ While push and hold [H/L] push [CH/WX•DUAL] to se-
lects one of 3 regular channels in sequence. (p. 5)
•International, U.S.A. and Canadian channels are available for
regular channels.
➥ Starts dualwatch or tri-watch when pushed for 1 sec.
(p. 8)
➥ Stops dualwatch or tri-watch when either is activated.
y CHANNEL 16/CALL CHANNEL SWITCH [16•9]
➥ Selects Ch 16 when pushed. (p. 5)
➥ Selects call channel when pushed for 1 sec. (p. 5)
•“CALL” appears when call channel is selected.
➥ Push for 3 sec. to enter call channel programming con-
dition when call channel is selected. (p. 7)
➥ While push and hold [H/L] push [16•9] to enter memory
name programming condition. (p. 7)
➥ While turning power ON push [16•9] to enter set mode.
(p. 20)
u CHANNEL UP / DOWN SWITCHES [
YY
/
ZZ
•SCAN]
➥ Push to select the operating channels, set mode con-
tents, etc. (p. 6)
➥ While push and hold [H/L] push [Y]/[Z] to adjust the
brightness of the LCD and switch backlight.
➥ Push for 3 sec. to enter call channel programming con-
dition when call channel is selected. (p. 7)
➥ Push [Y] or [Z] for 1sec. to start/stop scanning. (p. 10)
➥ Push [Y] and [Z] for 1sec. to toggle the tag setting for
the displayed channel. (p. 10)
i DSC/INTERCOM SWITCH [DSC/IC] ([DSC] for IC-M402S)
➥ Selects the DSC menu when pushed. (p. 11)
➥ While push and hold [H/L] push [DSC] for 1 sec. to show
current position and time. (p. 11)
➥ Push [DSC] for 1 sec. to enter intercom mode.
(IC-M402 only, p. 19)
Speaker Function display
wq
uertyi
IC-M402
■ Panel description
00_IC-M402_S.qxd 02.2.21 0:06 PM Page 2 (1,1)
