– 12 –
CE-50 / CE-75 / TE-50 / TE-75 / TE-75S / TE-125 / TE-125BF
EN

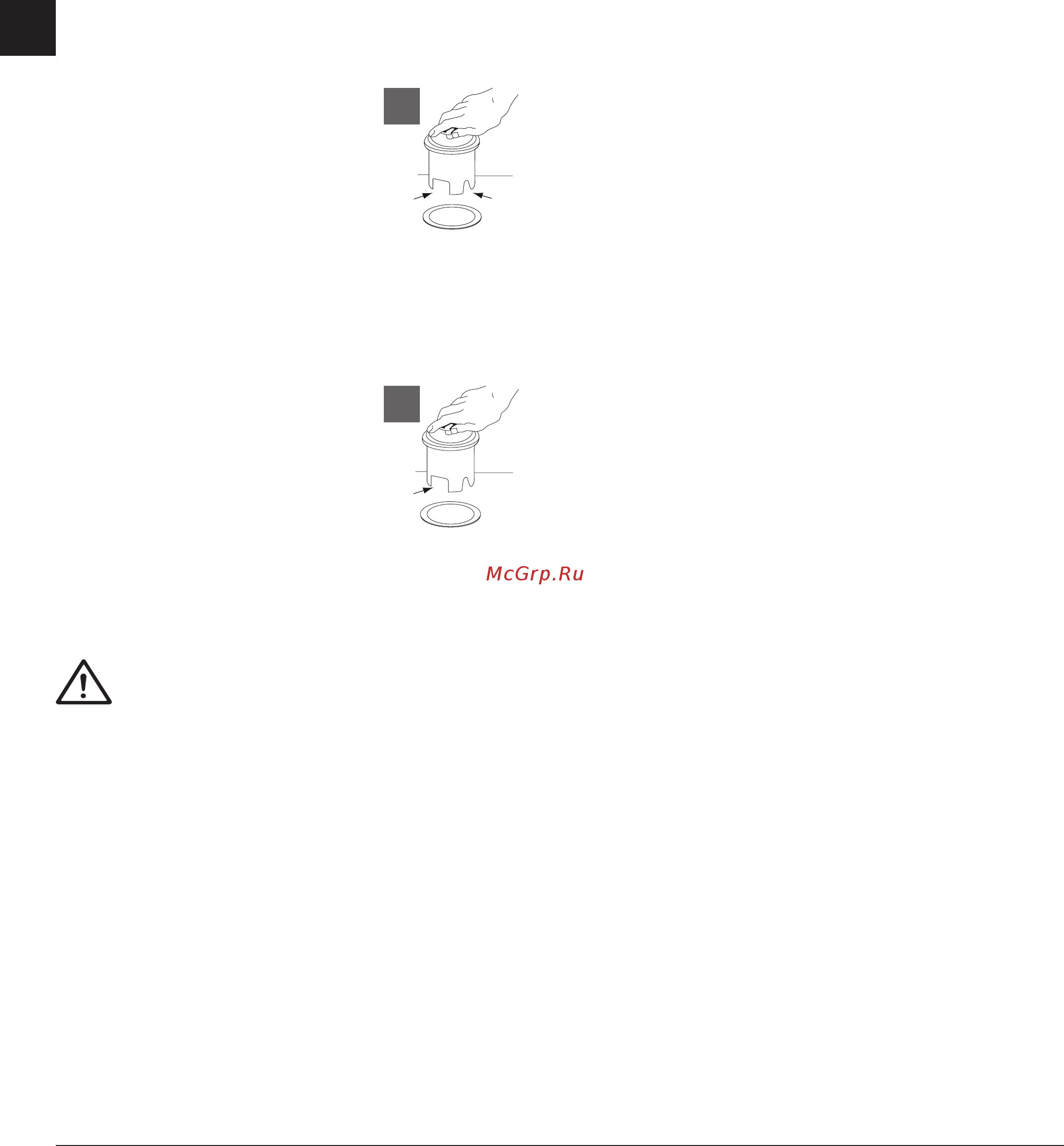

Insert stopper to start disposer.
6B
(fig. 6B). One of the two small
slots in stopper base must line
up with switch plunger inside
the neck of the disposer.
Push down firmly to turn the
disposer on. Lift stopper to shut the disposer off.
Run disposer for 15 seconds after shredding
stops. This ensures that all waste is thoroughly
flushed through the drain.
To fill sink, insert stopper and
6C
align the largest slot with the
switch plunger (fig. 6C). Push
down to seal sink without
starting the disposer. When
medium sized slot (fig. 6B) in
stopper base is lined up with the switch plunger,
water can drain, but tableware, etc., cannot be
accidentally dropped into disposer.
CAUTION
Cold water recommended.
Do not use the food waste disposer with hard
materials like glass or metal.
Turn the machine off or unplug it while trying
to unblock a blocked turntable with a wooden
spoon.
DO NOT PUT INSIDE :
– Caustic Soda and drain cleaning chemicals
(Hydrochloric and muriatic acid),as they cause
serious corrosion of metal parts . If used, resulting
damage can be easily detected and all warranties
are void
– Fat and oil in excess
– Plastic materials
– Pumpkins
– Banana skin
– Leaves of pineapple
– Asparagus
– Artichokes
– Shell (es. oyster, mussel, ecc.)
– Medicine
– Metal (bottle top)
– Plastic pieces
– Cow bone a/o large bones
TO BE PUT INSIDE:
– Corn cobs
– Little bones (es. chicken and rabbit bones)
– Nut shells
– Meat scraps
– Melon and watermelon skins
– Fruit pips
– Grape pips
– Rice
– Grounds of coffee
– Eggshells
– Fishbones
– Fish heads
– Pasta
– Vegetables or vegetable peel
– Cheese
– Bread
– Soup
TROUBLESHOOTING
Before seeking repair or replacement, we
recommend that you review the following:
LOUD NOISES (other than those during grinding of
small bones and fruit pips): these are usually caused
by accidental entry of a spoon, bottle cap or other
foreign object.
To correct this, turn off electrical switch and
water. After disposer has stopped.
UNIT DOES NOT START:
Unplug power cord or turn either the wall
switch or breaker box switch to “OFF”
position, depending on your model and wiring
configuration.
Remove stopper and /or splash guard. Check to
see if turntable will rotate freely using a wooden
broom handle. If turntable rotates freely, replace
splash guard and check reset button to see if it
has been tripped. Reset button is red and located
opposite discharge elbow, near the bottom
(fig. 3). Push button in until it clicks and remains
depressed.
If reset button has not been tripped, check for
shorted or broken wire connecting to disposer.
