Metabo PWE 11-100 [10/36] Working instructions

ENGLISH

ENG

Do not allow water within the vicinity of the

machine or close to people in the working

area.

Always position the machine so that no water

can enter the machine or come in contact

with electrical components.

- Ensure that the shut-off cock (1) is closed.

- Ensure that the water tap to the water supply is

closed.

- Fit a water hose (1/2“) with a standard self-

locking quick connector to the connection piece

(2) until it locks into place.

- Open the water tap to the water supply.

To remove the hose, close the water tap to

the water supply and then open the shut-off

cock (1) to release the pressure in the hose. When

removing the hose, make sure that no water enters

the machine. Close the shut-off cock (1).

6.6 Fitting/Removing the accessory

Press in the spindle locking knob (11) only

when the spindle is stationary!

To fit:

- Press in the spindle locking button (11) and turn

the spindle (8) by hand until you feel the spindle

locking button engage.

- Manually screw on the support plate (18) (with

velcro-type fastening), turning clockwise.

- Simply press the polishing disc (17) (with velcro-

type fastening) so that the polishing disc (17) and

support plate (18) are perfectly aligned.

To remove

- Press the spindle locking button (11).

- Manually unscrew the support plate (18), turning

anticlockwise (apply a flat wrench to the spanner

flat of the plate if necessary).

7.1 Setting speed

The speed can be preset via the setting wheel (19)

and is infinitely variable.

Positions 1-6 correspond approximately to the

following no-load speeds:

1 ......... 1750 / min 4 ........4050 / min

2 ......... 2700 / min 5 ........4800 / min

3 ......... 3500 / min 6 ........5400 / min

The VTC electronics make material-compatible

work possible and an almost constant speed, even

under load.

7.2 Switching On and Off

Switch on first, then guide the

accessory

towards the workpiece.

The machine must not be allowed to draw in

additional dust and shavings. When

switching the machine on and off, keep it away

from dust deposits. After switching off the

machine, only place it down when the motor has

come to a standstill.

Avoid inadvertent starts: always switch the

tool off when the plug is removed from the

mains socket or if there has been a power cut.

In continuous operation, the machine

continues running if it is forced out of your

hands. Therefore, always hold the machine with

both hands using the handles provided, stand in a

safe position and concentrate.

Switching on:

Push the slide switch (12) forward.

For continuous activation, now tilt down-

wards until it engages.

Switching off:

Press the rear end of the slide

switch (12) and release.

7.3 Working instructions

To start work:

- Set up the water connection (see chapter 6.5)

- Test the GFCI (see chapter 6.3).

- Open the shut-off cock (1): water flows from the

spindle (8).

- If necessary, adjust the speed. Switch on the

machine.

Fit the accessory on the tool

- Apply moderate pressure on the machine and

move it to and fro across the surface.

To finish work:

- Remove the accessory from the tool.

- Switch off the machine and allow it to come to a

standstill.

- Close the shut-off cock (1).

- Store away the machine.

The pilot light (7) does not go out when the

TEST button (5) is pressed.

Unplug. You must not

use the machine! Have a qualified electrician

check the machine.

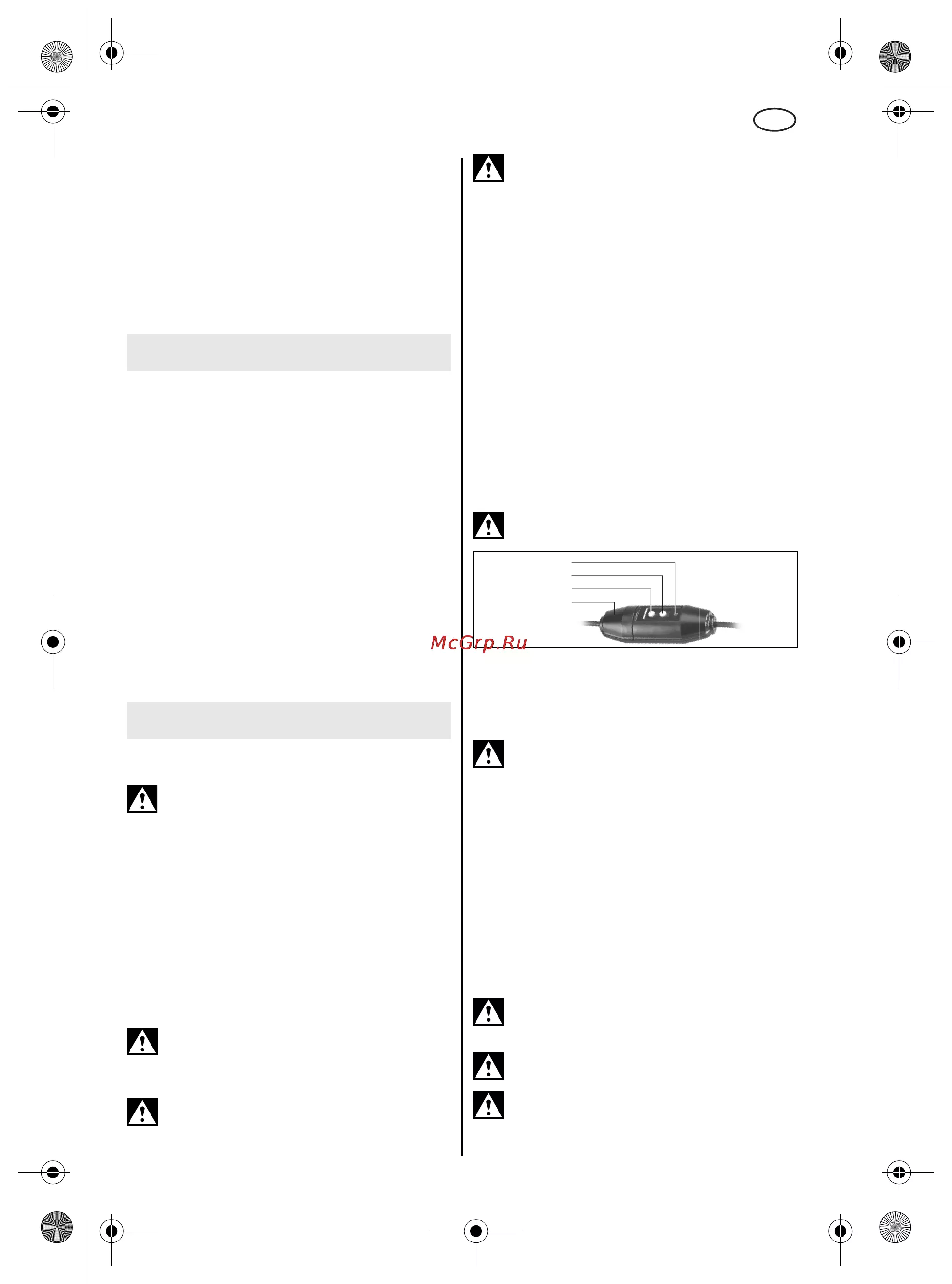

The GFCI (4) switches off the machine repeat-

edly when it is turned on.

Unplug. You must not

use the machine! Have a qualified electrician

check the machine.

The electronic signal display (13) lights up and

the load speed decreases.

The coil temperature

is too high! Run the machine in idling until the elec-

tronics signal indicator switches off.

7Use

8 Troubleshooting

17027031_1010 PWE 11-100 NAFTA.book Seite 10 Mittwoch, 13. Oktober 2010 11:55 11
