Si12-308A Outdoor Unit (80 / 90 Class)
Removal Procedure 233
4

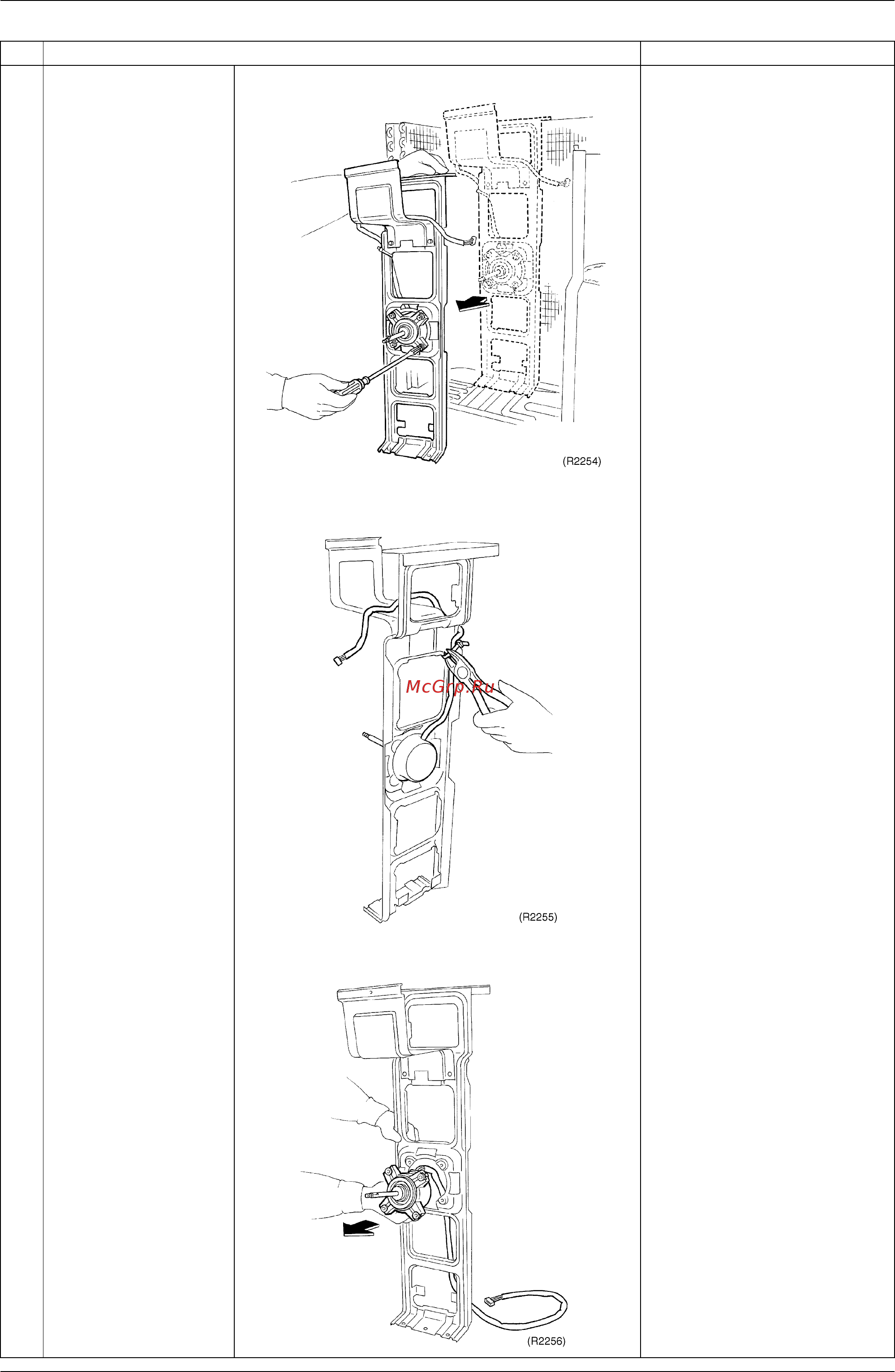

Remove 4 screws of
the fan motor.
When reassembling, fix the
lead wire to avoid contact
with the propeller fan.
5
Cut the wrapper fixing
the lead wire.
6
Remove the fan motor.
Step
Procedure Points
