Outdoor Unit (52 / 58 / 68 / 75 Class) Si12-308A
246 Removal Procedure
2

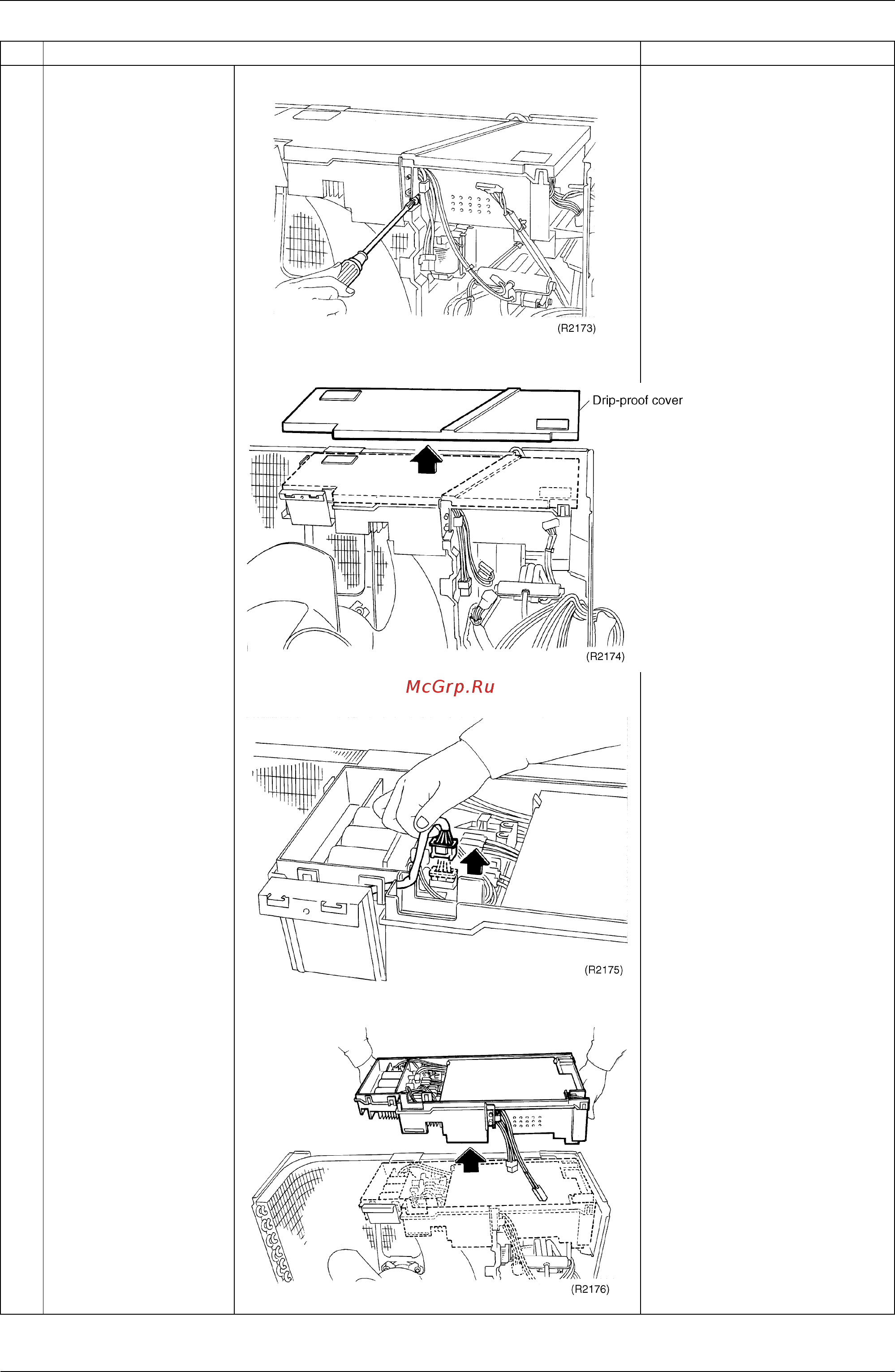

Remove 1 screw of the
electrical box.
3
Remove the drip-proof
cover.
4
Disconnect the fan
motor lead wire.
5
Lift up the electrical box
and dismount it.
Step
Procedure Points
