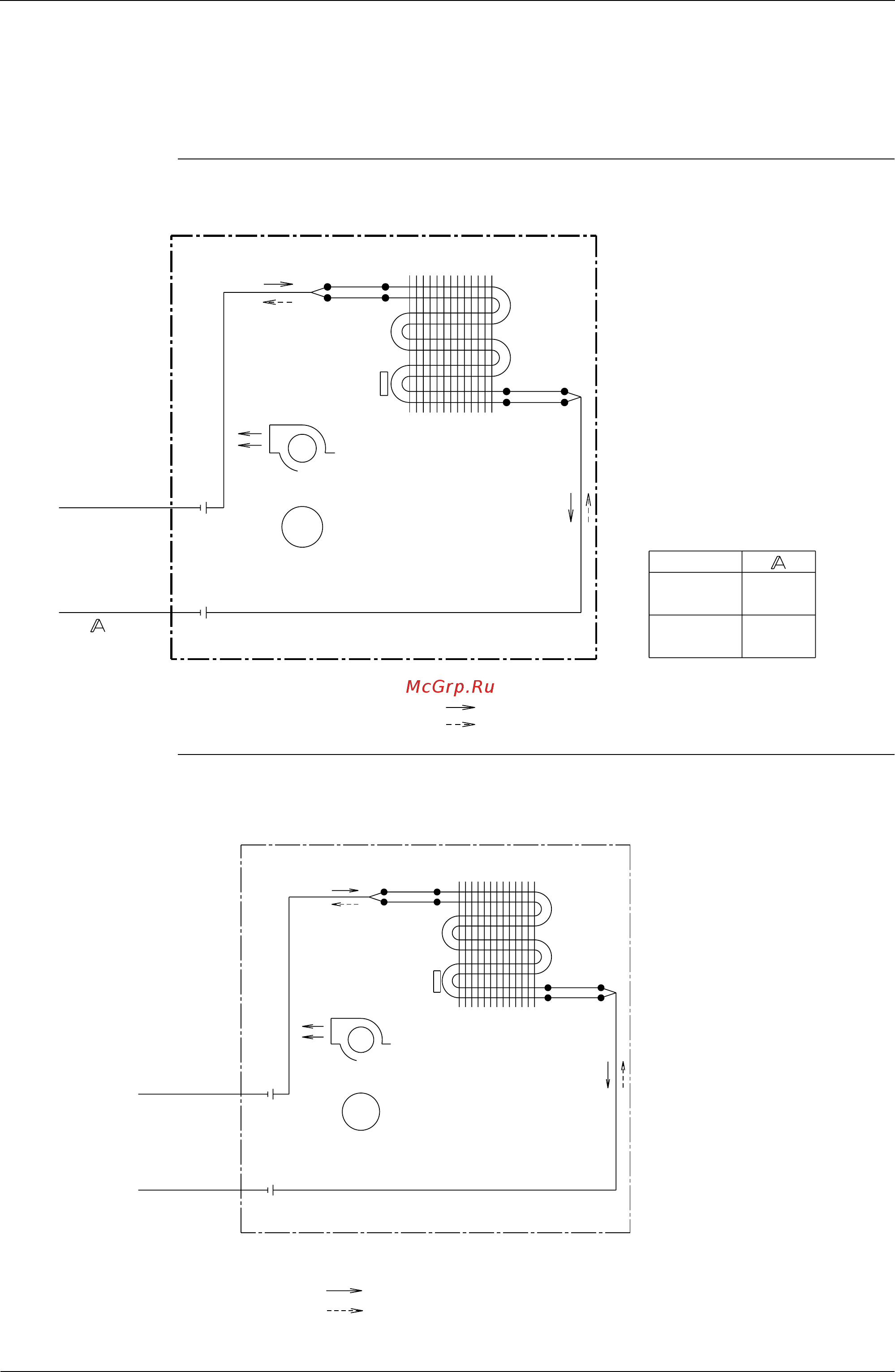

Piping Diagrams Si12-308A
262 Appendix
1. Piping Diagrams
1.1 Indoor Units
1.1.1 Wall Mounted Type
FTKE25/35BVM, FTK(X)E 25/35 BVMA, FTK(X)E 25/35 BVMT, FTXE25/35BVMC
FTK(X)S 25/35 BVMB
FIELD PIPING
FIELD PIPING
(
CuT
)
(
6.4CuT
)
7.9CuT
CROSS FLOW FAN
ON HEAT EXCH.
THERMISTOR
INDOOR UNIT
M
FAN MOTOR
6.4CuT
7.0CuT
9.5CuT
HEAT EXCHANGER
REFRIGERANT FLOW
HEATING
COOLING
6.4CuT
6.4CuT
FTXE35--
FTXE25--
C:4D032969C
12.7
9.5
FIELD PIPING
FIELD PIPING
(
6.4CuT
)
(
9.5CuT
)
7.9CuT
CROSS FLOW FAN
REFRIGERANT FLOW
FAN MOTOR
ON HEAT EXCH.
THERMISTOR
M
INDOOR UNIT
HEATING
COOLING
7.0CuT
6.4CuT
9.5CuT
HEAT EXCHANGER
6.4CuT
6.4CuT
4D033698B
