2-16

Chapter 2: Basic Installation

Chapter 2

* Intel

I211-AT 1Gb Ethernet port LED indications

Activity Link LED Speed LED

Status Description Status Description

OFF No link Off 10 Mbps connection

Orange Linked Orange 100 Mbps connection

Orange (Blinking) Data activity Green 1 Gbps connection

Orange (Blinking

then steady)

Ready to wake up

from S5 mode

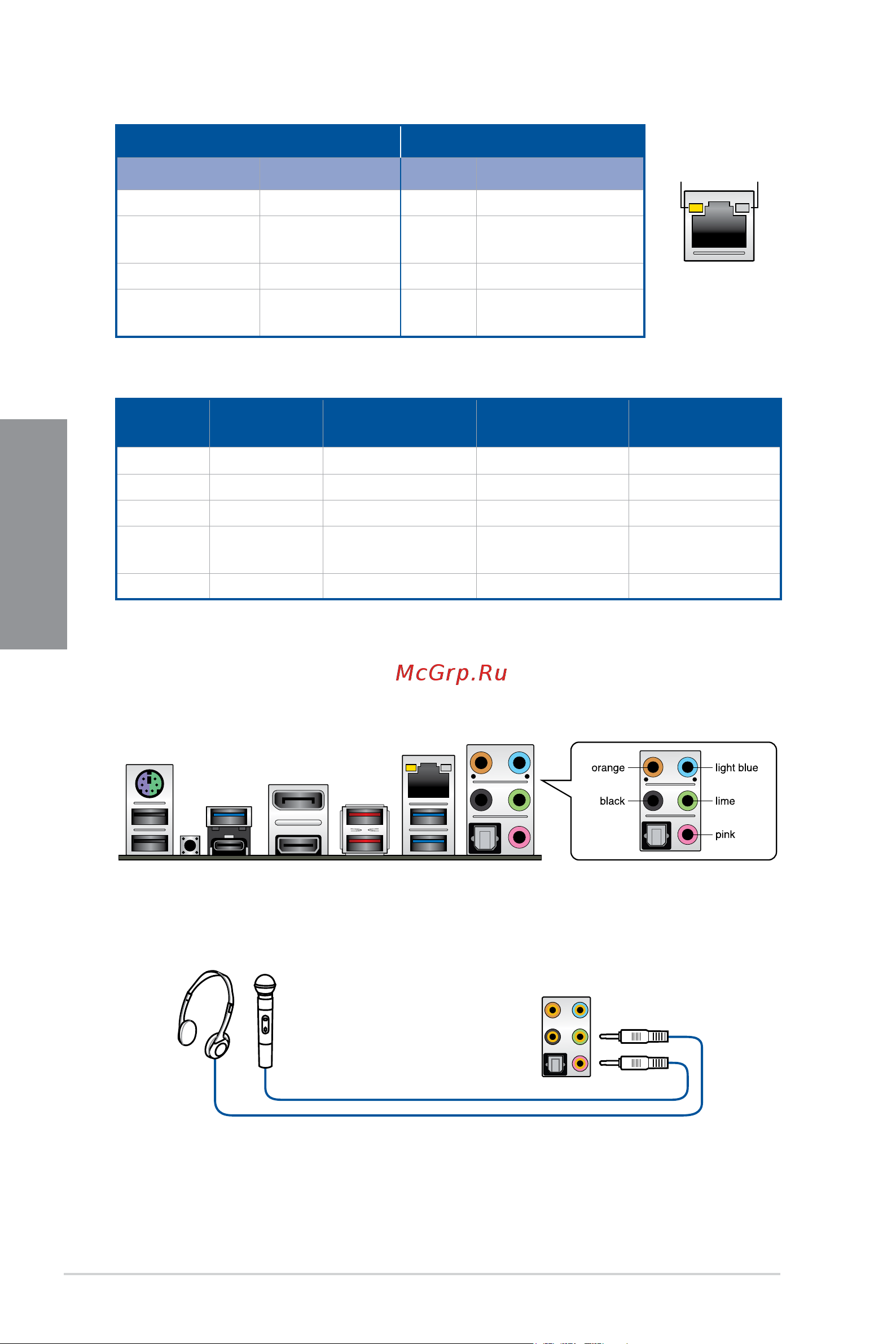

2.3.2 Audio I/O connections

Audio I/O ports

Connect to Headphone and Mic

ACT/LINK

LED

SPEED

LED

LAN port

* Audio 2, 4, 5.1 or 7.1-channel configuration

Port

Headset

2-channel

4-channel 5.1-channel 7.1-channel

Light Blue Line In Line In Line In Side Speaker Out

Lime Line Out Front Speaker Out Front Speaker Out Front Speaker Out

Pink Mic In Mic In Mic In Mic In

Orange – – Center/Sub

woofer

Center/Sub

woofer

Black – Rear Speaker Out Rear Speaker Out Rear Speaker Out
