Asus RS700A-E9-RS4V2 [110/192] Internal connectors

Chapter 4: Motherboard Information

4-12

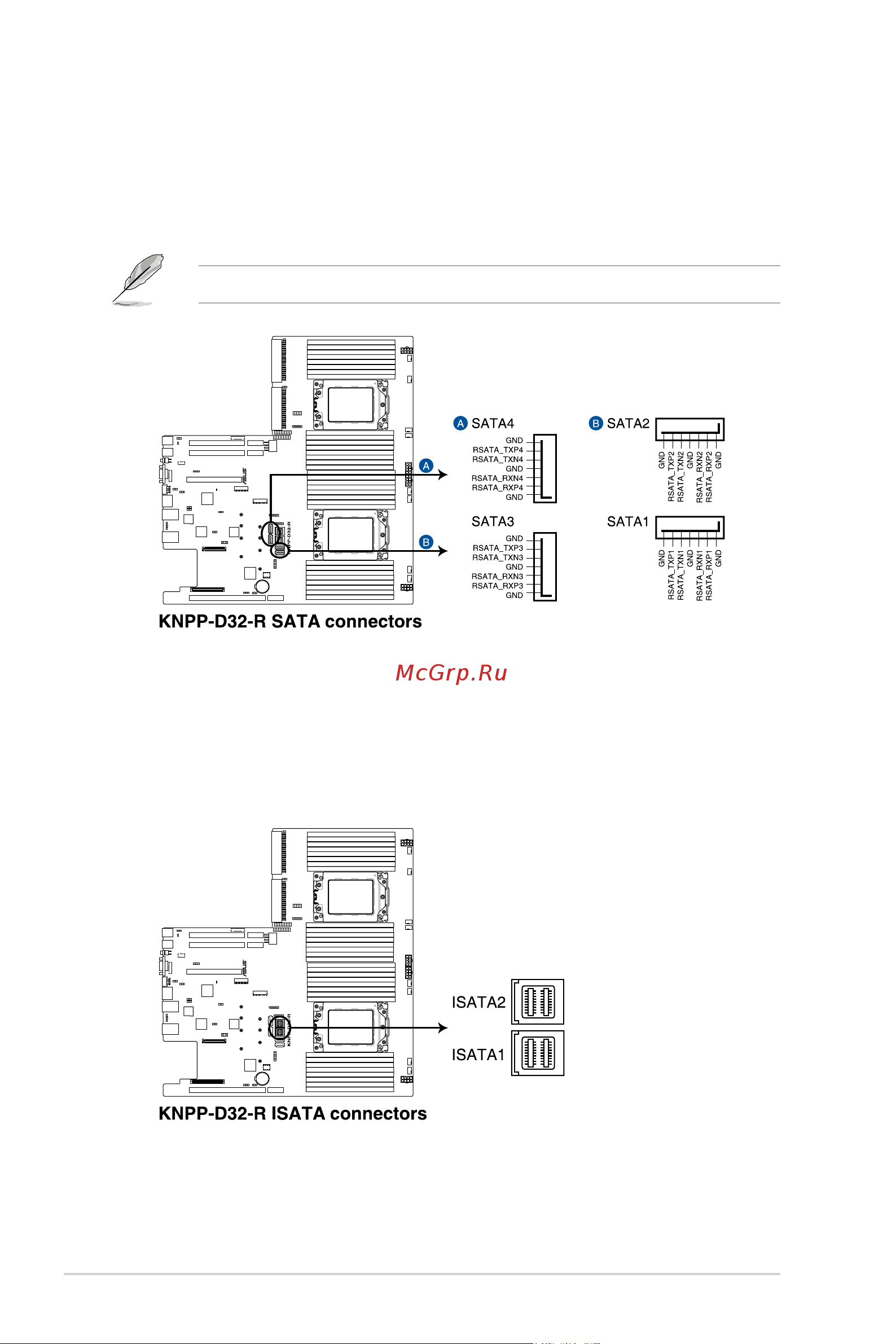

4.4 Internal connectors

1. Serial ATA connectors (7-pin SATA1-4)

These connectors, controlled by AMD integrated SATA controller, are for the Serial

ATA signal cables for Serial ATA drives (SATA 1 connector is used for the optical drive

by default).

If the SATA M.2 (NGFF1) slot is occupied, the SSATA2 slot will be disabled.

2. Mini-SAS HD connector (ISATA1-2)

This motherboard comes with mini Serial Attached SCSI (SAS) HD connectors, the

storage technology that supports Serial ATA. Each connector supports up to four

devices.
