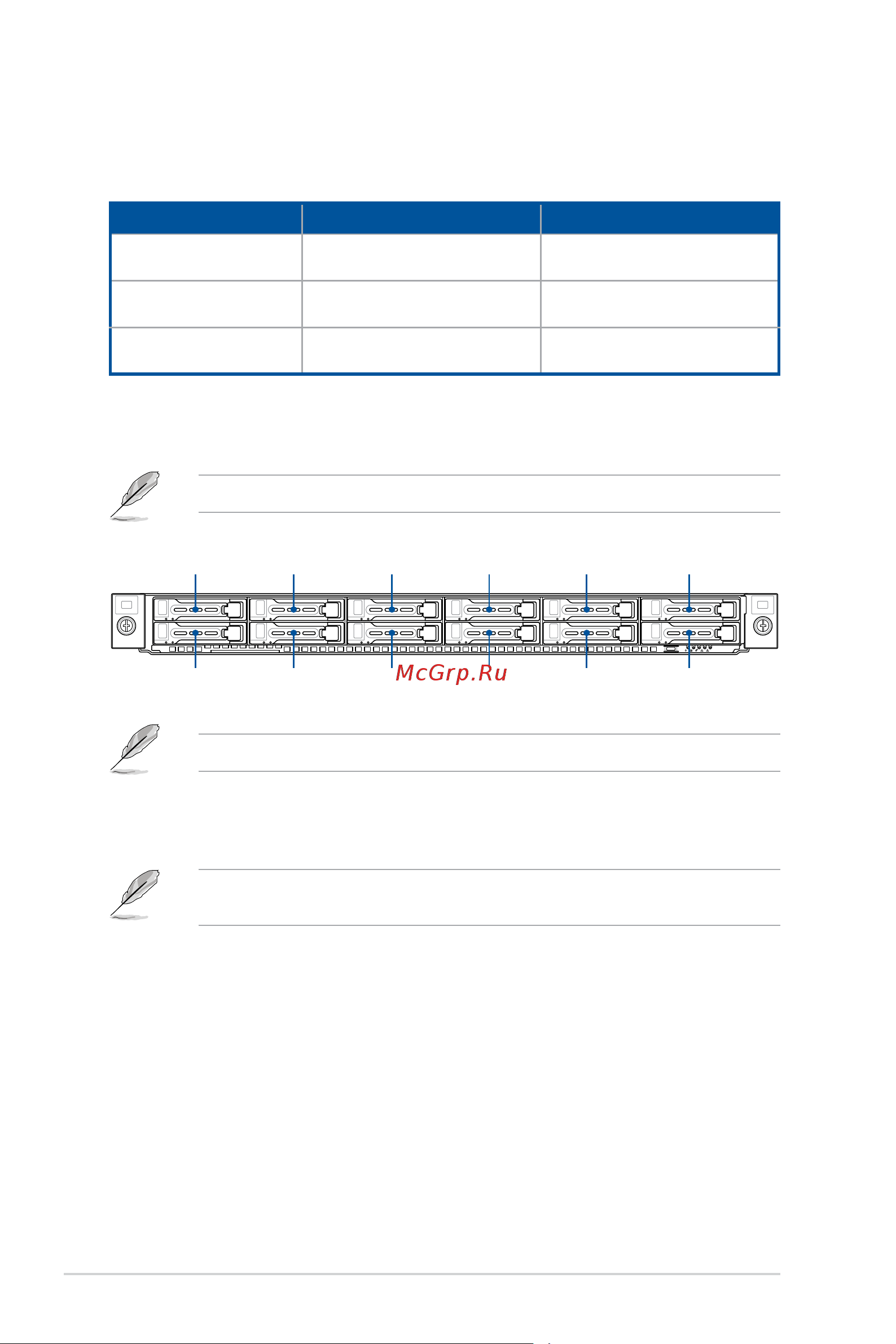

Chapter 2: Hardware Information
2-44
1. Install the storage devices into the supported bays.
Refer to section
2.4 Storage Devices
for details on how to install storage devices.
1
2
SATA/SAS SATA/SAS SATA/SAS SATA/SAS
SATA/SAS SATA/SAS SATA/SAS SATA/SAS
SATA SATA
SATA SATA
The illustrations are for reference only and may vary with your storage device setup.
2. Install an ASUS PIKE II card into your server system.
Refer to section
2.5.3 Installing an ASUS PIKE II card
for details on how to install an
ASUS PIKE II card.
Backplane connector Cable Connect to
MSAS_HD1
Mini-SAS HD (vertical) to
Mini-SAS HD (vertical)
ASUS PIKE II Card
MSAS_HD2
Mini-SAS HD (vertical) to
Mini-SAS HD (vertical)
ASUS PIKE II Card
MSAS_HD3
Mini-SAS HD (vertical) to
Mini-SAS HD (right angle)
ISATA1 on motherboard
2.8.3 8 x SATA/SAS and 4 x SATA storage device
configuration and cabling
