![Asus RS700A-E9-RS4V2 [61/192] Sata connectors one connector connected to backplane for rs700a e9 rs4v2 only](/img/pdf.png)
Asus RS700A-E9-RS4V2 [61/192] Sata connectors one connector connected to backplane for rs700a e9 rs4v2 only
![Asus RS700A-E9-RS4V2 [61/192] Sata connectors one connector connected to backplane for rs700a e9 rs4v2 only](/views2/1771487/page61/bg3d.png)
2-33
ASUS RS700A-E9 Series V2
KNPP-D32-R
®
CPLD
VGA1
VGA_HDR1
PWR_SW1
MEZZPCIE1
MEZZPCIE2
Super
I/O
Intel
I350
ASPEED
AST2500
Lithium Cell
CMOS Power
BIOS
DDR4 DIMM_P2 (64bit, 288-pin module)
DDR4 DIMM_P1 (64bit, 288-pin module)
DDR4 DIMM_O2 (64bit, 288-pin module)
DDR4 DIMM_O1 (64bit, 288-pin module)
DDR4 DIMM_N2 (64bit, 288-pin module)
DDR4 DIMM_N1 (64bit, 288-pin module)
DDR4 DIMM_M2 (64bit, 288-pin module)
DDR4 DIMM_M1 (64bit, 288-pin module)
DDR4 DIMM_H2 (64bit, 288-pin module)
DDR4 DIMM_H1 (64bit, 288-pin module)
DDR4 DIMM_G2 (64bit, 288-pin module)
DDR4 DIMM_G1 (64bit, 288-pin module)
DDR4 DIMM_F2 (64bit, 288-pin module)
DDR4 DIMM_F1 (64bit, 288-pin module)
DDR4 DIMM_E2 (64bit, 288-pin module)
DDR4 DIMM_E1 (64bit, 288-pin module)
DDR4 DIMM_I1 (64bit, 288-pin module)
DDR4 DIMM_I2 (64bit, 288-pin module)
DDR4 DIMM_J1 (64bit, 288-pin module)
DDR4 DIMM_J2 (64bit, 288-pin module)
DDR4 DIMM_K1 (64bit, 288-pin module)
DDR4 DIMM_K2 (64bit, 288-pin module)
DDR4 DIMM_L1 (64bit, 288-pin module)
DDR4 DIMM_L2 (64bit, 288-pin module)
DDR4 DIMM_A1 (64bit, 288-pin module)
DDR4 DIMM_A2 (64bit, 288-pin module)
DDR4 DIMM_B1 (64bit, 288-pin module)
DDR4 DIMM_B2 (64bit, 288-pin module)
DDR4 DIMM_C1 (64bit, 288-pin module)
DDR4 DIMM_C2 (64bit, 288-pin module)
DDR4 DIMM_D1 (64bit, 288-pin module)
DDR4 DIMM_D2 (64bit, 288-pin module)
PCIE4 FANPWR3
PCIE3
PCIE2
PCIE1
FANPWR2
FANPWR1
FRNT_FAN8
FRNT_FAN7
VGAPWR2 VGAPWR3
VGAPWR1
BPPWR1
FRNT_FAN6
FRNT_FAN5
FRNT_FAN2
FRNT_FAN1
FRNT_FAN3
FRNT_FAN4
VGA_SW1
BMC_EN1
CLRTC1
OCP_LED1
IPMI_SW1
HDLED1
COM1
SBPWR1
BMCLED1
Micro SD
USB67
BPPWR2
PANEL1
AUX_PANEL2
AUX_PANEL1
LANNCSI_EN1
LAN_SW2
LAN_SW1
DM_IP_SEL1
INTRUSION1
SMART_PSU1
MESLED1
LOCLED1
HDDLED1
ISATA1 ISATA2
SATA4
NGFF6
2242
NGFF7
2260
NGFF8
2280
NGFF10
22110
NGFF3
2242
NGFF4
2260
NGFF5
2280
NGFF9
22110
SATA3
SATA1
SATA2
DM_LAN1
LAN2
LAN1
USB3_4
USB3_3
PWR1
PWR2
NGFF1
NGFF2
TPM1
OCUUSB1
MPCIE_HD1
MPCIE_HD2
VPP_I2C1
PORT80_LED1
CPU2
CPU1

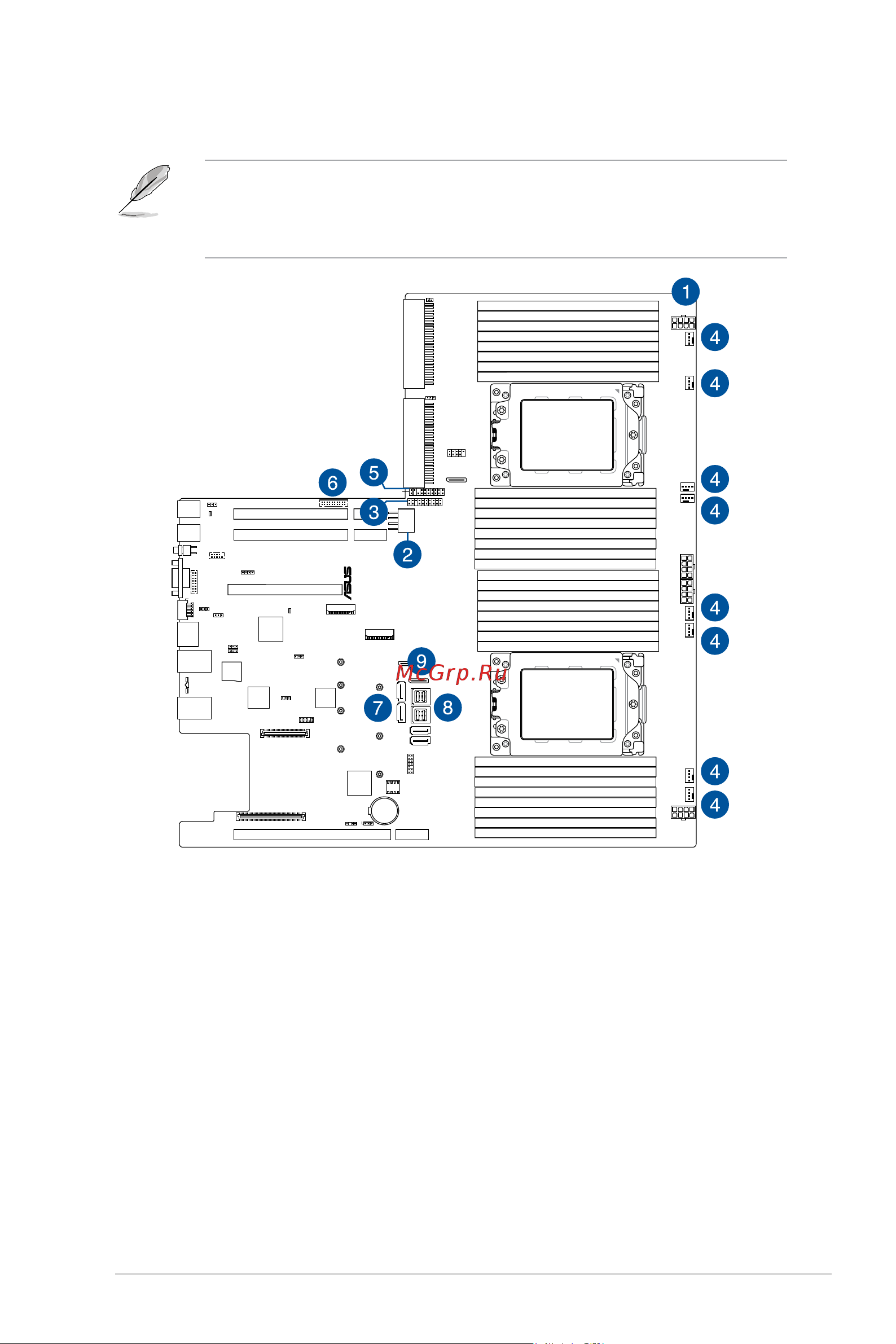

2.6 Cable connections
• The bundled system cables are pre-connected before shipment. You do not need to
disconnect these cables unless you are going to remove pre-installed components to
install additional devices.
• Refer to Chapter 4 for detailed information on the connectors.
Pre-connected system cables
1. 8-pin BPPWR1 power connector (connected to backplane)
2. 8-pin BPPWR2 power connector (connected to for RS700A-E9-RS12V2 only)
3. Panel connector (connected to front I/O board)
4. System fan connectors (from motherboard FAN1-8 to system fans)
5. Auxiliary panel 1 connector (connected to front I/O board)
6. Auxiliary panel 2 connector (connected to front I/O board, for RS700A-E9-RS12V2 only)
7. SATA connectors (one connector connected to backplane, for RS700A-E9-RS4V2 only)
8. ISATA connectors (connected to backplane)
9. OCU-USB to USB connector (connected to front I/O board, for RS700A-E9-RS4V2 only)
