Asus RS700A-E9-RS4V2 [22/192] Storage device status led

Chapter 1: Product Introduction

1-12

RS700A-E9-RS4V2

RS700A-E9-RS12V2

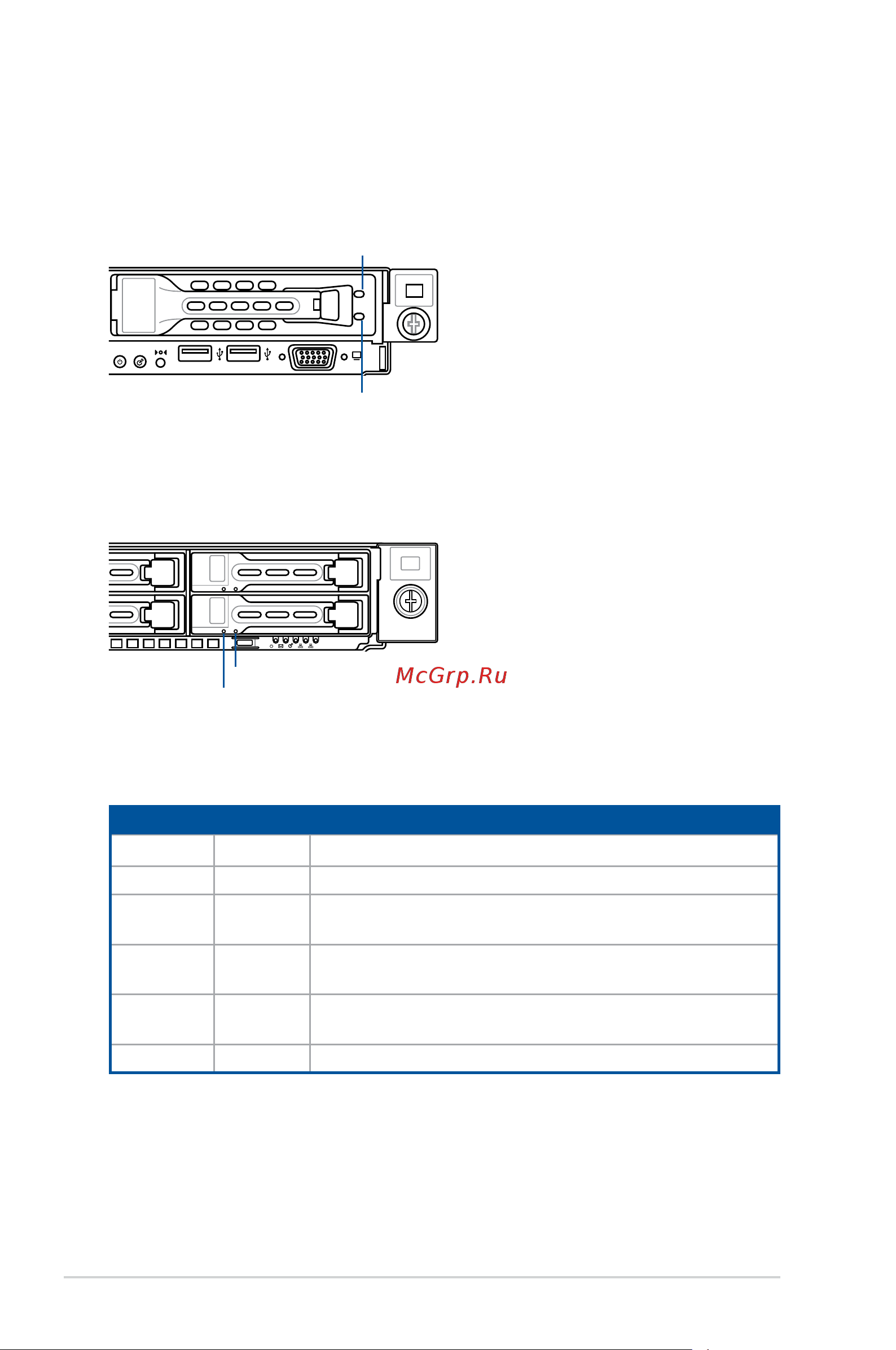

1.7.2 Storage device status LED

SATA/SAS Storage Device LED Description

GREEN ON SATA/SAS storage device power ON

RED ON Storage device has failed and should be swapped immediately

GREEN/

RED

Blinking RAID rebuilding

GREEN/

RED

Blinking Locate

GREEN/

RED

OFF Storage device not found

GREEN Blinking Read/write data from/into the SATA/SAS storage device

Red LED

Green LED
