5-38
Chapter 5: BIOS Setup

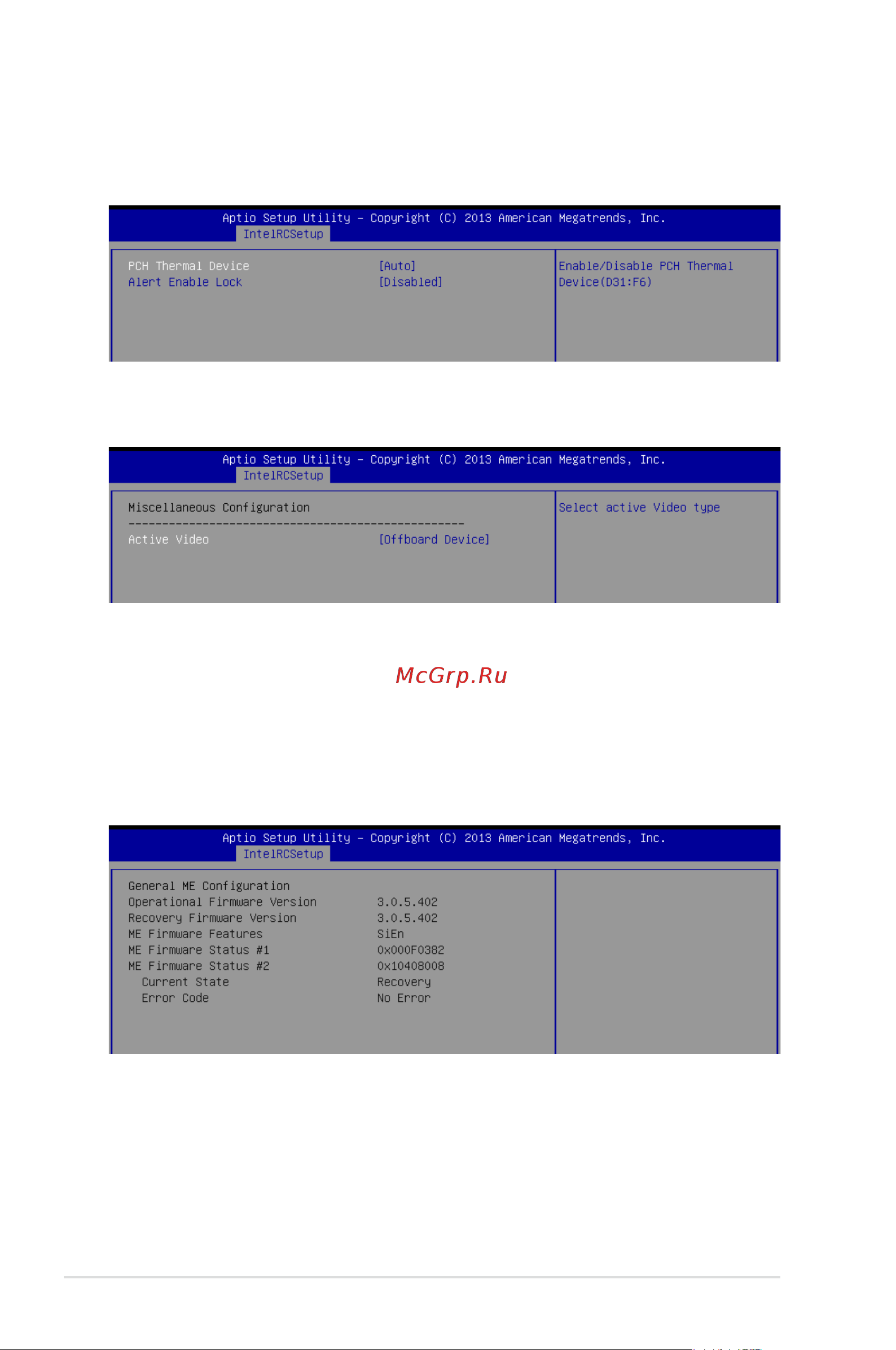

5.5.8 Miscellaneous Configuration
Active Video [Offboard Device]
Allows you to select the video type.
Congurationoptions:[OnboardDevice][OffboardDevice]
5.5.9 Server ME Configuration
Displays the Server ME Technology parameters on your system.
Alert Enable Lock [Disabled]
AllowsyoutolockallAlertEnablesettings.
Congurationoptions:[Disabled][Enabled]
