Chapter 2: Hardware Information
2-16
2.5.2 Installing an ASUS PIKE II card
You can install an ASUS PIKE II card on the provided PCI-E slot onboard.

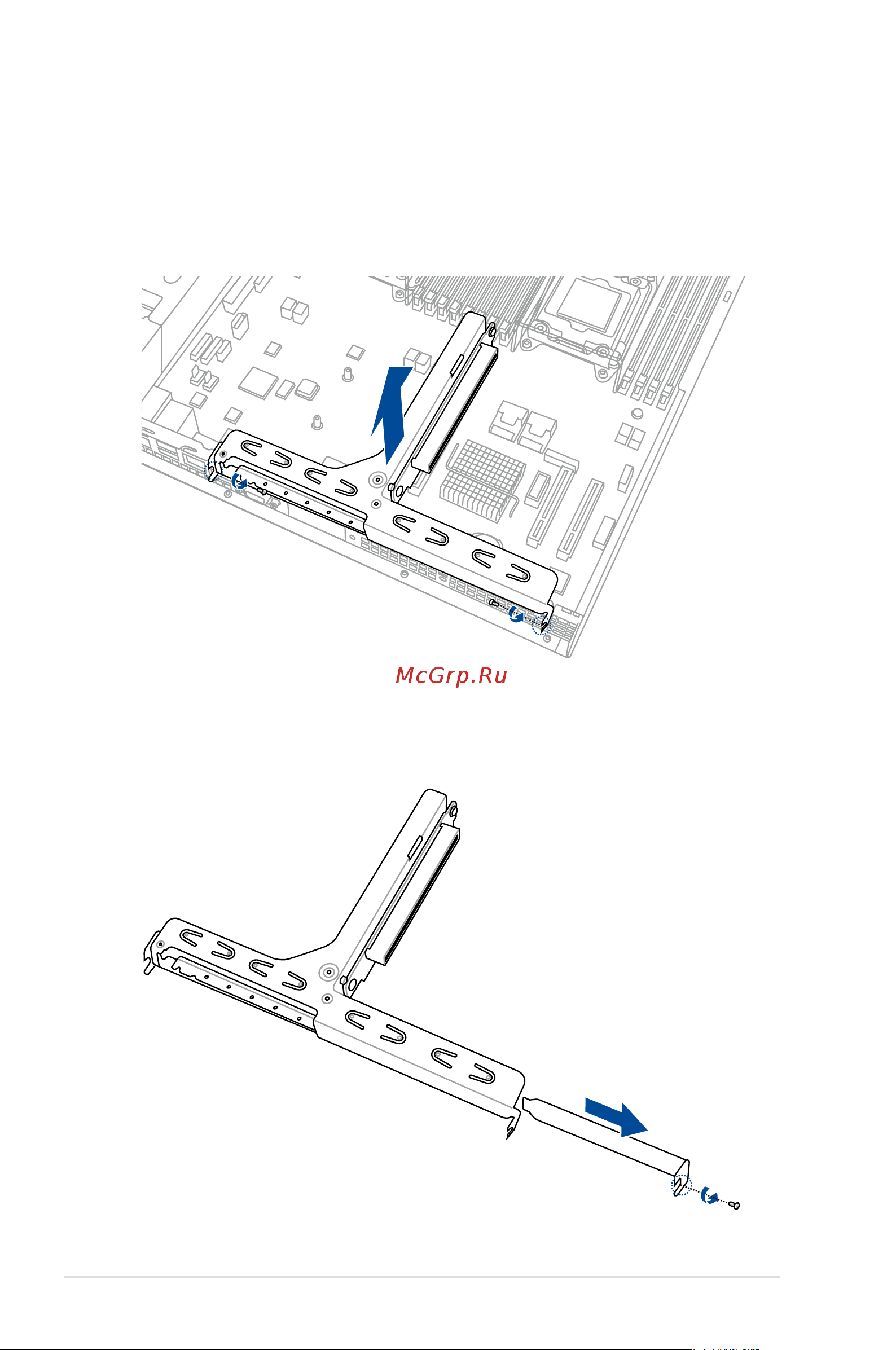

To install an ASUS PIKE II card:
1. Remove two screws on the riser card bracket and put it aside, then remove the riser
card bracket.
2. Remove the screw that secures the metal cover to the riser card bracket, then remove
the metal cover.
