2-21
ASUS RS500-E8 V2 Series
stand screws
LAN ports
LAN port slots
screw holes

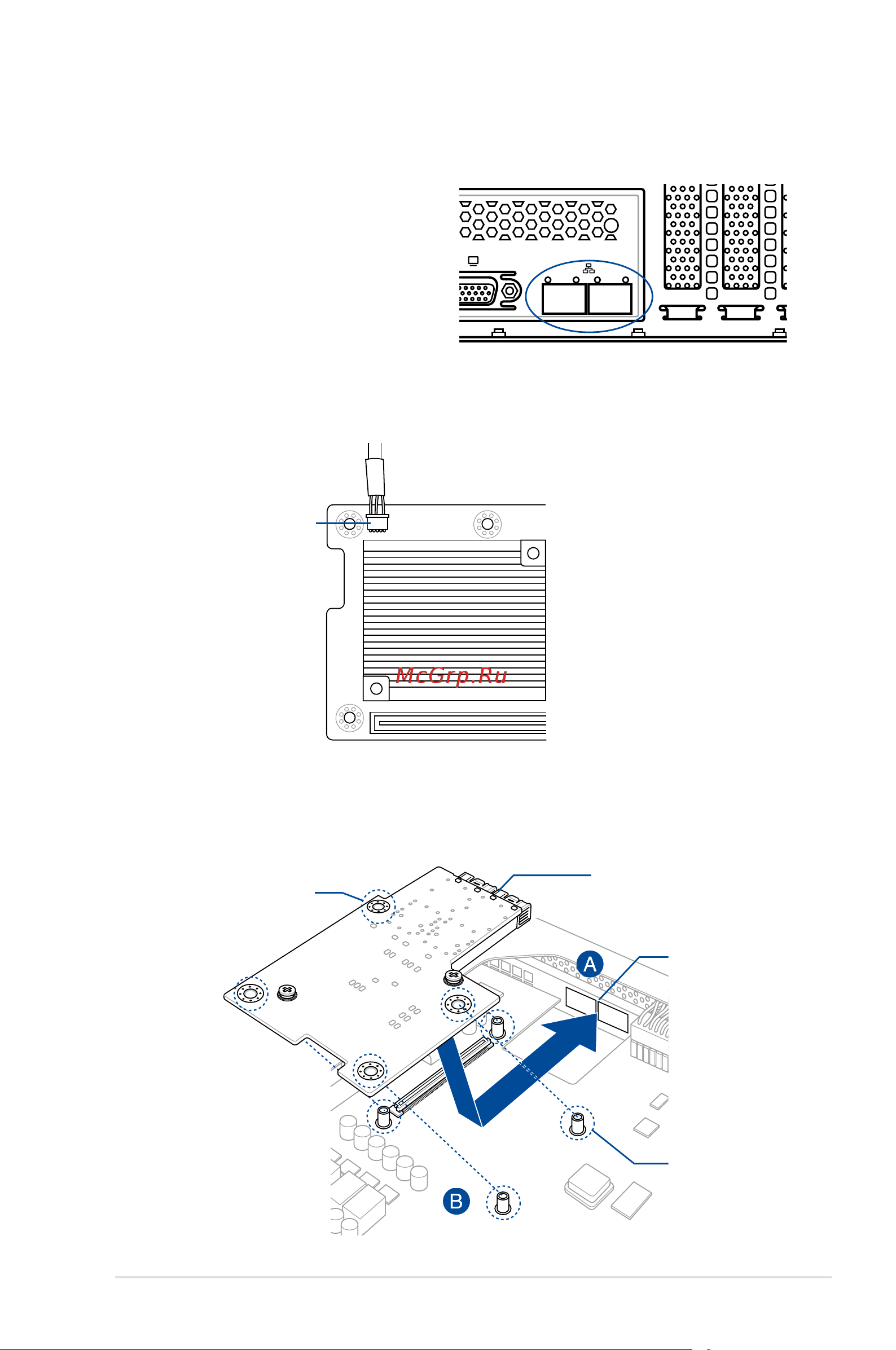

2.5.4 Installing a Mezzanine card
You can install a supported Mezzanine card on the onboard slot.
To install a Mezzanine card:
1. Remove the slot bay from the Mezzanine
card expansion slot.
3. Match and insert the four (4) screw holes on the Mezzanine card into the four (4) stand
screws on the chassis, then insert the Mezzanine card to the slot on the motherboard.
AUXLED_CON1
2. Prepare your Mezzannine card and the signal cable. Connect the signal transmission
end (white) to the AUXLED_CON header on the card.
1234
