2-15
ASUS RS500-E8 V2 Series
2.5 Expansion slot
2.5.1 Installing an expansion card to the riser card bracket
The barebone server comes with a riser card bracket. You need to remove the bracket if you
want to install PCI Express x8 or x16 expansion cards.

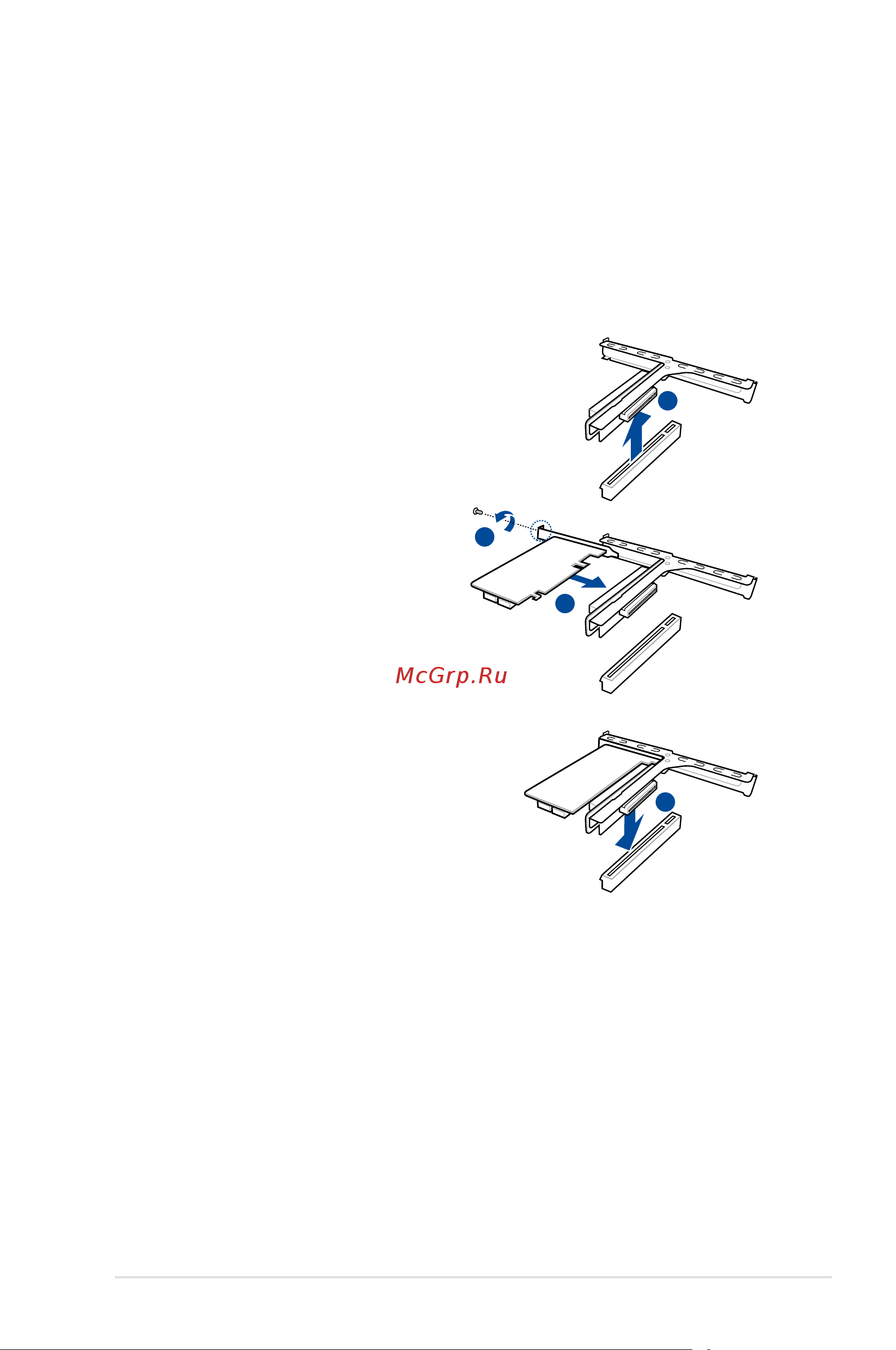

To install a PCI Express x8 or x16 card:
2. Place the riser card bracket on a at
and stable surface, then remove the
screw from the slot bay.
1. Firmly hold the riser card bracket,
then pull it up to detach it from the PCI
Express x16 slot on the motherboard.
4. Install the riser card bracket and
PCI Express card assembly back
into the PCI Express x16 slot on the
motherboard.
3. Install a PCI Express x8 or x16 card to
the bracket as shown, then secure the
card with a screw.
1
2
3
4
