3 ■English

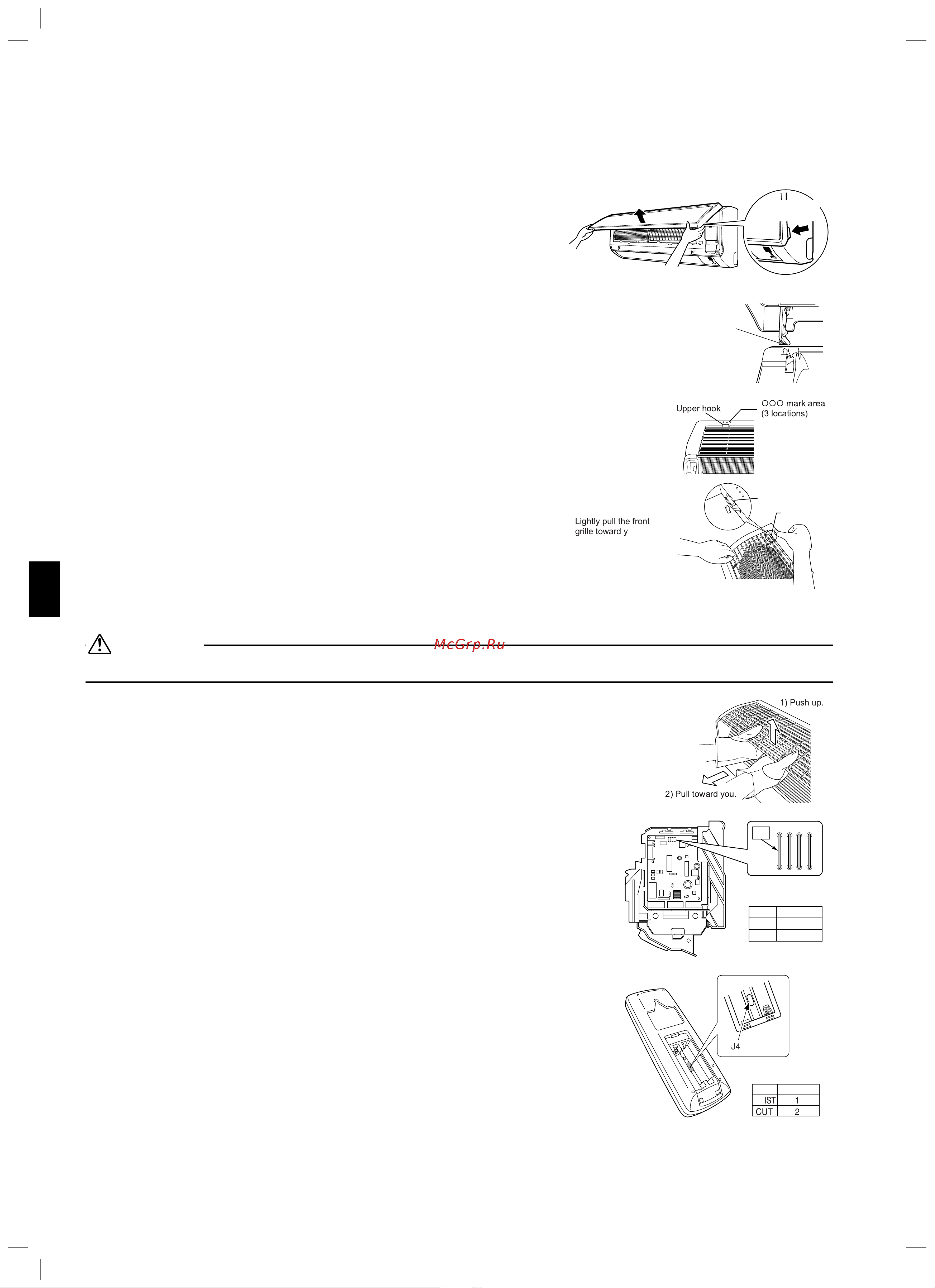

Installation Tips
1.
Removing and installing frontpanel.
• Removalmethod
1) Place yourfingers in the indentations on the main unit (oneeach on the
left andrightsides), and open the panel until it stops.
2) Continue to openthe front panel further while sliding the paneltothe right
and pulling it toward you in ordertodisengagethe rotatingshaft on the
leftside. To disengagethe rotatingshaft on theright side, slide thepanel
to the left whilepulling it toward you.
• Installation method
Align the tabs of the front panelwith the grooves, andpushall theway in. Then
closeslowly. Push the centerofthe lowersurface of thepanel firmly to engage the
tabs.
2.
Removingand installing frontgrille.
• Removalmethod
1) Remove front paneltoremove the airfilter.
2) Remove the screws (2) from thefrontgrille.
3) In frontofthe mark of the front grille, thereare 3upper hooks.
Lightly pull the front grille toward youwith one hand, and push down on
thehooks withthe fingers of your other hand.
When there is no work space because the unitisclose to ceiling
CAUTION
Be sure to wear protection gloves.
Place both handsunder thecenter of thefront grille, andwhile pushing up,pull it towardyou.
• Installation method
1) Install thefrontgrille and firmly engage the upper hooks (3 locations).
2)
3) Installthe air filter andthenmountthe front panel.
3.
How to set the different addresses.
When two indoorunits are installed in oneroom, thetwo wireless remote controllers
can be set fordifferent addresses.
1) In the same wayaswhenconnecting to an HA system, remove the metal plate
electricalwiring cover.
2) Cut theaddress jumper (JA) on theprinted circuitboard.
3) Cut theaddress jumper (J4) in the remote controller.
Indentations on
the main unit
Push the rotating
shaft of the front
panel into the groove.
Rotating shaft
333
4&'6 &'G&
8@ 52#&$?23%7
C((G' A226
Lightly pull the front
grille toward youwith
one hand, and push
down on the hooks with
the fingers of your other
hand. (3 locations)
Push
down.
Upper hook
Upper hook
%' !-/" -20
#' !-,, .(+)1& *(-0
ADDRESS
EXIST
CUT
1
2
JA
JA
ADDRESS
J4
EXIST
CUT
1
2
J4
Install 2 screws of the front grille.
