Daikin FTXB25B1V1 [9/38] How to replace the drain plug and drain hose

Daikin FTXB25BV1 [9/38] How to replace the drain plug and drain hose
■
  
     
        
   
             
 
    
  
    
     
     
     

   
    
       
           

         
         
        
    
   
   
           

    
•Replacing onto the left side
1) Remove the insulation fixing screws on the right
to remove the drain hose.
2) Reattach the insulation fixing screwonthe right
as it was.
*(Forgetting to attach this maycause water
leakages.)
3) Remove the drain plug on the left side and
attach it to the right side.
4) Insertthe drain hose and tighten with included
indoor unit fixing screw.

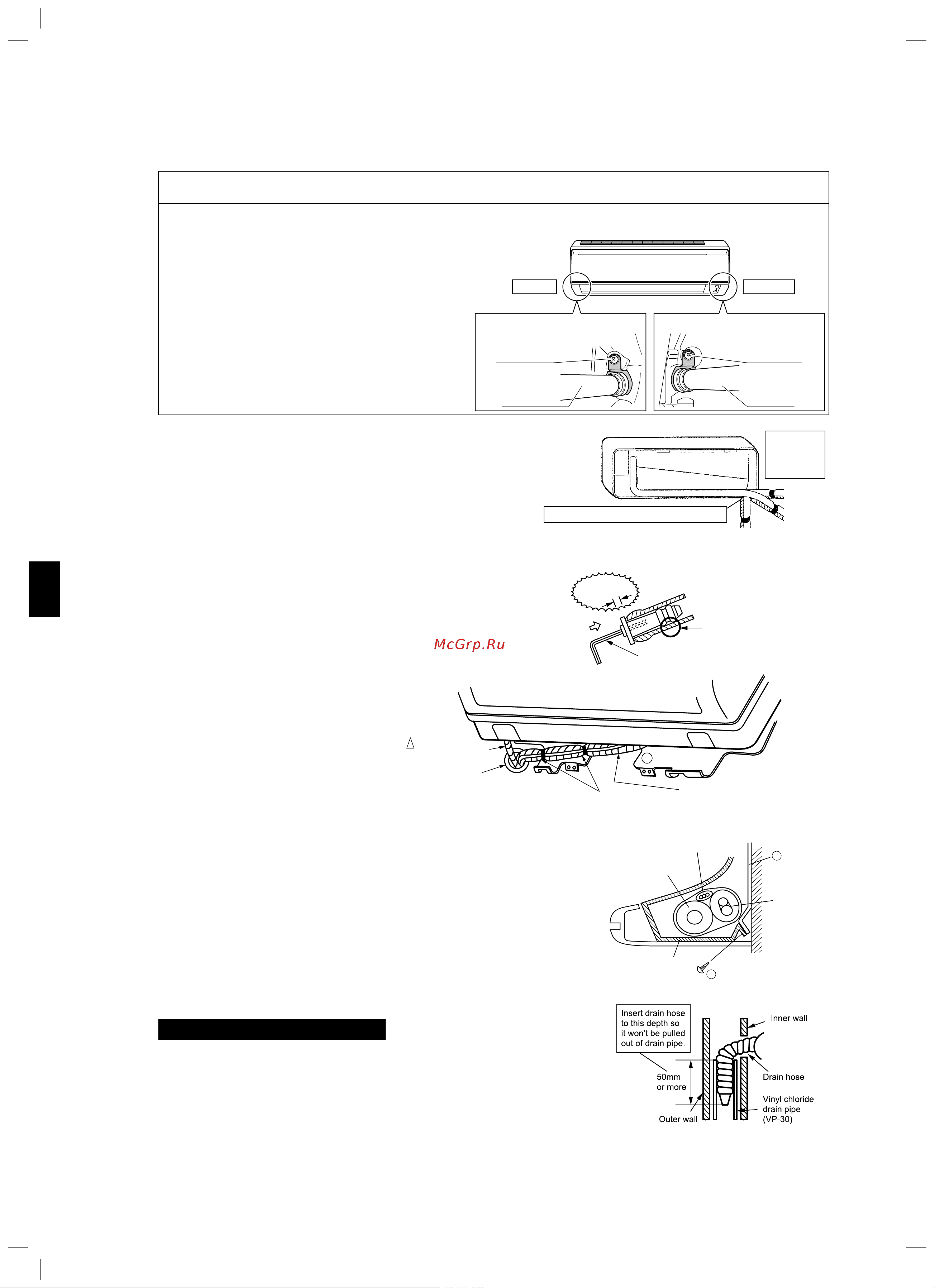

Howtoreplace the drain plug and drain hose.
Drain hose attachment position
*The drain hose is on the backofthe unit.
Front side of unit
Attachment on the right side (factorydefault)
Attachment on the left side
Drain hose Drain hose
Indoor unit
fixing screw
Insulation
fixing screw
Right sideLeft side
Remove pipe port cover here for left-bottom piping.
Remove pipe
port cover
here for left-
side piping.
Left-bottom piping
Left-side
piping
Left-back
piping
How to set drain plug.
No gap.
Do not apply lubricating
oil (refrigeration oil)
when inserting.
Application of causes
deterioration and drain
leakage of the plug.
Insert ahexagon wrench (4mm).
Drain
hose
Caulk this hole
with putty or
caulking material.
Bind with vinyl
tape.
A
Mounting plate
Wrap insulating tape around the
bent portion of refrigerant pipe.
Overlap at least half the width of
the tape with each turn.
Refrigerant
pipes
Drain hose
Bottom frame
HM4 × 12L (2 point)
Mounting
plate
A
Inter-unit wiring
