4

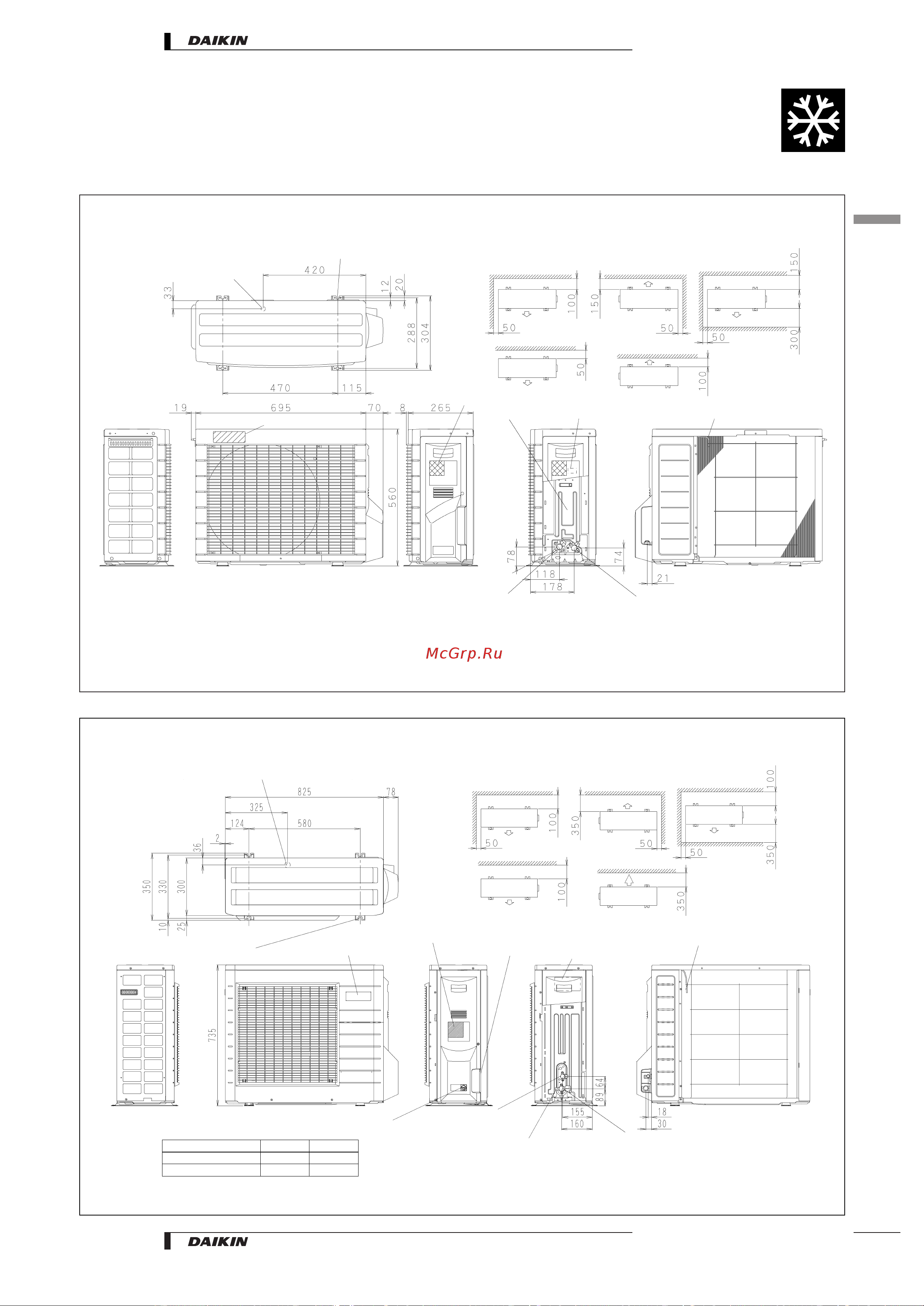

Dimensional drawings
RKS25,35
unit (mm)
3D038641A
Minimum space for air passage
Wall height on air outlet side = less
than 1200
Drain outlet
(I.D. J 15.9 hose for connection)
4 x holes for anchor bolts (M8 or M10)
Name plate
Terminal strip with earth
terminal
Wiring inlet
Gas stop valve
(JB CuT)
Liquid stop valve
(JA CuT)
Service port
Outdoor air thermistor
Brand name label
In case of removing
stop valve cover
RKS50,60,71
unit (mm)
3D034257B
Minimum space for air passage
Wall height on air outlet side = less
than 1200
Drain outlet
(I.D. J 15.9 hose for connection)
4 x holes for anchor bolts (M8 or M10)
Name plate
Terminal strip with earth
terminal
Wiring inlet
Gas stop valve
(JB CuT)
Liquid stop valve
(JA CuT)
Service port
Outdoor air thermistor
Brand name label
In case of removing stop
valve cover
Indication label (refrigerant)
Model A B
RKS50, RKS60 6.4 12.7
RKS71 6.4 15.9
•
Pair Application • R-410A • RKS25-35-50-60-71BVMB
4
15
• Split - Sky Air • Outdoor Units
