7

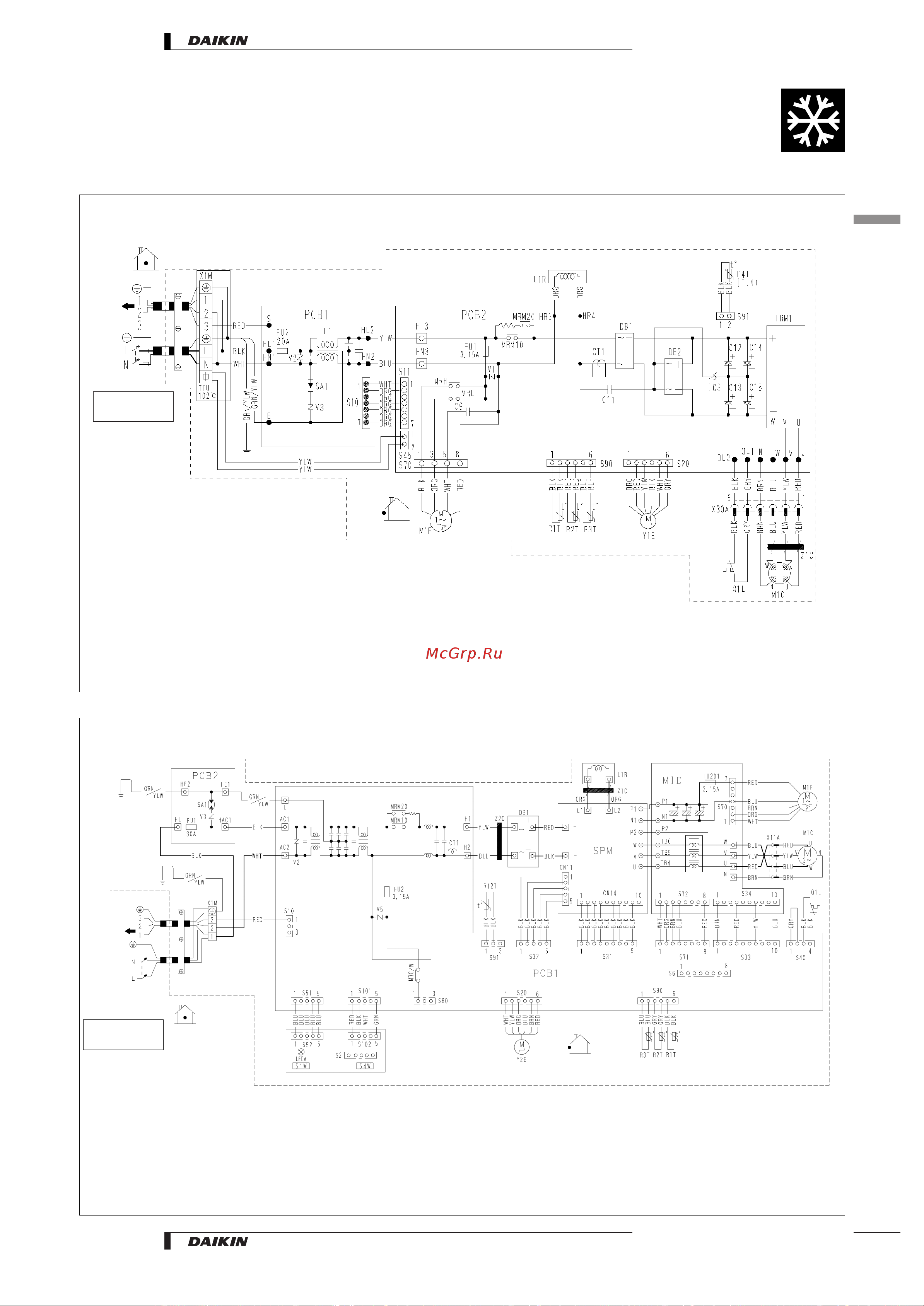

Wiring diagrams
3D038018B
RKS25,35
R
: Protective earth
C9, C11
C12∼C15 : Capacitor
CT1 : Current transformer
DB1, DB2 : Diode bridge
F1U, F2U : Fuse
L : Live
L1 : Coil
L1R : Reactor
M1C : Compressor motor
M1F : Fan motor
PCB1 : Printed circuit board
MRH, MRL,
MRM10, MRM20 : Magnetic relay
N : Neutral
PCB2 : Printed circuit board
Q1L : Overload protector
R1T, R2T, R3T, R4T : Thermistor
S10, S11, S20, S45
S70, S90, S91
HL3, HN3 : Connector
SA1 : Surge arrester
Z1C : Ferrite core
IC3 : Solid state relay
TFU : Thermal fuse
TRM1 : Transistor module
V1, V2, V3 : Varistor
Y1E : Electronic expansion valve coil
X1M : Terminal strip
g
Field wiring
Indoor
Outdoor
(outdoor)
(Condenser)
(discharge)
3D037866D
RKS50,60,71
R
: Protective earth
Z1C, Z2C : Ferrite core
X1M : Terminal strip
Y2E : Electronic expansion valve coil
V2∼V5 : Varistor
F1U, F2U, FU201 : Fuse
HE1, HE2, HAC1,
E, AC1, AC2
H1, H2, HL
L1, L2, X11A : Connector
MRM10, MRM20,
MRC/W : Magnetic relay
R1T∼R3T : Thermistor
S2∼S102 : Connector
LEDA : Pilot lamp
PCB1, PCB2 : Printed circuit board
L : Live
N : Neutral
S1W : Forced operation on/off switch (SW1)
S4W : Local setting
SA1 : Surge arrester
DB1 : Diode bridge
M1C : Compressor motor
M1F : Fan motor
L1R : Reactor
g
Field wiring
Indoor
Power supply
∼50Hz 220-240V
∼60Hz 220-230V
Outdoor
(outdoor)
(Condenser)
(discharge)
Q1L : Overload protector
CT1 : Current transformer
MID : Molded interconnect device
SPM : System power module
To indoor unit
•
Pair Application • R-410A • RKS25-35-50-60-71BVMB
7
19
• Split - Sky Air • Outdoor Units
