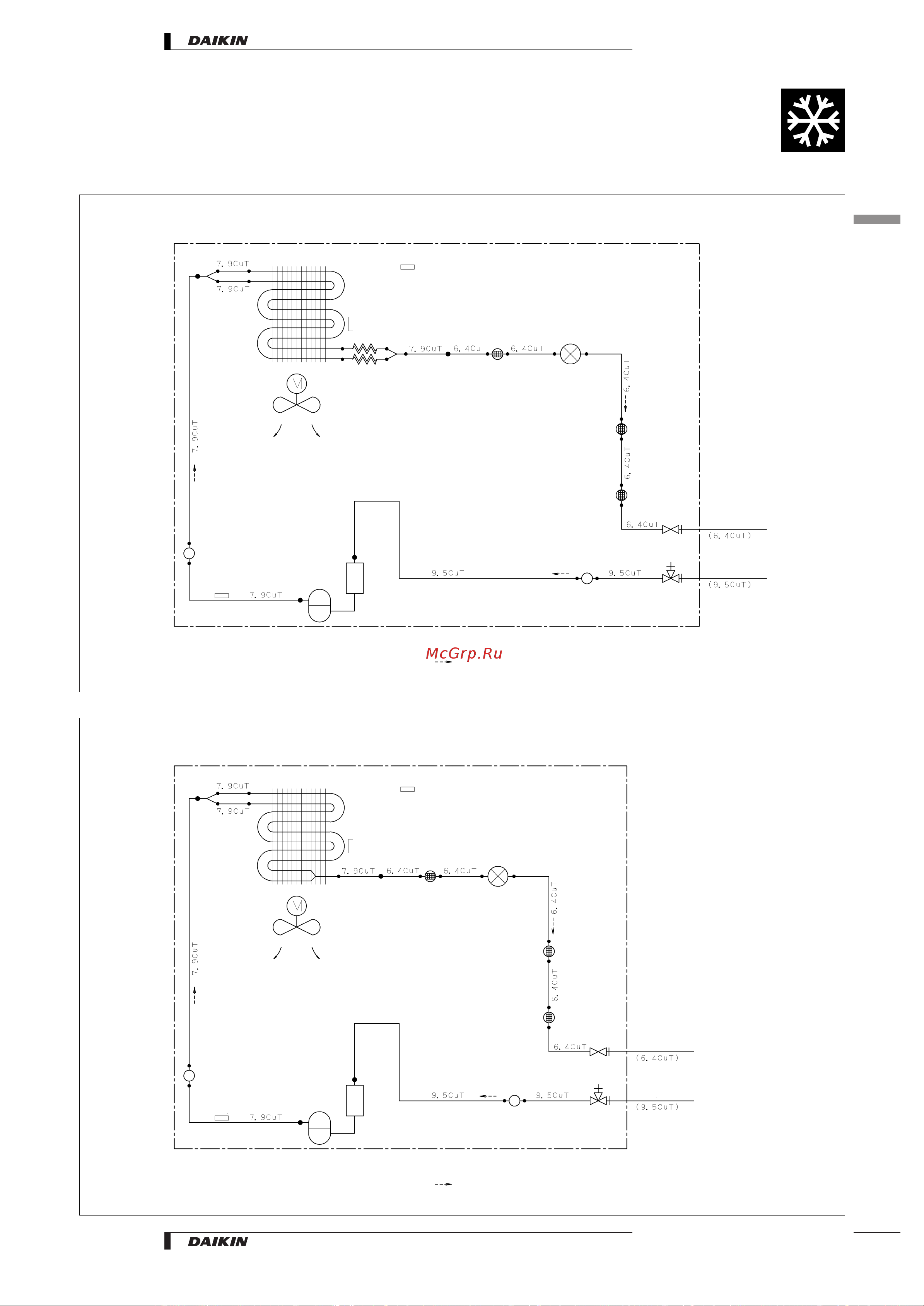

Daikin RKS50BVMB [19/26] Piping diagrams
![Daikin RKS50BVMB [19/26] Piping diagrams](/views2/1773513/page19/bg13.png)
6
Piping diagrams
3D039303
RKS25
Outdoor temperature thermistor
Heat exchanger
Propeller fan
Capillary tube 1
Liquid stop
valve
Field piping
Field piping
Accumulator
Compressor
Muffler
Refrigerant flow
Cooling
Discharge pipe
thermistor
Heat exchanger thermistor
Capillary tube 2
Muffler
Motor operated valve
Muffler with filter
Outdoor unit
Gas stop
valve
Muffler with filter
Muffler with
filter
3D039304
RKS35
Outdoor temperature thermistor
Heat exchanger
Propeller fan
Liquid stop
valve
Field piping
Field piping
Accumulator
Compressor
Muffler
Refrigerant flow
Cooling
Discharge pipe
thermistor
Heat exchanger thermistor
Muffler
Motor operated valve
Muffler with filter
Outdoor unit
Gas stop
valve
Muffler with filter
Muffler with
filter
•
Pair Application • R-410A • RKS25-35-50-60-71BVMB
6
17
• Split - Sky Air • Outdoor Units
