Daikin RKS50BVMB [26/26] Installation

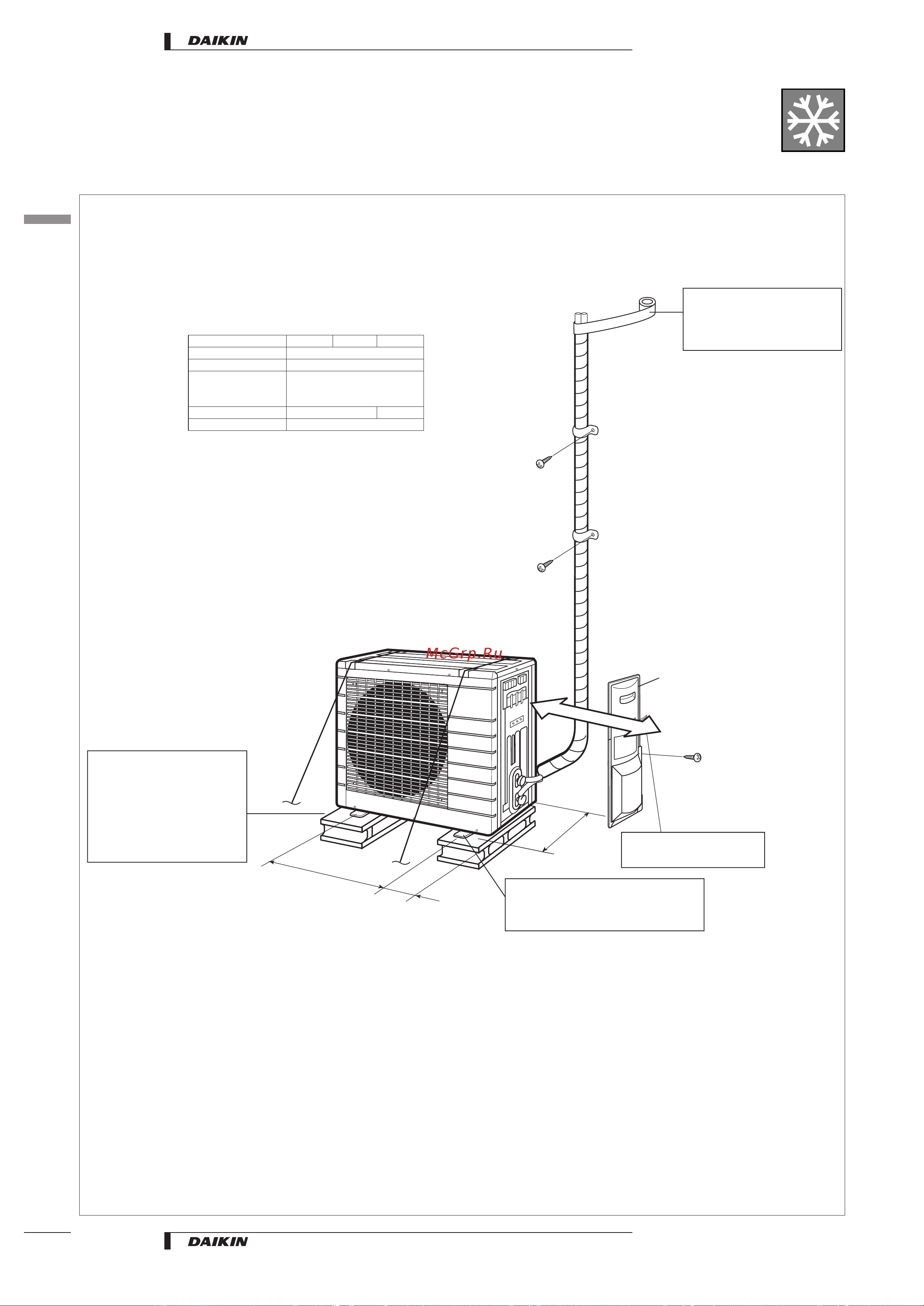

Outdoor unit installation drawings

Wrap the installation pipe with the

finishing tape from bottom to top

Model 50 class 60 class 71 class

Max. allowable length 30m

Max. allowable height 20m

Additional refrigerant required

for refrigerant pipe exceeding

10 m in length.

20 g/m

Gas pipe O.D. 12.7 mm O.D. 9.5 mm

Liquid pipe O.D. 6.4 mm

* Be sure to add the proper amount of additional refrigerant.

Failure to do so may result in reduced performance.

In sites with poor drainage, use block bases for

outdoor unit. Adjust foot height until the unit is

leveled. Otherwise, water leakage or pooling of

water may occur.

Where there is a danger of the unit falling, use foot bolts, or

wires.

Allow space for piping and electrical

servicing.

Service lid

Foot bolt-hole

centres

Foot bolt-hole centres

From unit’s side

250 mm from wall

RKS50,60,71B

•

Pair Application • R-410A • RKS25-35-50-60-71BVMB

Installation

• Split - Sky Air • Outdoor Units
