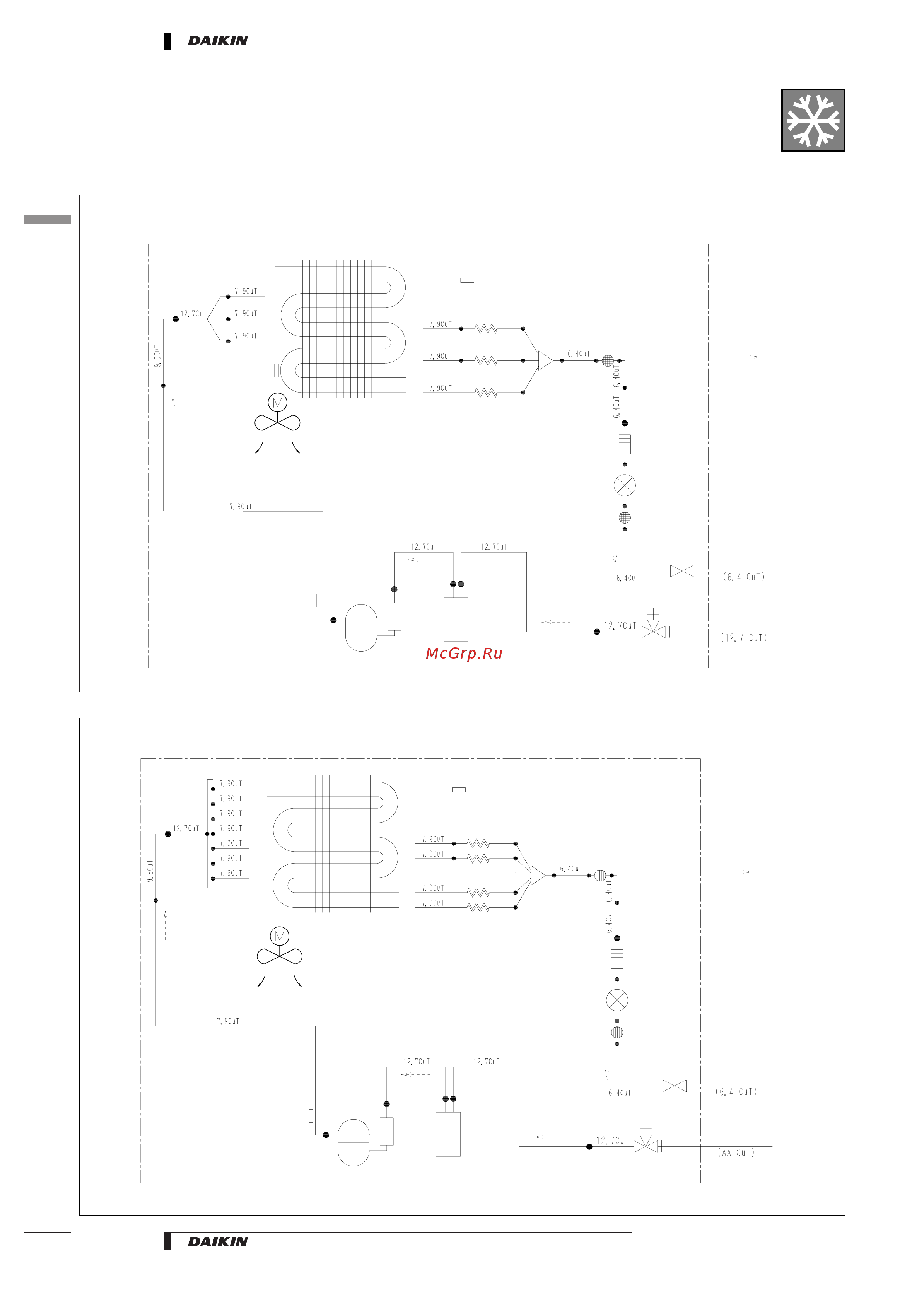

Daikin RKS50BVMB [20/26] Piping diagrams
![Daikin RKS50BVMB [20/26] Piping diagrams](/views2/1773513/page20/bg14.png)
3D037835A
RKS50
Outdoor temperature thermistor
Heat exchanger
Propeller fan
Capillary tube 1
Liquid stop valve
Field piping
Field piping
Gas stop valve with service port
Accumulator
Compressor
Capillary tube 3
Refrigerant flow
Cooling
Discharge pipe
thermistor
Heat exchanger thermistor
Capillary tube 2
Muffler with
filter
Motor operated valve
Muffler with
filter
Filter
Outdoor unit
3D037836A
RKS60,71
Outdoor temperature thermistor
Heat exchanger
Propeller fan
Capillary tube 1
Liquid stop valve
Field piping
Field piping
Gas stop valve with service port
Accumulator
Compressor
Capillary tube 3
Refrigerant flow
Cooling
Discharge pipe
thermistor
Heat exchanger thermistor
Capillary tube 2
Capillary tube 4
Muffler with
filter
Motor operated valve
Muffler with filter
Filter
Outdoor unit
•
Pair Application • R-410A • RKS25-35-50-60-71BVMB
6
Piping diagrams
6
18
• Split - Sky Air • Outdoor Units
