FTXG-J, CTXG-J Series SiBE12-816_C
107 Operation Manual

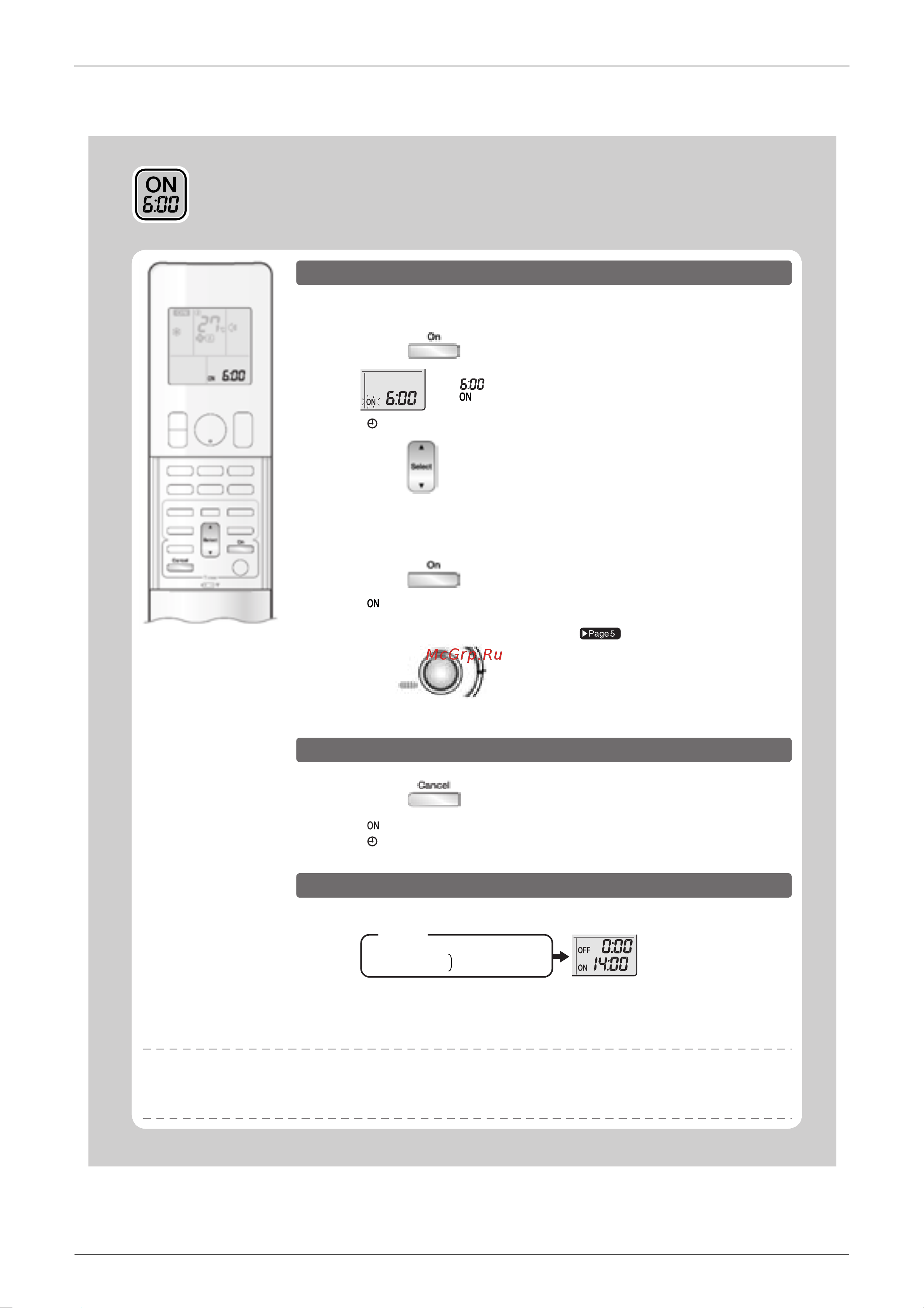

2.10 ON TIMER Operation
22
ON TIMER Operation
To use ON TIMER operation
• Check that the clock is correct.
If not, set the clock to the present time.
1.
Press .
• “ ” is displayed on the LCD.
• “ ” blinks.
• “ ” and day of the week disappear from the LCD.
• Each pressing of either button increases or decreases the time setting by 10 minutes.
Holding down either button changes the setting rapidly
.
3.
Press again.
• “ ” and setting time are displayed on the LCD.
• The multi-monitor lamp blinks twice.
The TIMER lamp periodically lights orange.
Display
To cancel ON TIMER operation
Press .
• “ ” and setting time disappear from the LCD.
• “ ” and day of the week are displayed on the LCD.
To combine ON TIMER and OFF TIMER
• A sample setting for combining the 2 timers is shown below.
(Example)
Present time: 23:00 (The unit operating)
OFF TIMER at 0:00
ON TIMER at 14:00
Combined
NOTE
In the following cases, set the timer again.
• After a breaker has turned off.
• After a power failure.
• After replacing batteries in the remote controller.
2.
Press until the time setting reaches the
point you like.
