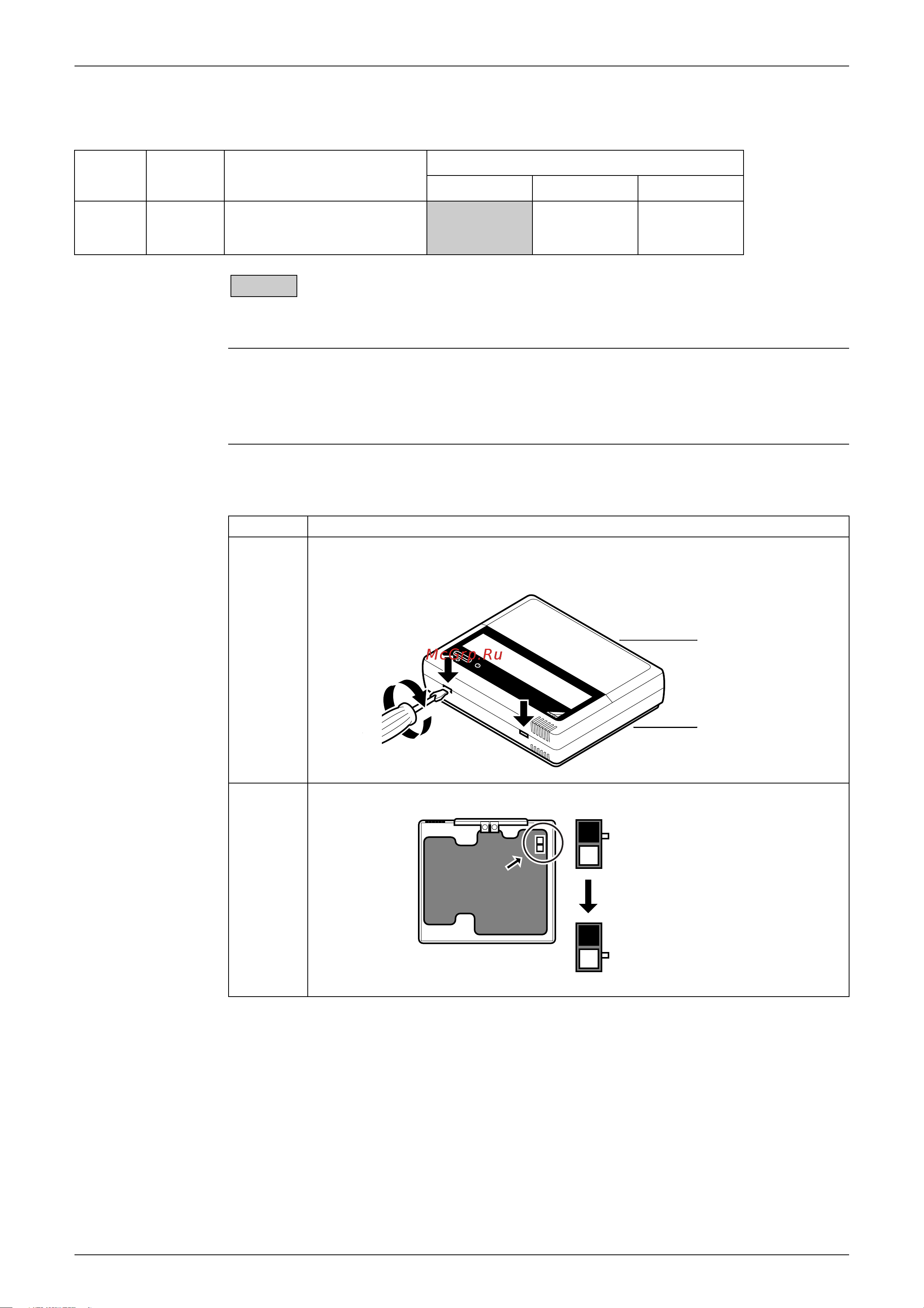

SiBE12-816_C Field Settings
Trial Operation and Field Settings 284
4.2.3 Overview of the Field Settings
: factory setting
4.2.4 MAIN / SUB Setting when Using Two Remote Controllers
Situation The MAIN / SUB setting is necessary when one indoor unit is controlled by two remote
controllers. When you use two remote controllers (control panel and separate remote
controller), set one to MAIN and the other to SUB. You can do this by setting the switch on the
remote controller’s PCB.
Setting The remote controllers are factory set to MAIN, so you only have to change one remote
controller from MAIN to SUB. To change a remote controller from MAIN to SUB, proceed as
follows:
Mode
No.
First
code No.
Description of the setting
Second code No.
01 02 03
10 (20) 0 Filter cleaning sign time
Light
contamination
(Approx. 2,500hrs)
Heavy
contamination
(Approx. 1,250hrs)
—
Step Action
1 Insert a flat screwdriver into the groove between the upper and lower part of the remote
controller, as shown in the illustration below. Gently pry off the upper part of the
controller, working from the two possible positions.
2 Set the [MAIN / SUB changeover] switch on the PCB to “S”.
(R11738)
Upper part of the
remote controller
Lower part of the
remote controller
S
M
S
M
Set the switch to SUB.
(R11739)
The switch is set to
MAIN (factory setting)
