FTXG-E, CTXG-E, FLK(X)S, FDK(X)S Series SiBE12-816_C
157 Operation Manual

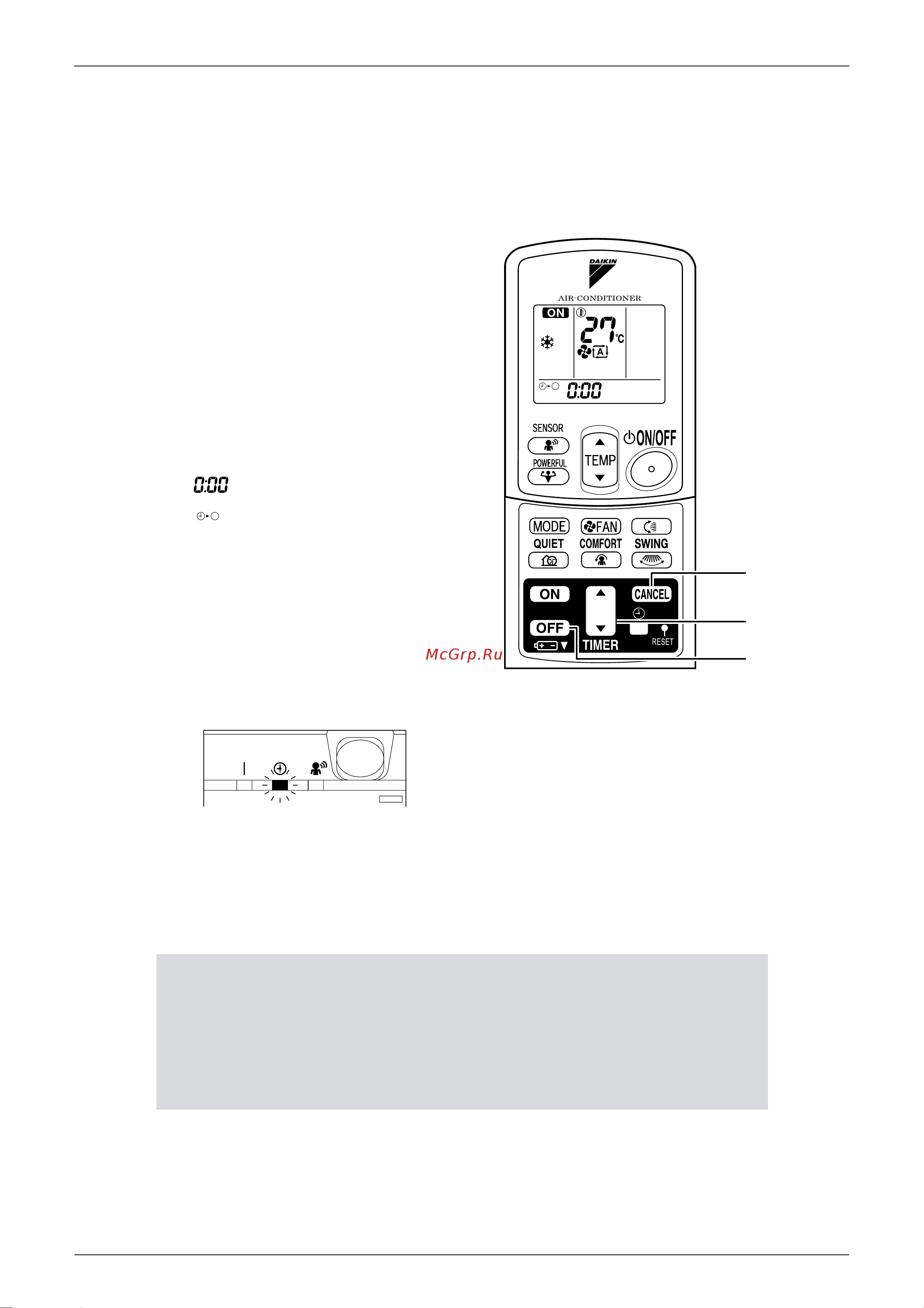

4.9 TIMER Operation
TIMER Operation
1. Press “OFF TIMER button”.
is displayed.
blinks.
3. Press “OFF TIMER button” again.
• The TIMER lamp lights up.
To cancel the OFF TIMER operation
4. Press “CANCEL button”.
• The TIMER lamp goes off.
NOTE
4
2
1, 3
Timer functions are useful for automatically switching
the air conditioner on or off at night or in the morning.
You can also use OFF TIMER and ON TIMER in
combination.
To use OFF TIMER
operation
2. Press “TIMER Setting button”
until the time setting reaches
the point you like.
• Every pressing of either button increases or
decreases the time setting by 10 minutes.
Holding down either button changes the
setting rapidly.
• Check that the clock is correct.
If not, set the clock to the present time.
• When TIMER is set, the present time is not displayed.
• Once you set ON, OFF TIMER, the time setting is kept in the memory. (The memory is canceled
when remote controller batteries are replaced.)
• When operating the unit via the ON/OFF Timer, the actual length of operation may vary from
the time entered by the user.
NIGHT SET MODE
When the OFF TIMER is set, the air conditioner automatically adjusts the temperature setting (0.5˚C
up in COOL, 2.0˚C down in HEAT) to prevent excessive cooling (heating) for your pleasant sleep.
