SiBE12-816_C Service Check Function
Service Diagnosis 190

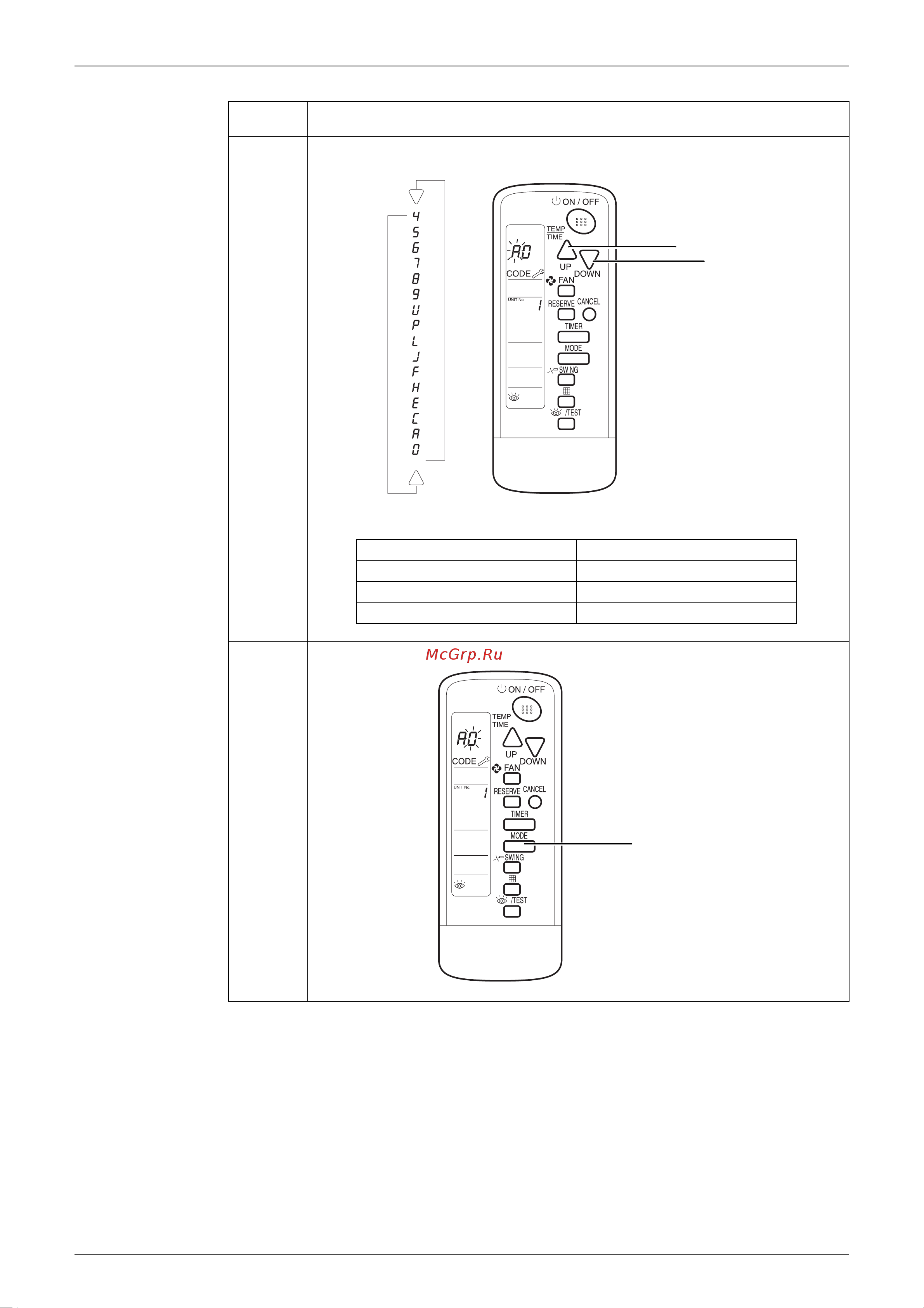

4 Press the UP or DOWN button to change the error code upper digit until the receiver of
the remote controller starts to beep.
5 Press the MODE button. The right “0” (lower digit) indication of the error code blinks.
Step Action
UP button
DOWN button
(R11289)
UP
DOWN
If you hear... Then...
2 short beeps The upper digit matches.
1 short beep No digits match.
1 continuous beep Both upper and lower digits match.
MODE button
(R11290)
