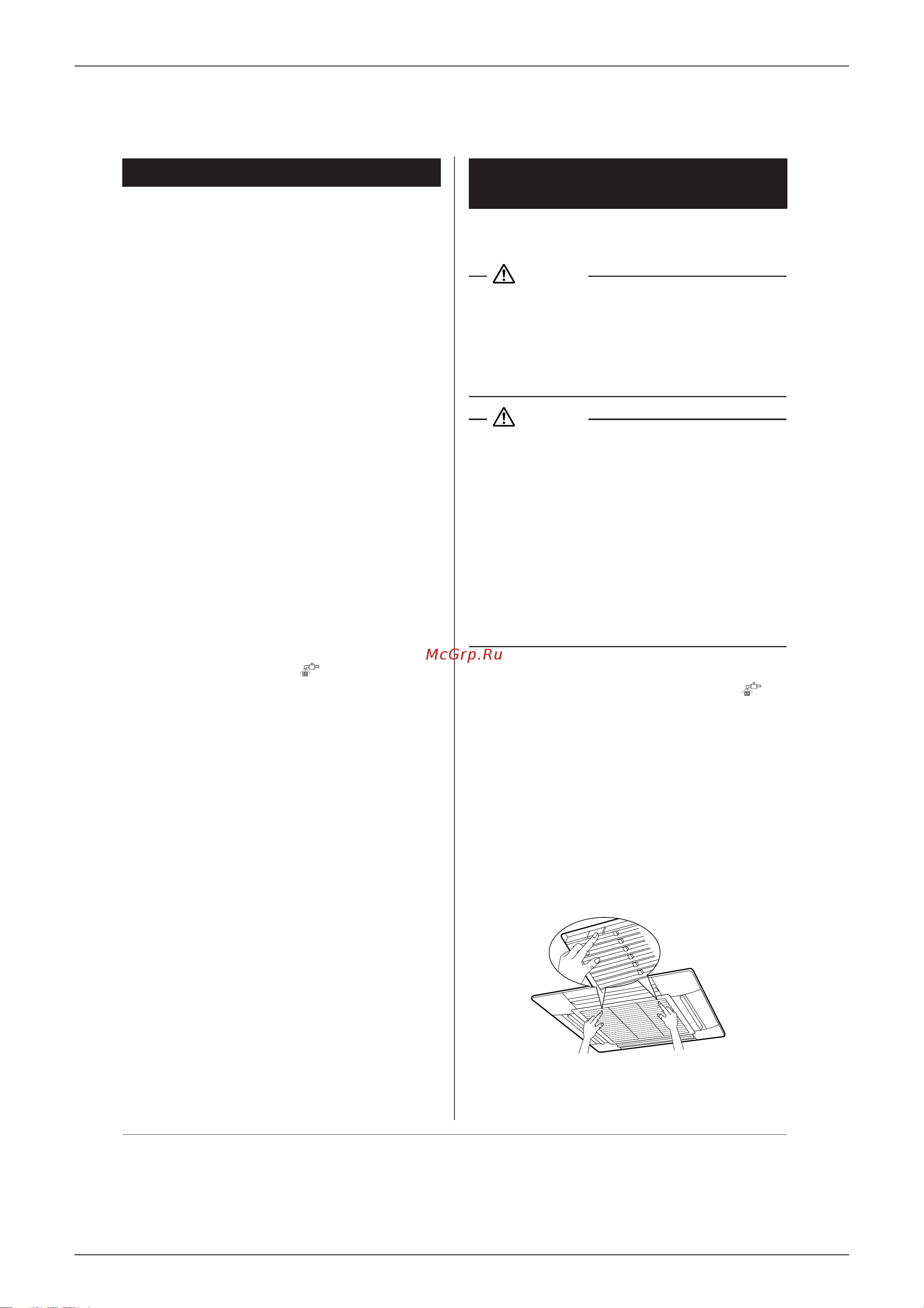

SiBE12-816_C FFQ Series
Operation Manual 168
8
WARNING
CAUTION
7. 8.
MAINTENANCE
(FOR SERVICE PERSONNEL)
OPTIMUM OPERATION
Observe the following precautions to ensure the
system operates.
ONLY A QUALIFIED SERVICE PERSON IS
ALLOWED TO PERFORM MAINTENANCE
HOW TO CLEAN THE AIR FILTER
Clean the air filter when the display shows “ ”
(TIME TO CLEAN AIR FILTER).
1. Open the suction grille.
Push it downward slowly while pressing
horizontally the buttons provided on two spots.
(Follow the same procedure for closing.)
It will display that it will operate for a set amount of
time.
Increase the frequency of cleaning if the unit is
installed in a room where the air is extremely
contaminated.
If the dirt becomes impossible to clean, change the
air filter (Air filter for exchange is optional)
• Before touching any of connection wirings, be
sure to turn off all power supply switches.
• Contact professional personnel about
attachment of accessories and be sure to use
only accessories specified by the manufacturer.
If a defect results from your own workmanship, it
may result in water leaks, electric shock or fire.
• Before cleaning, be sure to stop unit operation,
turn the breaker off or remove the power cord.
Otherwise, an electric shock and injury may
result.
• Do not wash the air conditioner with water, as
this may result in electric shocks or fire.
• Consult your dealer regarding cleaning the
inside of the air conditioner.
Improper cleaning may cause breakage of plastic
parts, water leakage and other damage as well as
electric shocks.
Take care of scaffolding and exercise caution
when working high above ground level.
• Adjust the room temperature properly for a
comfortable environment. Avoid excessive
heating or cooling.
• Prevent direct sunlight from entering a room during
cooling operation by using curtains or blinds.
• Ventilate the room regularly.
Using the unit for long periods of time requires
attentive ventilation of the room.
• Do not place items that might be damaged by
water under the indoor unit.
Water may condensate and drip if the humidity
reaches 80% or if the drain exit gets clogged.
• Keep doors and windows closed. If the doors and
windows remain open, room air will flow out and
cause to decrease the effect of cooling and heating.
• Do not place other heaters directly below the
indoor unit.
They may deform due to the heat.
• Never place objects near the air inlet and the air
outlet of the unit. It may cause deterioration in the
effect or stop in the operation.
• Turn off the main power supply switch when it is
not used for long periods of time. When the main
power switch is turned on, some watts of
electricity is being used even if the system is not
operating. Turn off the main power supply switch
for saving energy. When reoperating, turn on the
main power supply switch 6hours before operation
for smooth running (Refer to MAINTENANCE).
• When the display shows “ ” (TIME TO CLEAN
AIR FILTER), ask a qualified service person to
clean the filters (Refer to MAINTENANCE).
• Fully use the function of air flow direction adjust.
Cold air gathers on the floor, and warm air
gathers in the ceiling.
Set the air flow direction parallel during cooling or
dry operation, and set it downwards during
heating operation.
Do not let the air blow directly to a person.
• It takes time for the room temperature to reach
the set temperature.
We recommend starting the operation in advance
using timer operation.
