FFQ Series SiBE12-816_C
167 Operation Manual
7

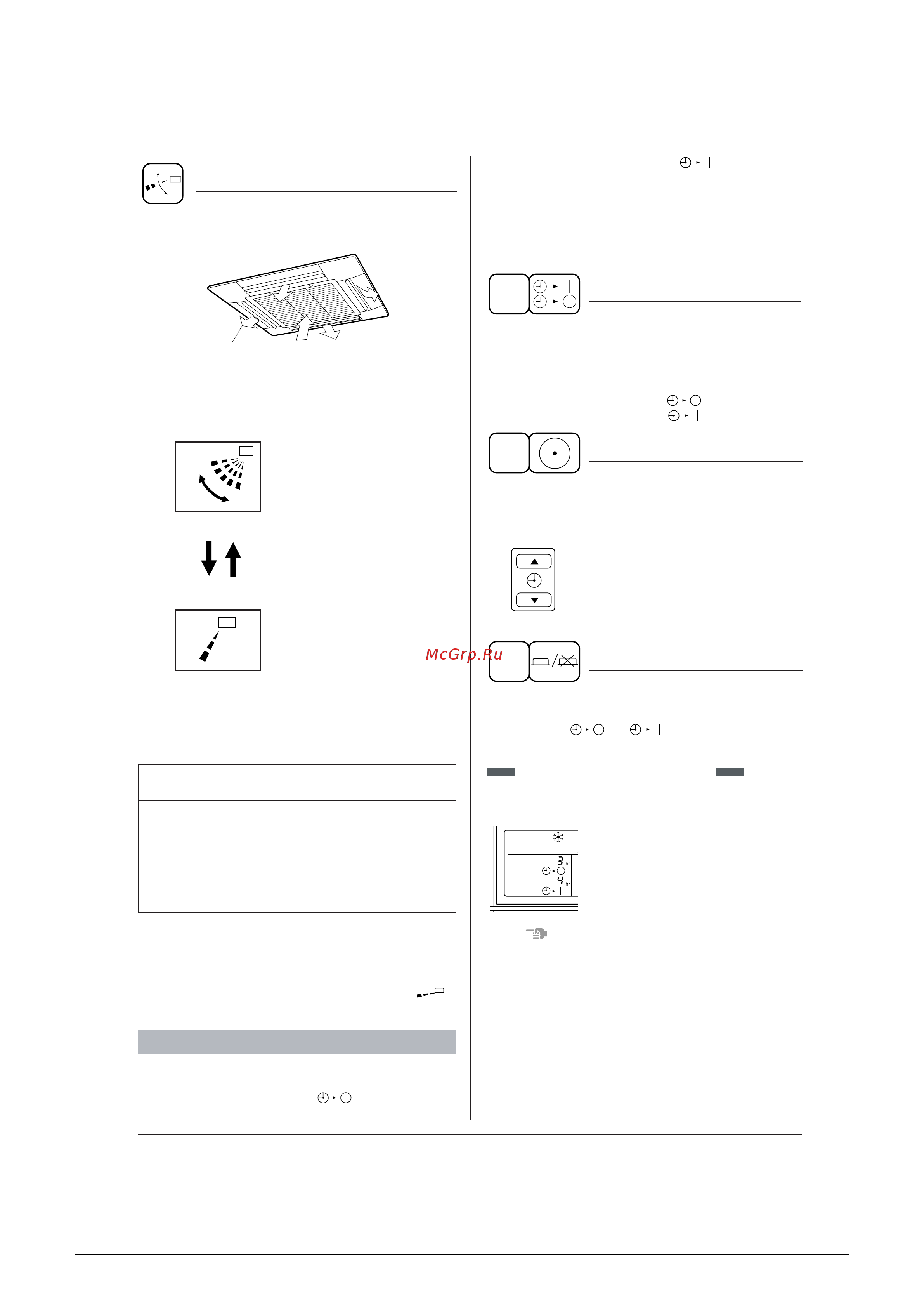

MOVEMENT OF THE AIR FLOW FLAP
Operation mode includes automatic operation.
ATTENTION:
Operate in the following order.
Press the TIMER ON/OFF button.
For example:
NOTE
Heating
PROGRAM TIMER OPERATION
AIR FLOW DIRECTION ADJUST
Up and down adjustment
swing
TIMER MODE START/STOP
1
PROGRAMMING TIME
2
TIMER ON/OFF
3
Refer to figure 4 on page [1]
Press the AIR FLOW DIRECTION ADJUST button
to adjust the air flow angle.
Press the AIR FLOW DIRECTION ADJUST
button to select the air direction as following.
The AIR FLOW FLAP display
swings as shown left and the
air flow direction continuously
varies. (Automatic swing
setting)
Press AIR FLOW DIRECTION
ADJUST button to select the air
direction of your choice.
The AIR FLOW FLAP display
stops swinging and the air
flow direction is fixed (Fixed
air flow direction setting).
For the following conditions, micro computer
controls the air flow direction so it may be different
from the display.
Operation
mode
Operation
condition
• The timer is operated in the following two ways.
Programming the stop time ( ) .... The system
stops operating after the set time has elapsed.
Programming the start time ( ) .... The
system starts operating after the set time has
elapsed.
• The timer can be programmed a maximum of
72 hours.
• The start and the stop time can be
simultaneously programmed.
Press the TIMER MODE S
TART/STOP
but
ton several times and select the mode
on the display.
Press the PROGRAMMING TIME button and
set the time for stopping or starting the
system.
When this button is pressed, the time
advances by 1 hour.
When this button is pressed, the time
goes backward by 1 hour.
The timer setting procedure ends.
The display “ or ” changes from
flashing light to a constant light.
When the timer is programmed to
stop the system after 3 hours and
start the system after 4 hours, the
system will stop after 3 hours and
then 1 hour later the system will
start.
The display flashes.
For setting the timer stop ... “ ”
For setting the timer start ... “ ”
• The movable limit of the flap is changeable.
Contact your Daikin dealer for details.
• When starting operation
• When room temperature is higher
than the set temperature
• At defrost operation
(Air is blown hor
izontally to prevent
the cool air fro
m being blown
directly onto an
yone in the room.)
• When setting the timer Off and On at the same
time, repeat the abov
e procedure from 1 to 3
once again.
• After the timer is programmed, the disp
lay shows
the remaining time.
• Press the TIMER ON/OFF b
utton once again to
cancel p
rogramming
.
The display vanishes.
• The mo
vable limit of the flap is changeable.
Con
tact your Daikin
dealer for details.
• Avoid operating
in the horizontal direction
“ ”
which may cause dew or dust to settle on ceiling.
