Si12-308 Outdoor Unit (52 / 58 / 68 / 75 Class)
Removal Procedure 251

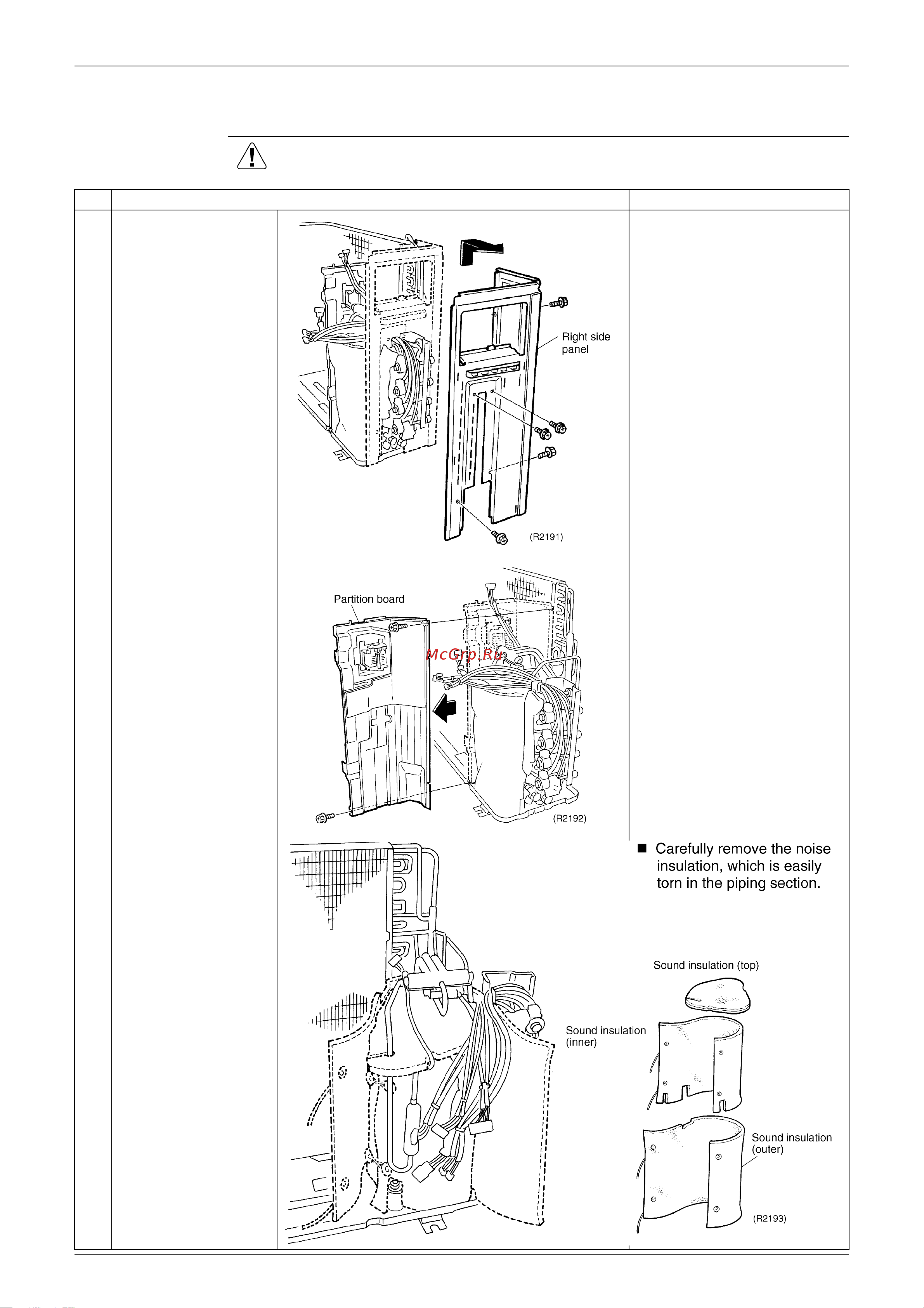

2.5 Removal of Sound Insulation
Procedure Warning Be sure to wait 10 minutes or more after turning off all power supplies
before disassembling work.
Step
Procedure Points
1
Remove 5 screws of
the right side panel.
2
Remove 2 screws of
the partition board, and
remove the board.
3
Remove the noise
insulation (top, outer
and inner).
