Si06-305 Indoor Unit
Removal Procedure 119
4

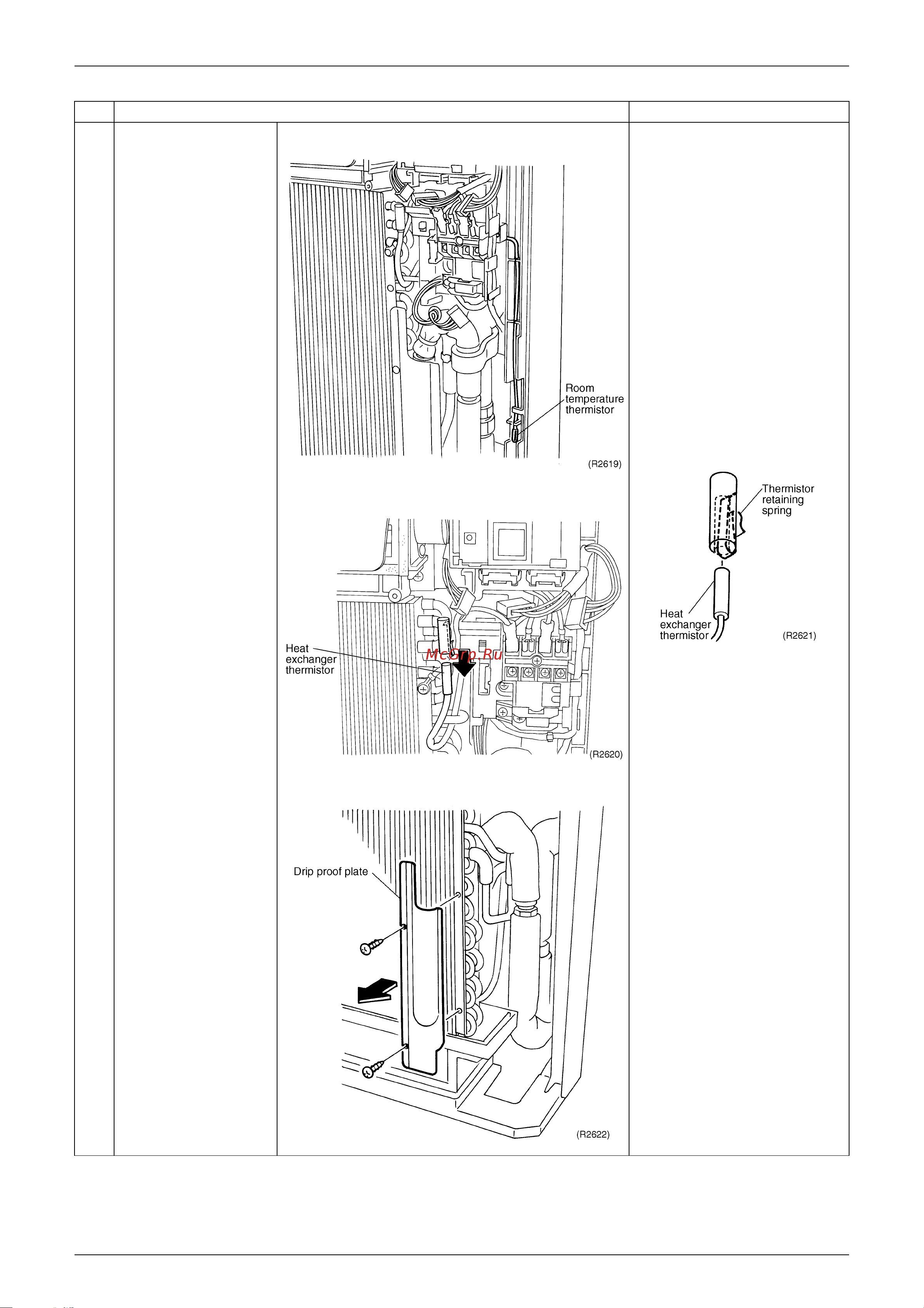

Remove the room
temperature thermistor.
5
Remove the heat
exchanger thermistor.
Be sure not to drop the
thermistor retaining spring
6
Dismount the two
screws to remove the
drip proof plate.
Mounting screw M4 × 8
Step Procedure Points
