Printed Circuit Board Connector Wiring Diagram Si06-305
8 Printed Circuit Board Connector Wiring Diagram
1. Printed Circuit Board Connector Wiring Diagram
1.1 FVKS 25/35 B, FVXS 25/35 B Series
Name of Connector
Note: Other Designations

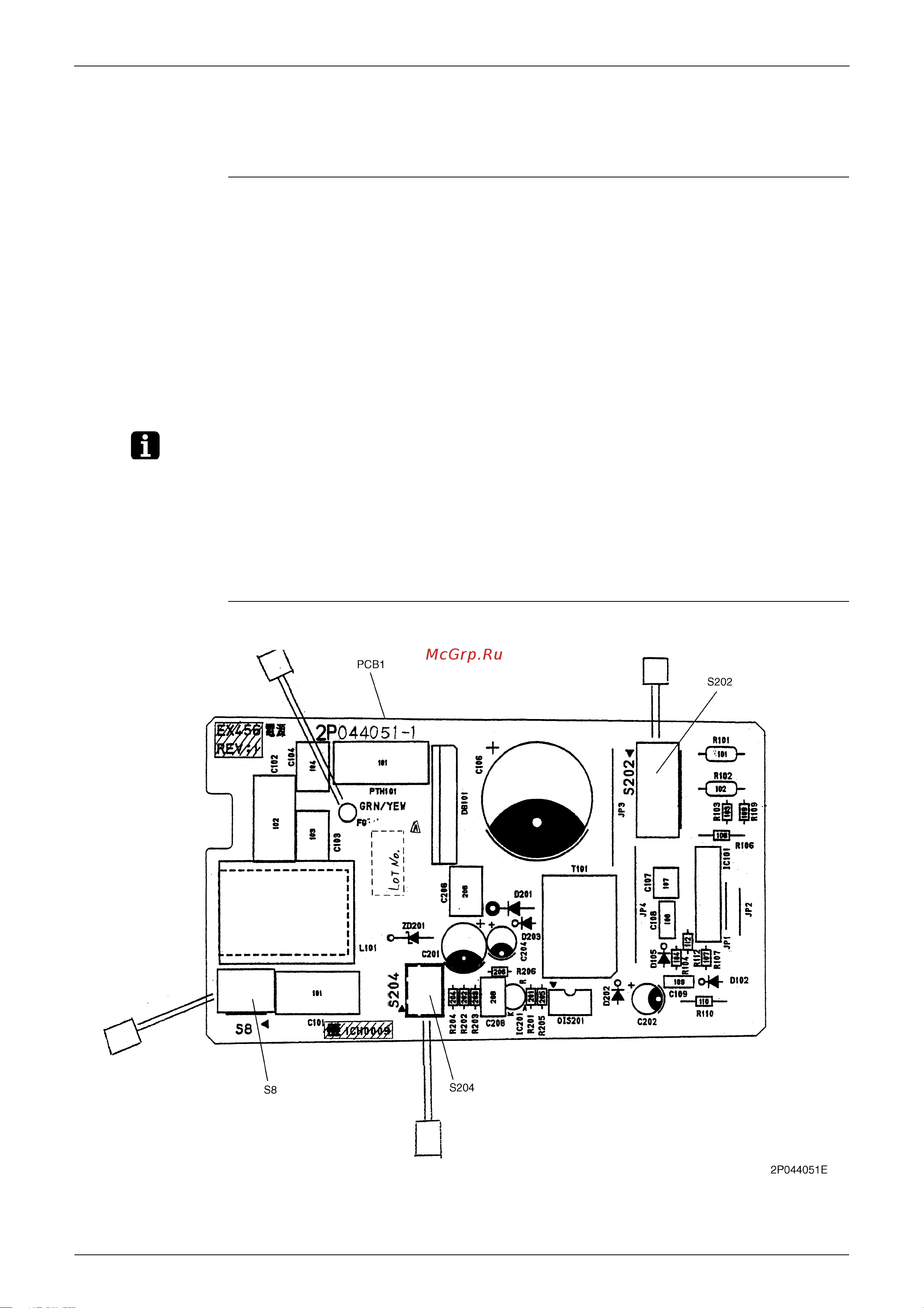

Printed Circuit Board (1) (Power Supply PCB)
1) S6 Connector for swing motor and lower air outlet motor
2) S23 Connector for signal receiver
3) S31, S32 Connector for room temp / heat exchanger thermistor
4) S201, S203,
S7, S24, S26
Connector for control PCB (1)
5) S202, S204,
S8
Connector for control PCB (2)
6) S25 Connector for display PCB (3)
7) S301, S302 Connector for fan motors
1) V1 Varistor
2) FU FUSE
3) LED11 LED for operation
4) LED12 LED for timer
5) LED14 LED for Home Leave Operation
